ECM Location & ECM Connectors Identification

NOTE: Engine Control Module (ECM), can also be referred to as Powertrain Control Module (PCM).

Engine Control Module (ECM) is located forward of center console, under dash. See Fig 1 and Fig 2 .

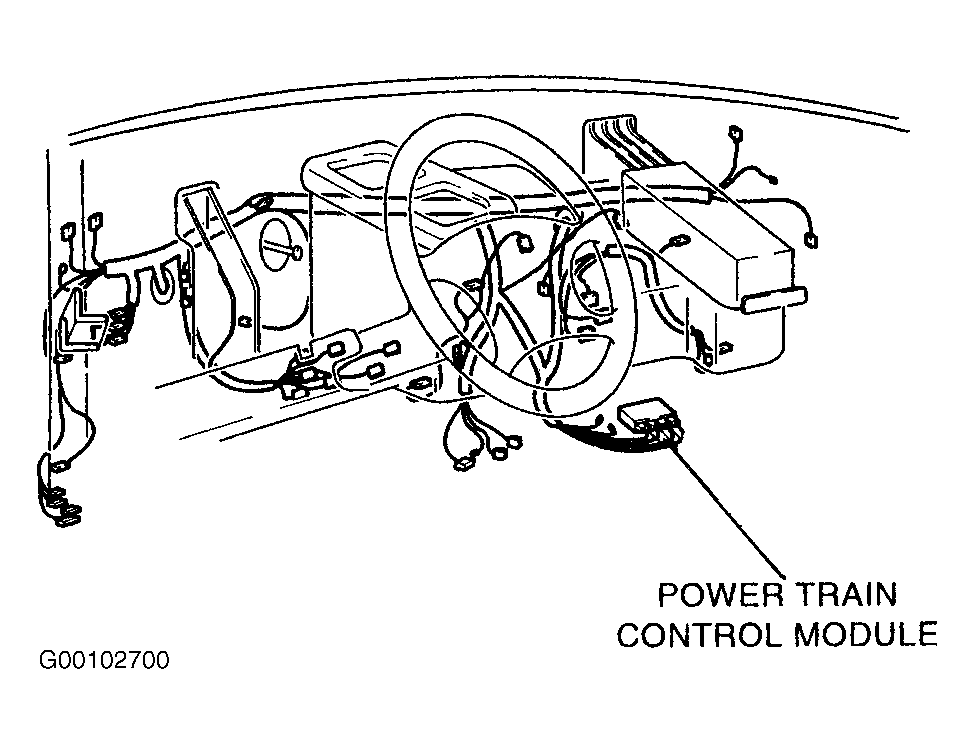

Fig 1: Locating Engine Control Module

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Engine Control Module Connector & Terminals

Courtesy of KIA MOTORS AMERICA, INC.
