Throttle Position Sensor Output Feature

WARNING: This page is about a different car, the 2004 Kia Amanti. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: 1. TPS #2 (SUB) for ECU: Gradient 100% / 105° 2. TPS #1 (MAIN) for ETS: Gradient 100% / 105°1.

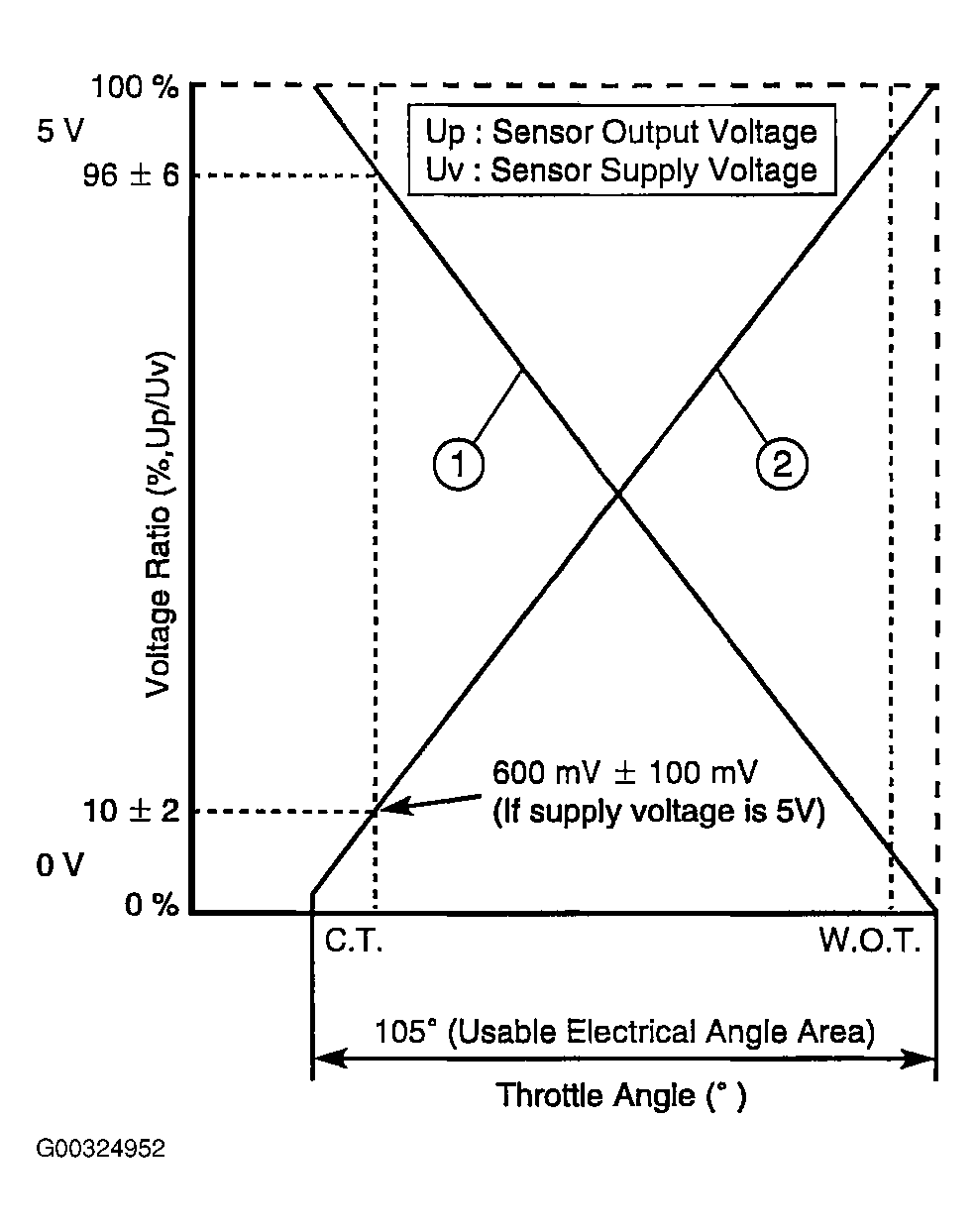

Fig 1: Illustrating Throttle Angle-To-Voltage Ratio Graph

Courtesy of KIA MOTORS AMERICA, INC.
