Removal & Installation: Notes

For an exploded view of the front suspension, see Fig 1 .

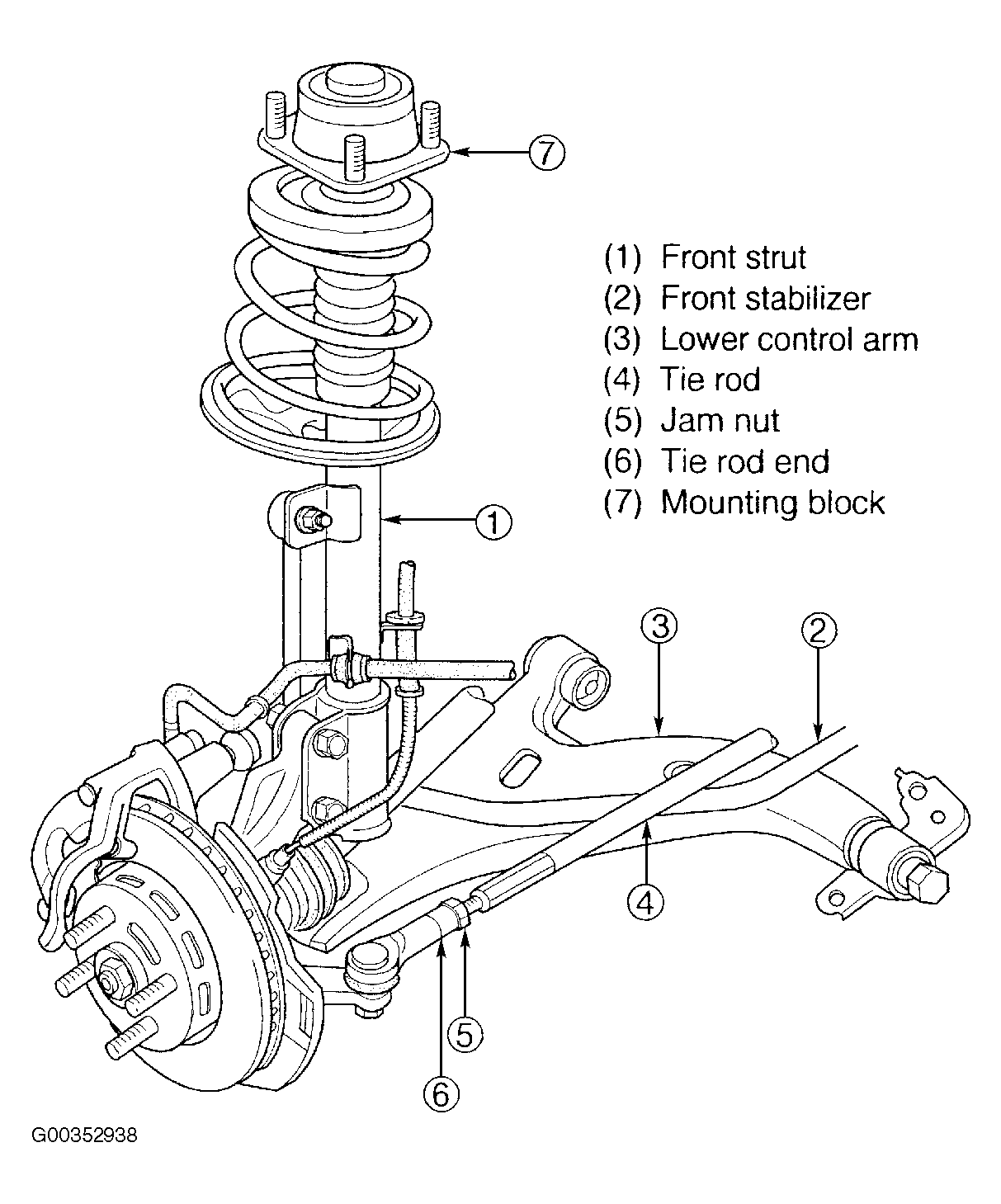

Fig 1: Exploded View Of Front Suspension
G00352938Courtesy of KIA MOTORS AMERICA, INC.
