Transaxle Control Module

NOTE: No removal and installation procedure was provided by manufacturer. TCM is located under left side of the instrument panel. For location view, see Fig 1.

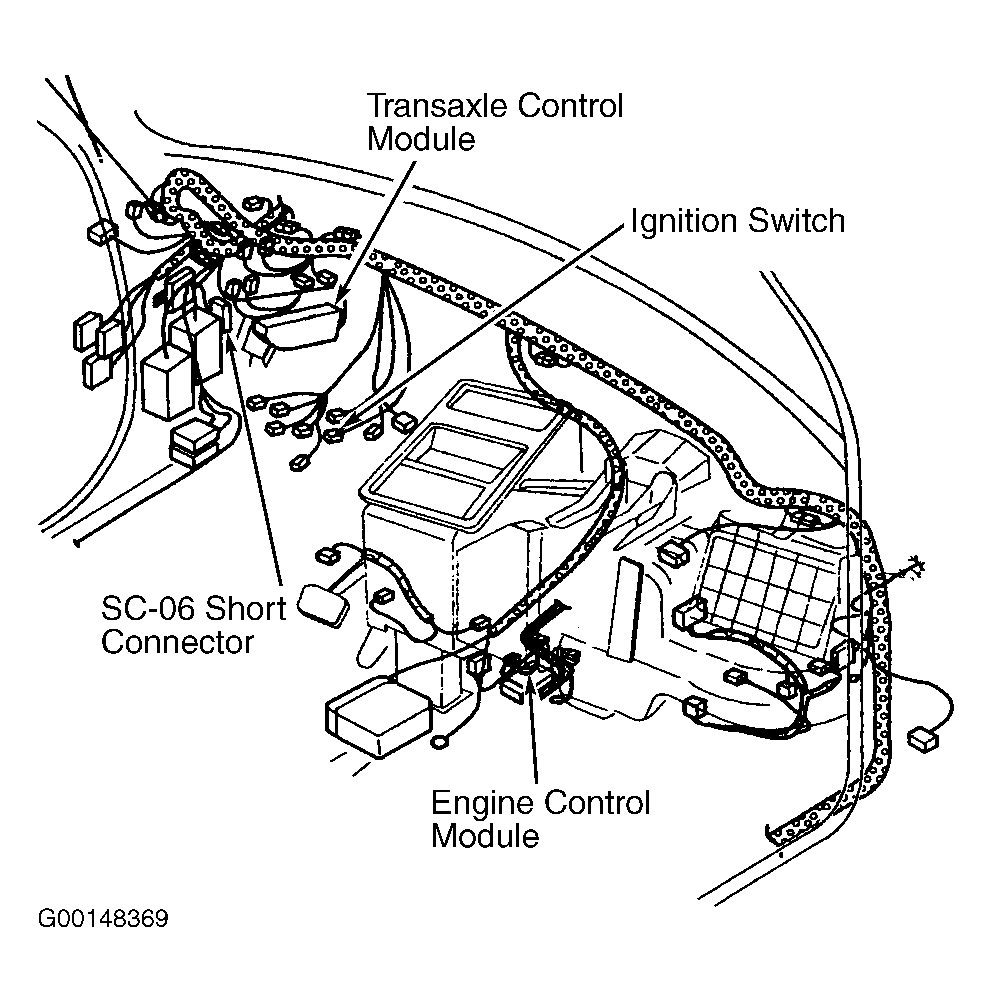

Fig 1: Locating Transaxle Control Module

Courtesy of KIA MOTORS AMERICA, INC.
