Cooling System: Radiator: Installation

  1. Install cooling fan assembly and condenser fan assembly.
  2. Install radiator assembly into engine compartment.
  3. Connect lower radiator hose.
  4. Connect ATF inlet and outlet pipes.

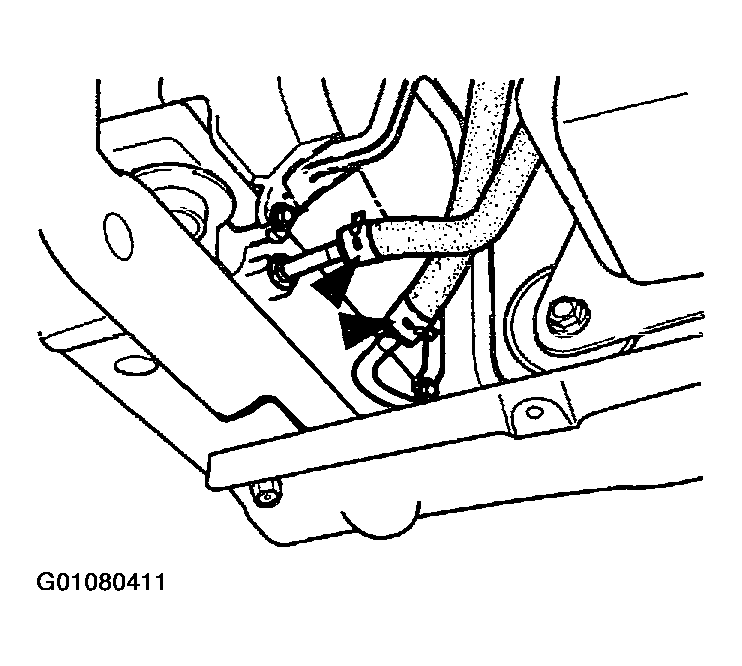

    Fig 1: Connecting ATF Inlet And Outlet Pipes
    G01080411Courtesy of KIA MOTORS AMERICA, INC.
  5. Install radiator brackets.
  6. Connect coolant reservoir hose.
  7. Connect condenser fan motor connector.
  8. Connect cooling fan motor connector.
  9. Connect upper radiator hose.
  10. Install fresh air duct.

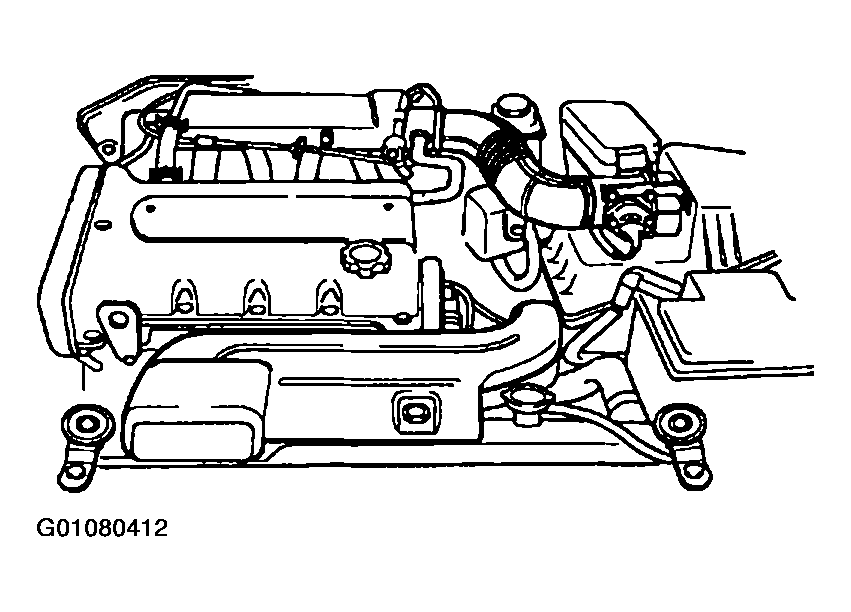

    Fig 2: Installing Fresh Air Duct
    G01080412Courtesy of KIA MOTORS AMERICA, INC.
  11. Connect negative battery cable.
    Fig 3: Connecting Negative Battery Cable
    G01080413Courtesy of KIA MOTORS AMERICA, INC.
  12. Fill engine coolant. See ENGINE COOLANT .
    Fig 4: Filling Engine Coolant
    G01080414Courtesy of KIA MOTORS AMERICA, INC.
  13. Start engine and check for leaks.
