Clutch Cover And Disc: Component

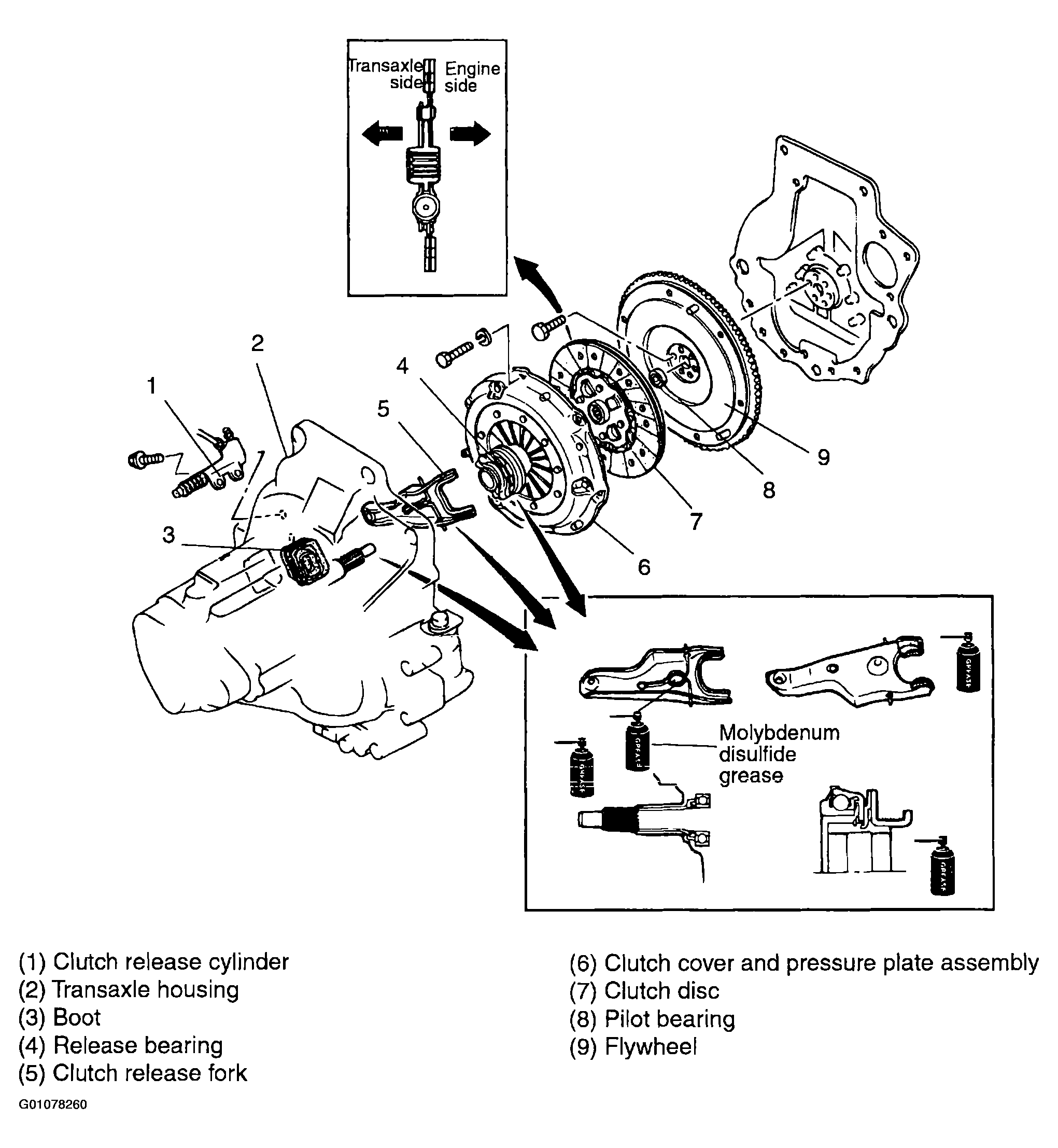

Fig 1: Illustrating Clutch Cover And Disc Components

Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

1. Remove clutch release cylinder with clutch line connected.
2. Do not  remove pilot bearing unless necessary.
