Structural View
Structural View

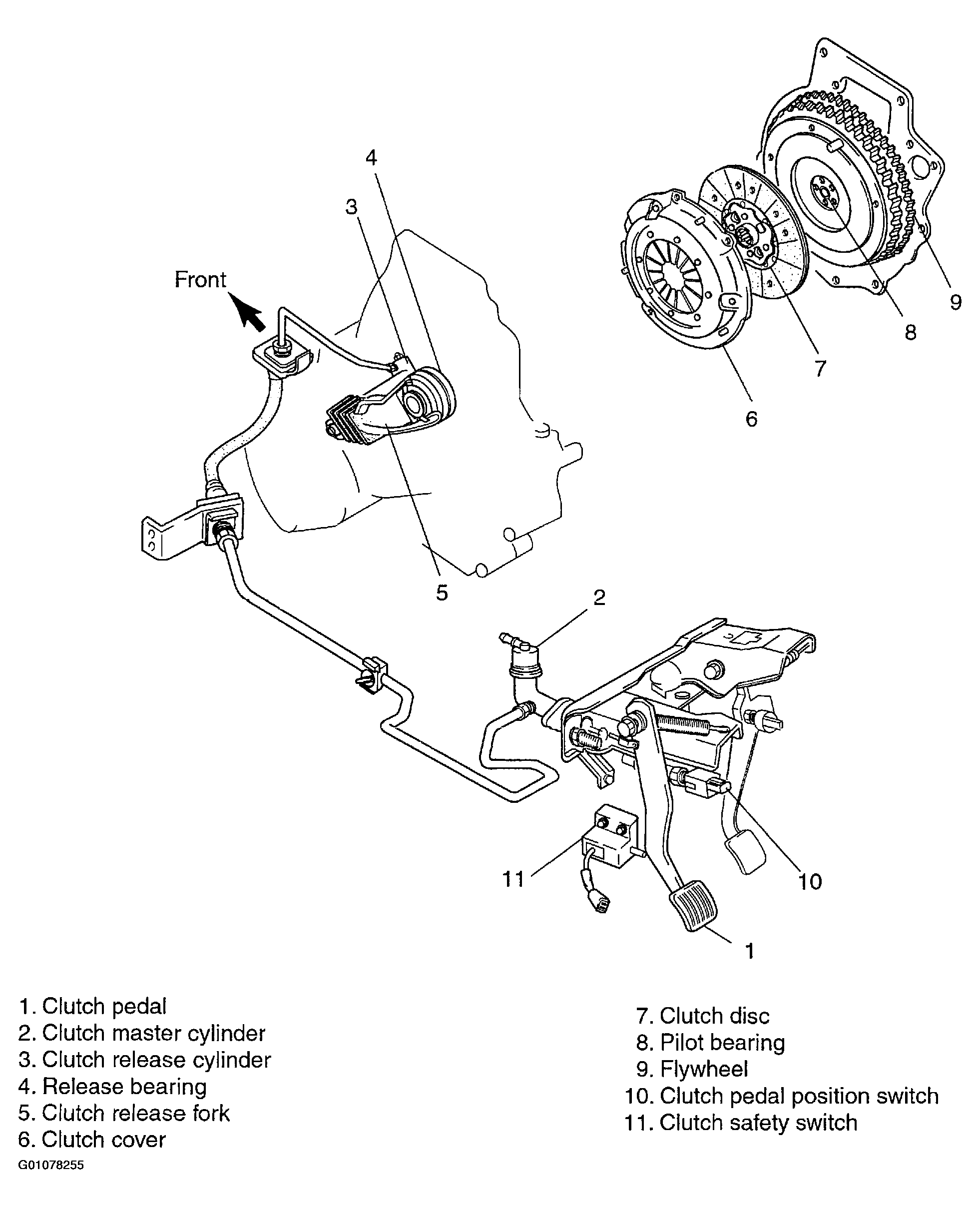

Fig 1: Clutch System Structural View
Courtesy of KIA MOTORS AMERICA, INC.
