Clutch Housing And Transaxle Case Components: Notes

CAUTION: Do not remove an oil seal if not necessary.

Disassemble in order on figure. Refer to DISASSEMBLY NOTE .
Assembly will be in reverse order of disassembly.

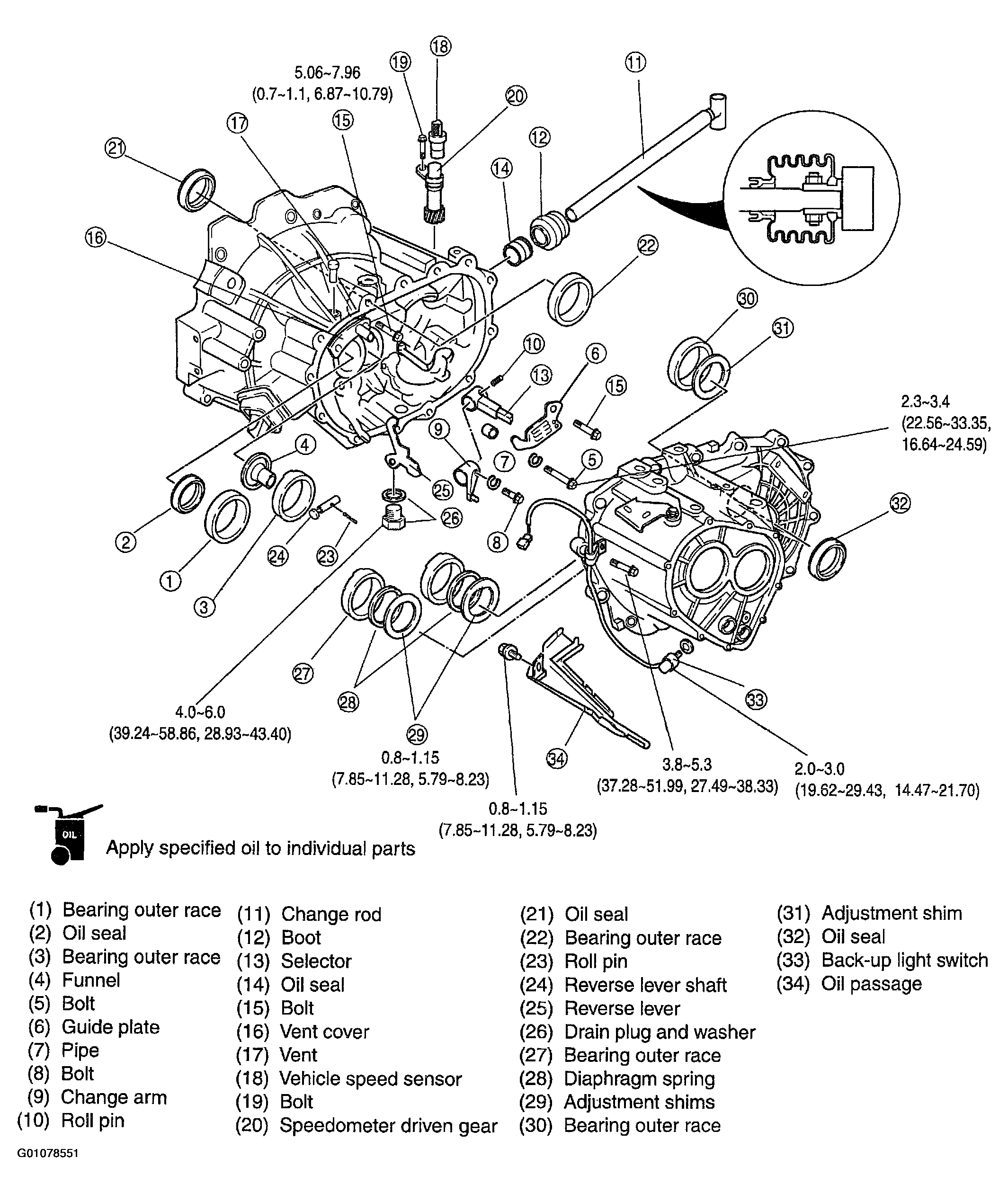

Fig 1: Illustrating Clutch Housing And Transaxle Case Components
Courtesy of KIA MOTORS AMERICA, INC.
