Shift Mechanism: Overhaul

Disassemble in the order shown in the figure.
Inspect all parts and repair or replace as necessary.
Assemble in the reverse order of disassembly. Refer to Assembly note.

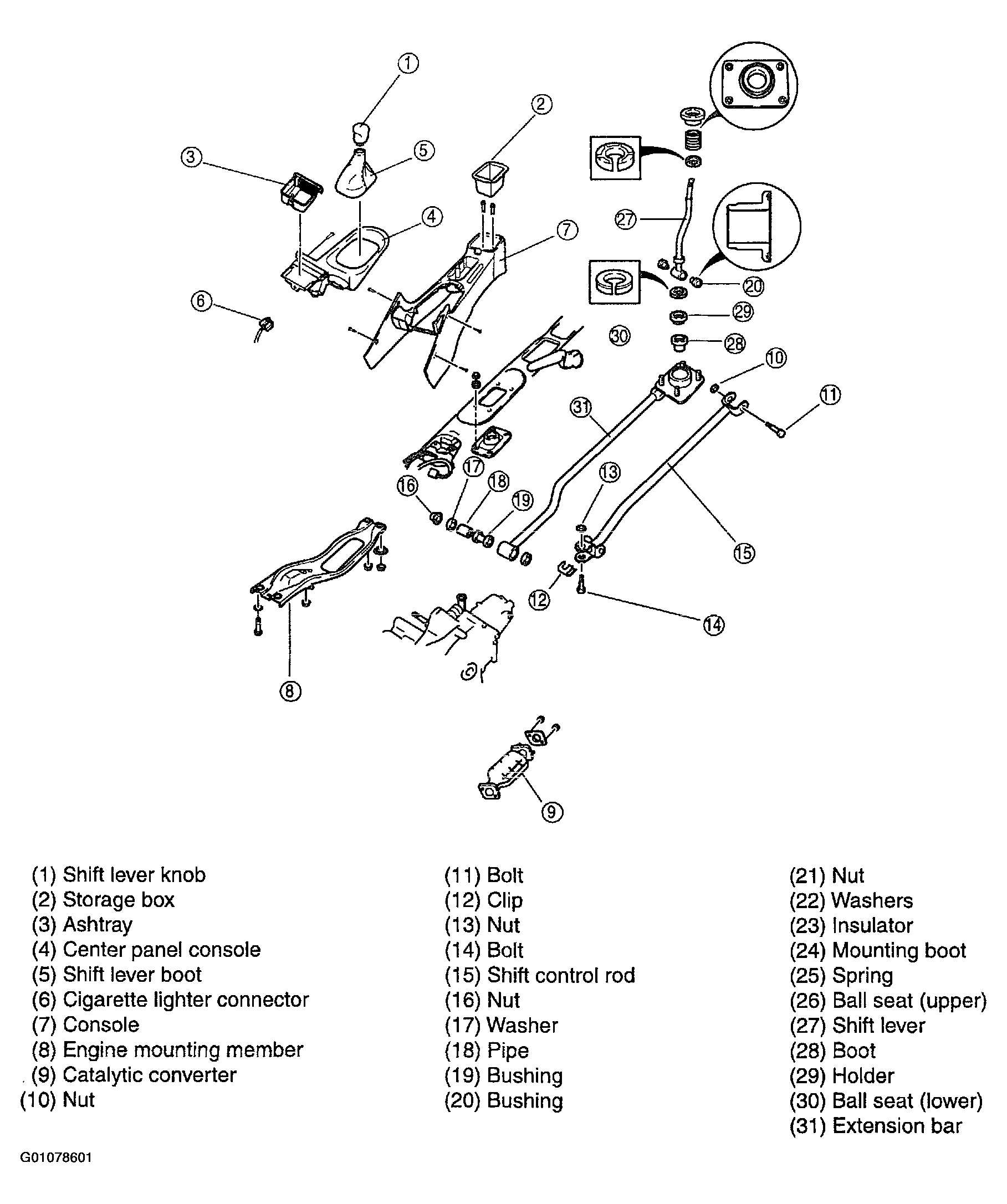

Fig 1: Illustrating Manual Transaxle Shift Control Components
Courtesy of KIA MOTORS AMERICA, INC.
