Clutch System: Troubleshooting

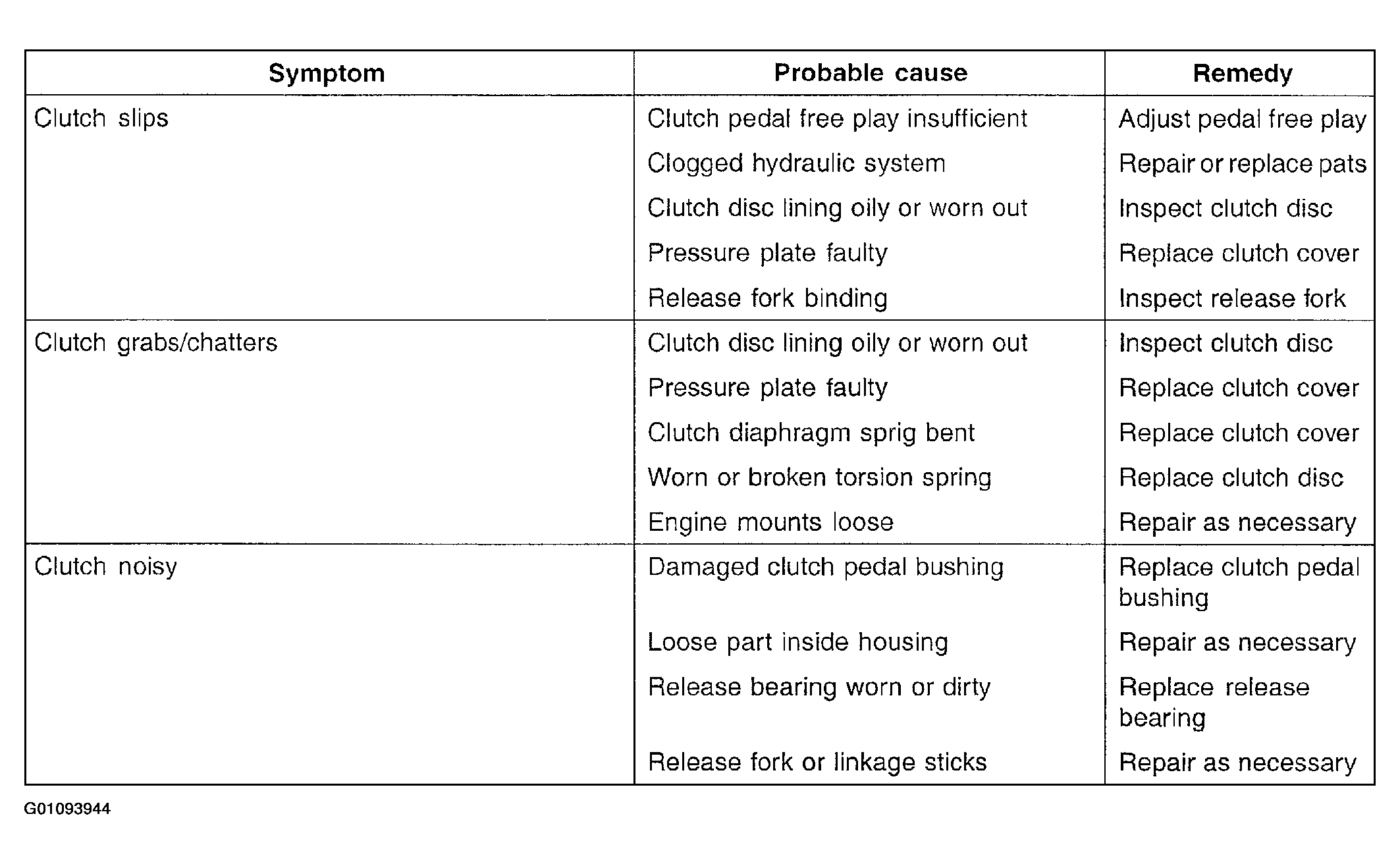

Fig 1: Troubleshooting Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

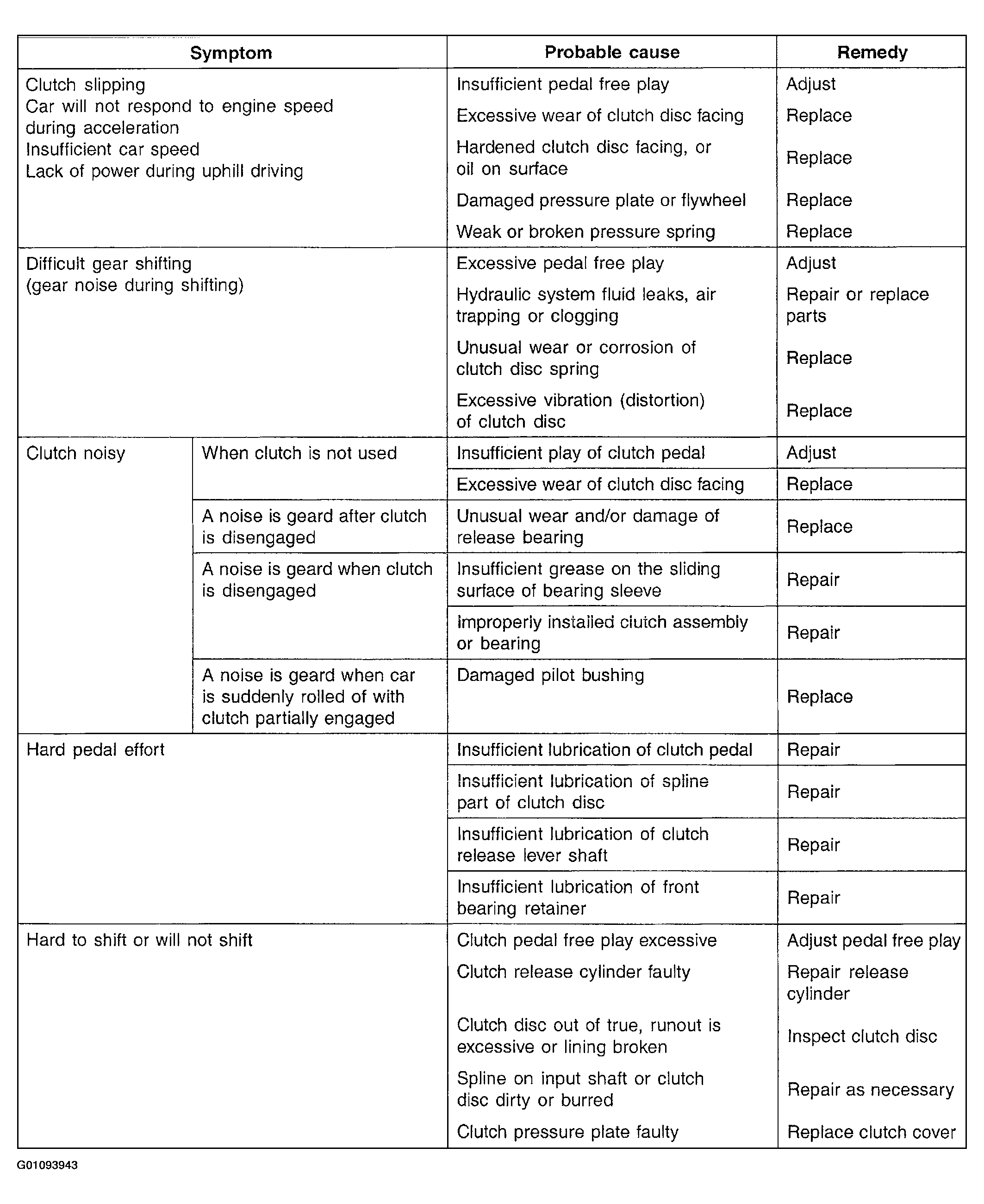

Fig 2: Troubleshooting Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
