Disassembly & Reassembly: Components

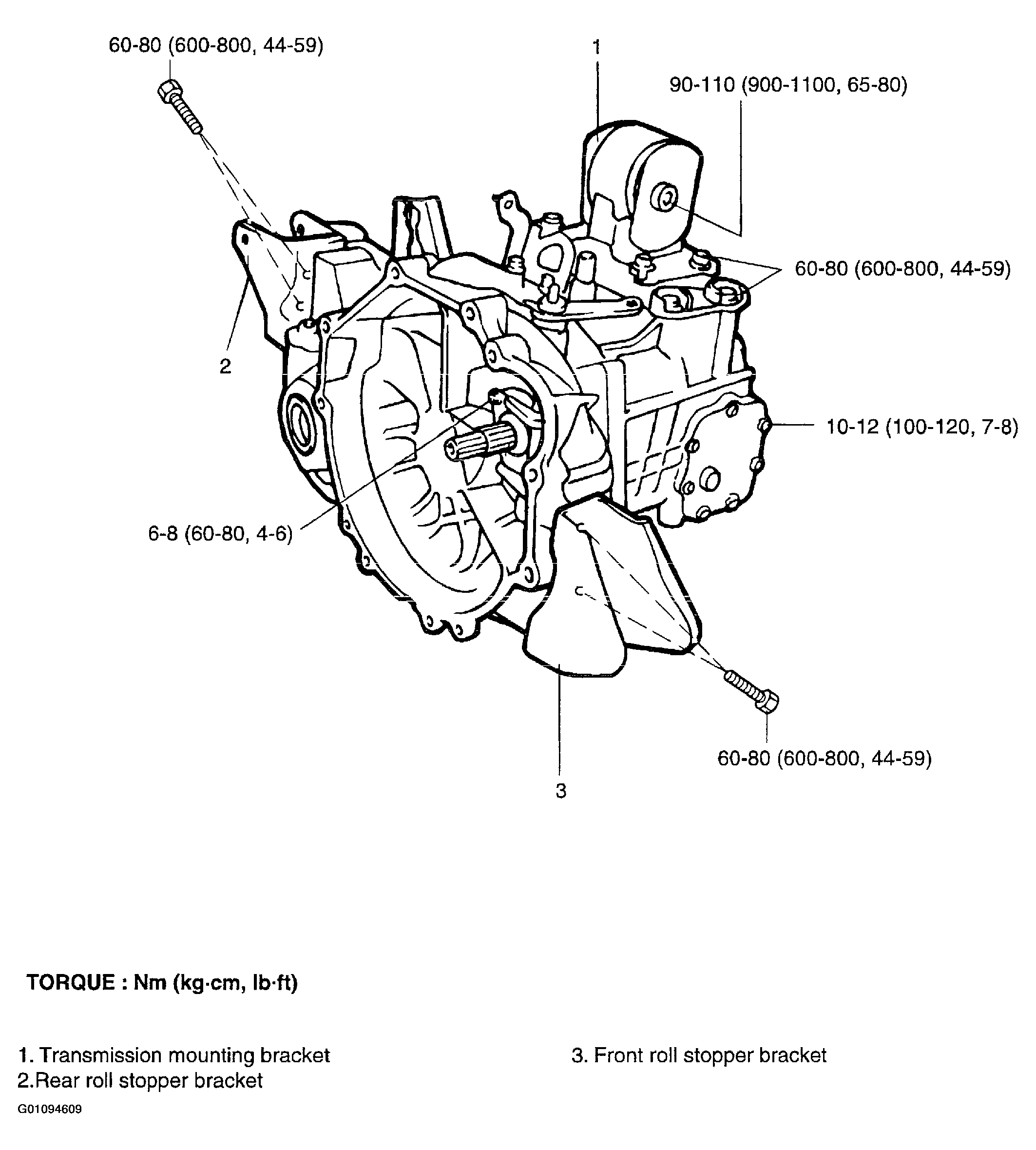

Fig 1: Illustrating Mounting Components

Courtesy of KIA MOTORS AMERICA, INC.

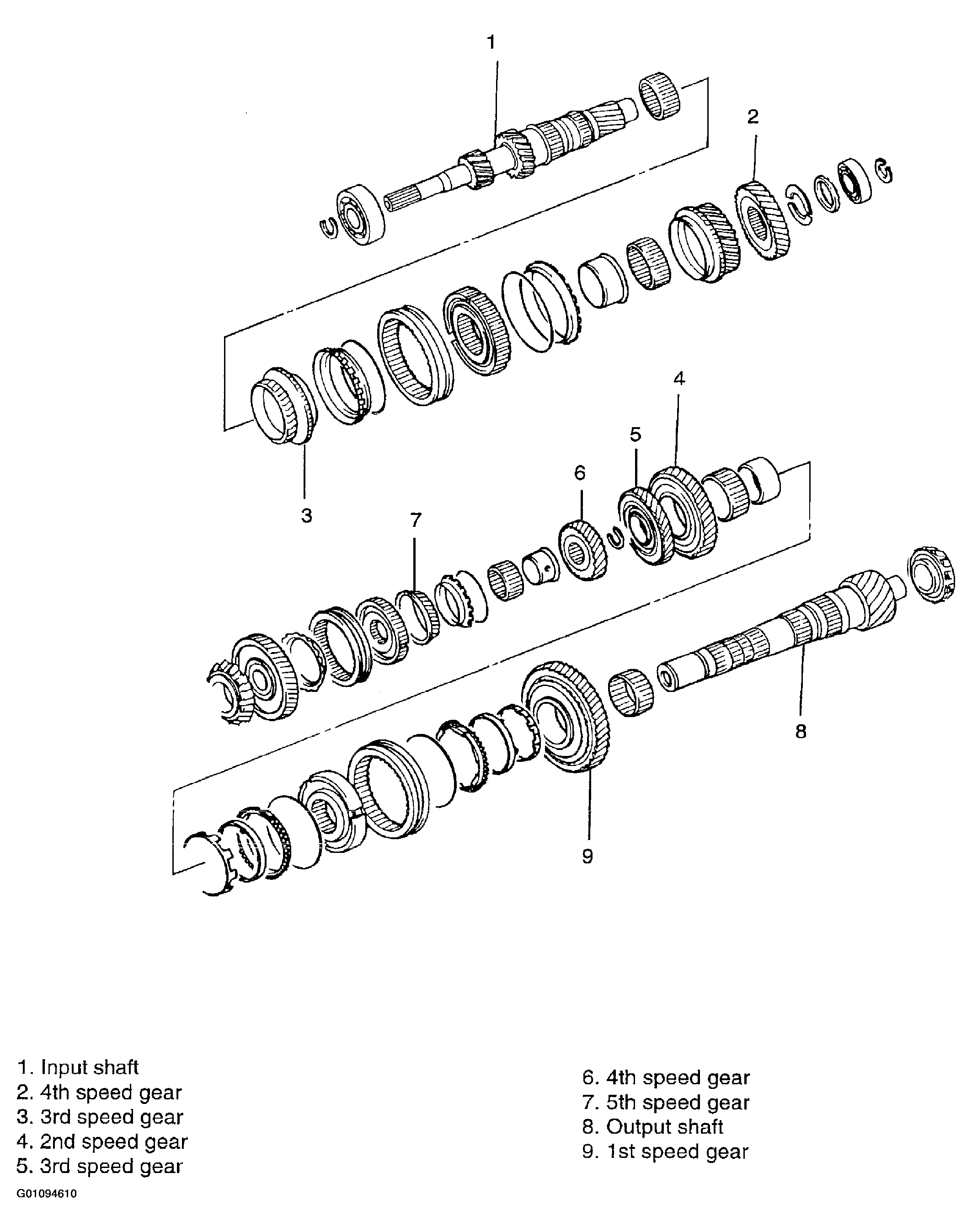

Fig 2: Illustrating Input/Output Shaft Components

Courtesy of KIA MOTORS AMERICA, INC.
