Steering Column/Shaft: Troubleshooting

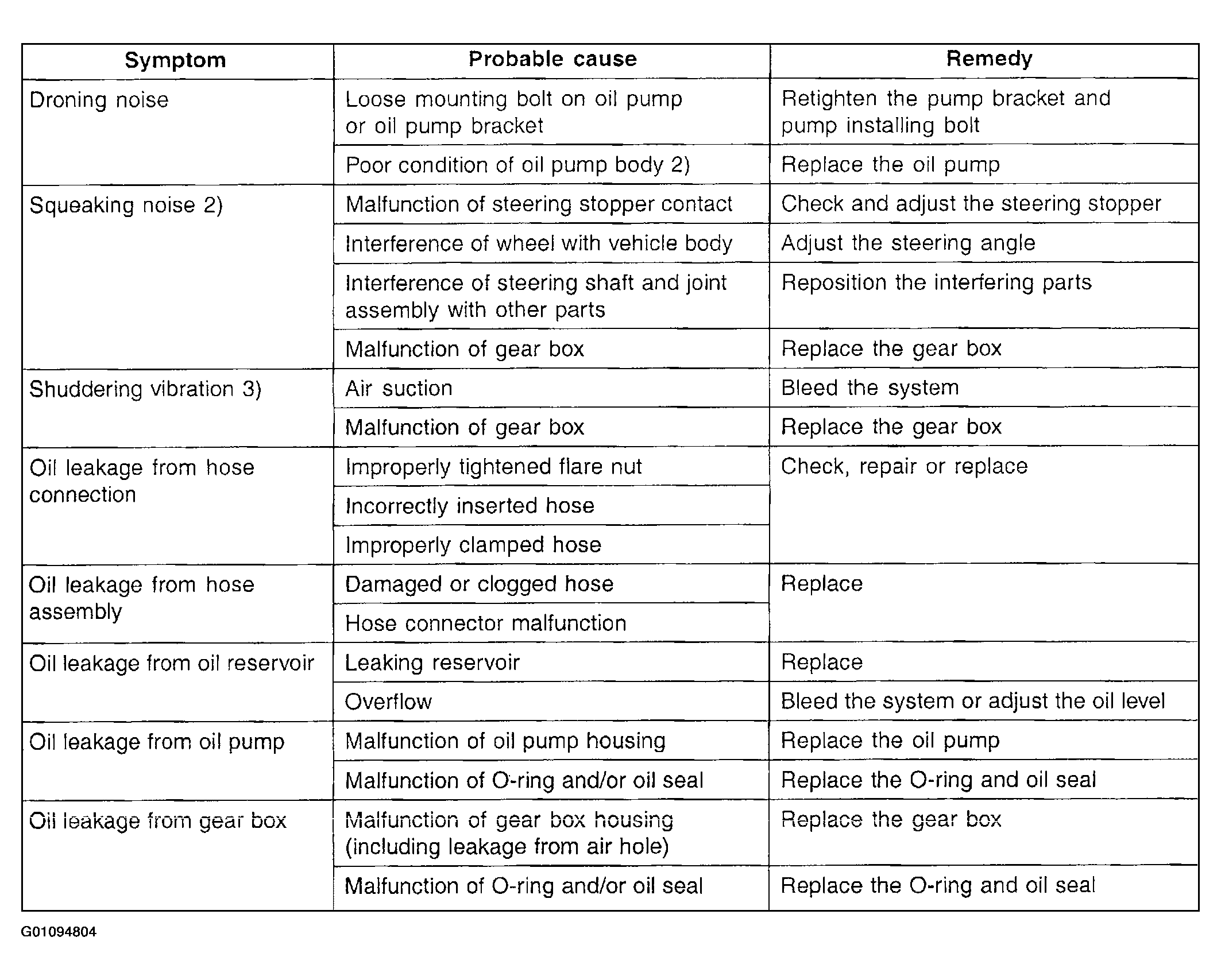

Fig 1: Troubleshooting Steering System (1 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

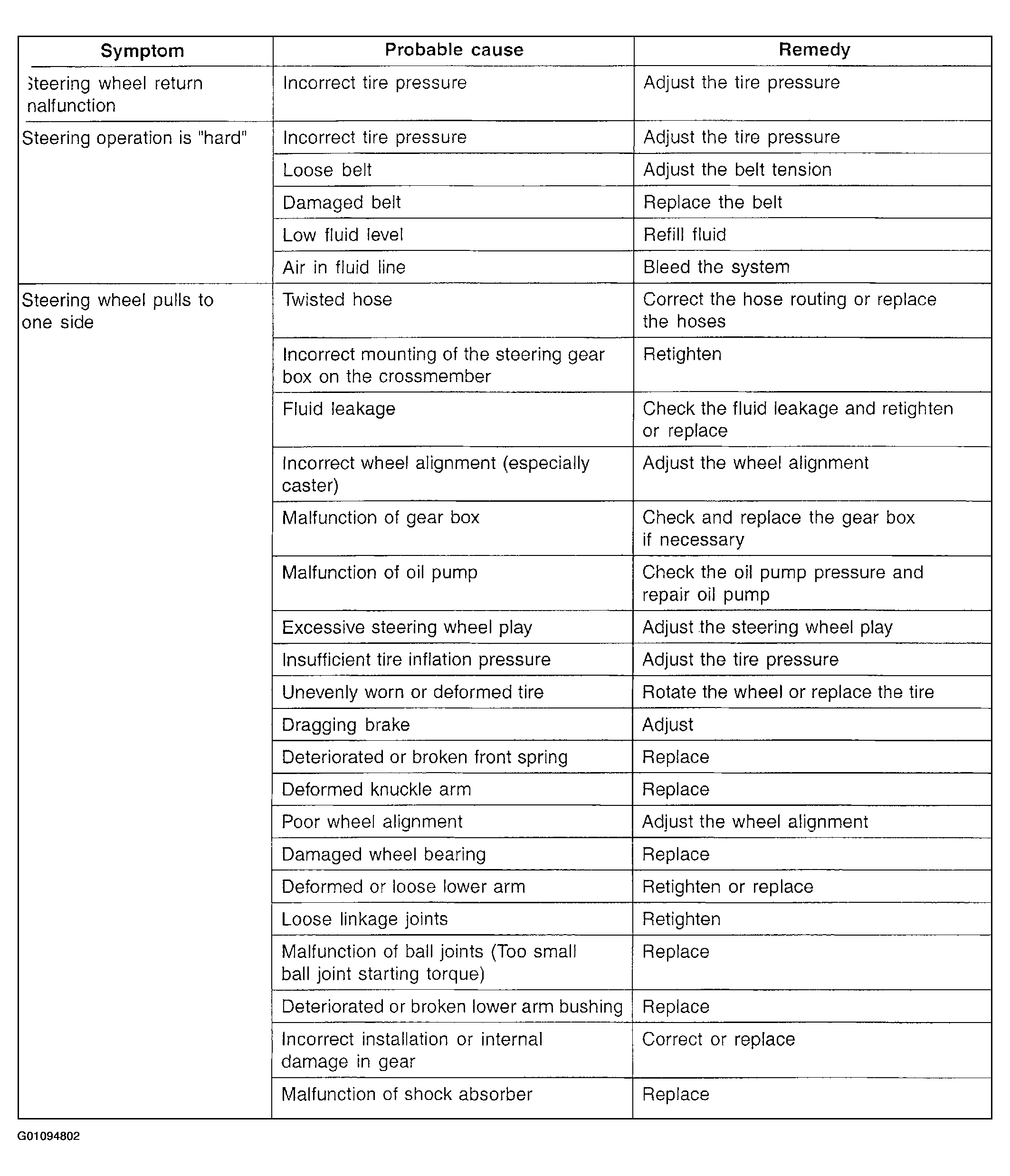

Fig 2: Troubleshooting Steering System (2 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.

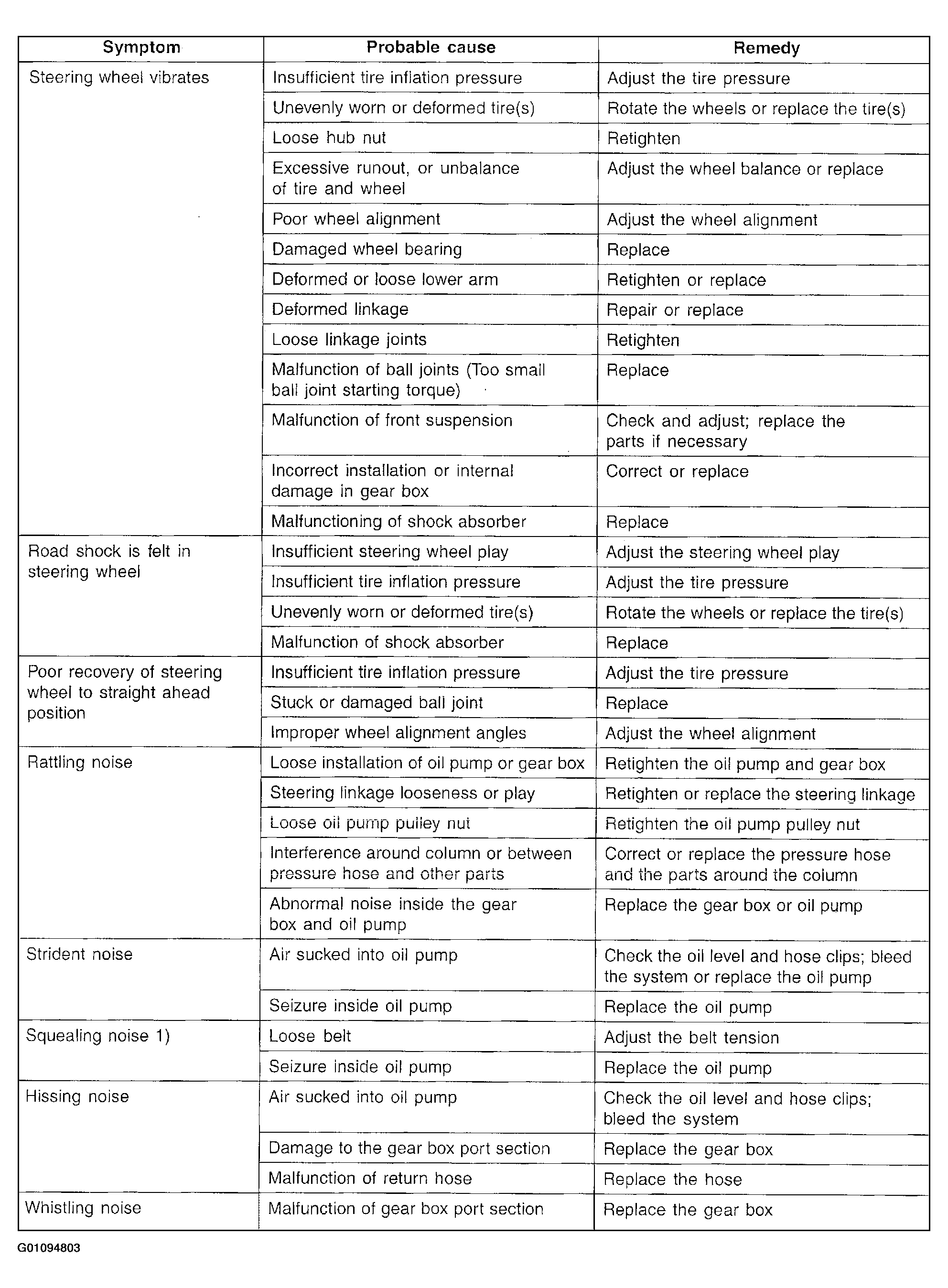

Fig 3: Troubleshooting Steering System (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
