Kia
›
2003
›
Optima SE, 2.4 6
›
Repair and Diagnosis
›
Suspension
›
Front Suspension
›
General
›
Specifications
›
Front Suspension System
Front Suspension System

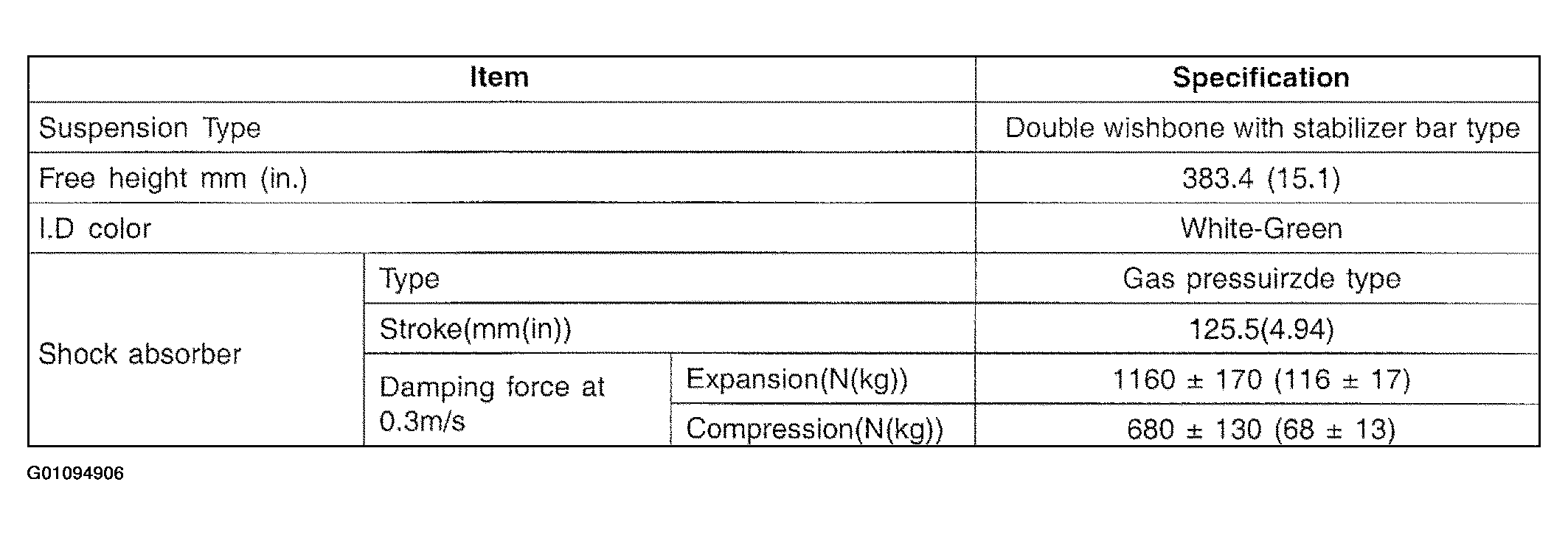

Fig 1: Identifying Front Suspension Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
