Home › Kia › 2003 › Optima SE, 2.7 8 › Repair and Diagnosis › Engine Mechanical › Lubrication System › 2.7L V6 Engine › Intake And Exhaust System › Surge Tank › Components

Surge Tank: Components

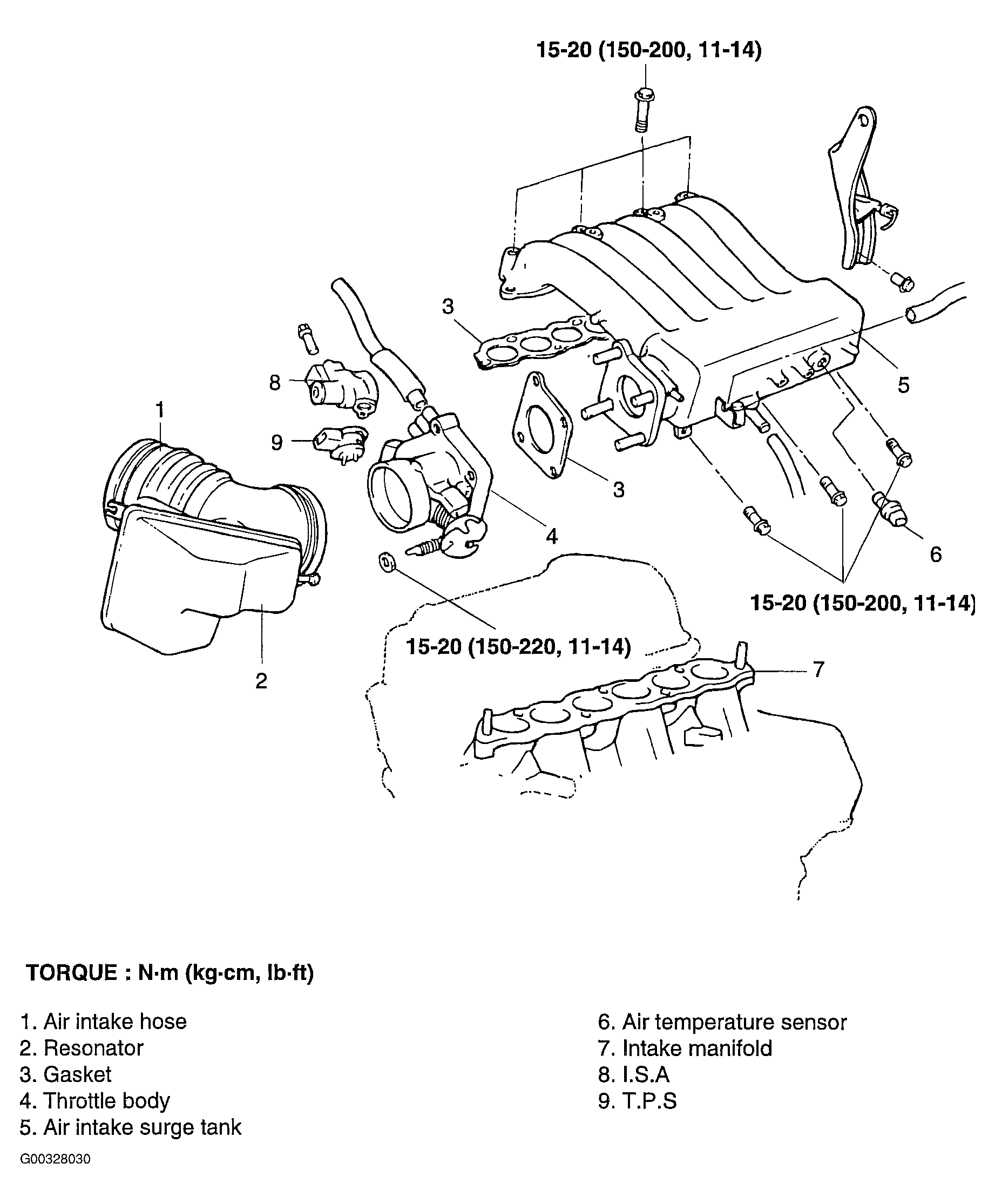

Fig 1: Removing & Installing Surge Tank
G00328030Courtesy of KIA MOTORS AMERICA, INC.
