Electronic Time And Alarm Control Module
›
ETACS Pin No. And Description
ETACS Pin No. And Description

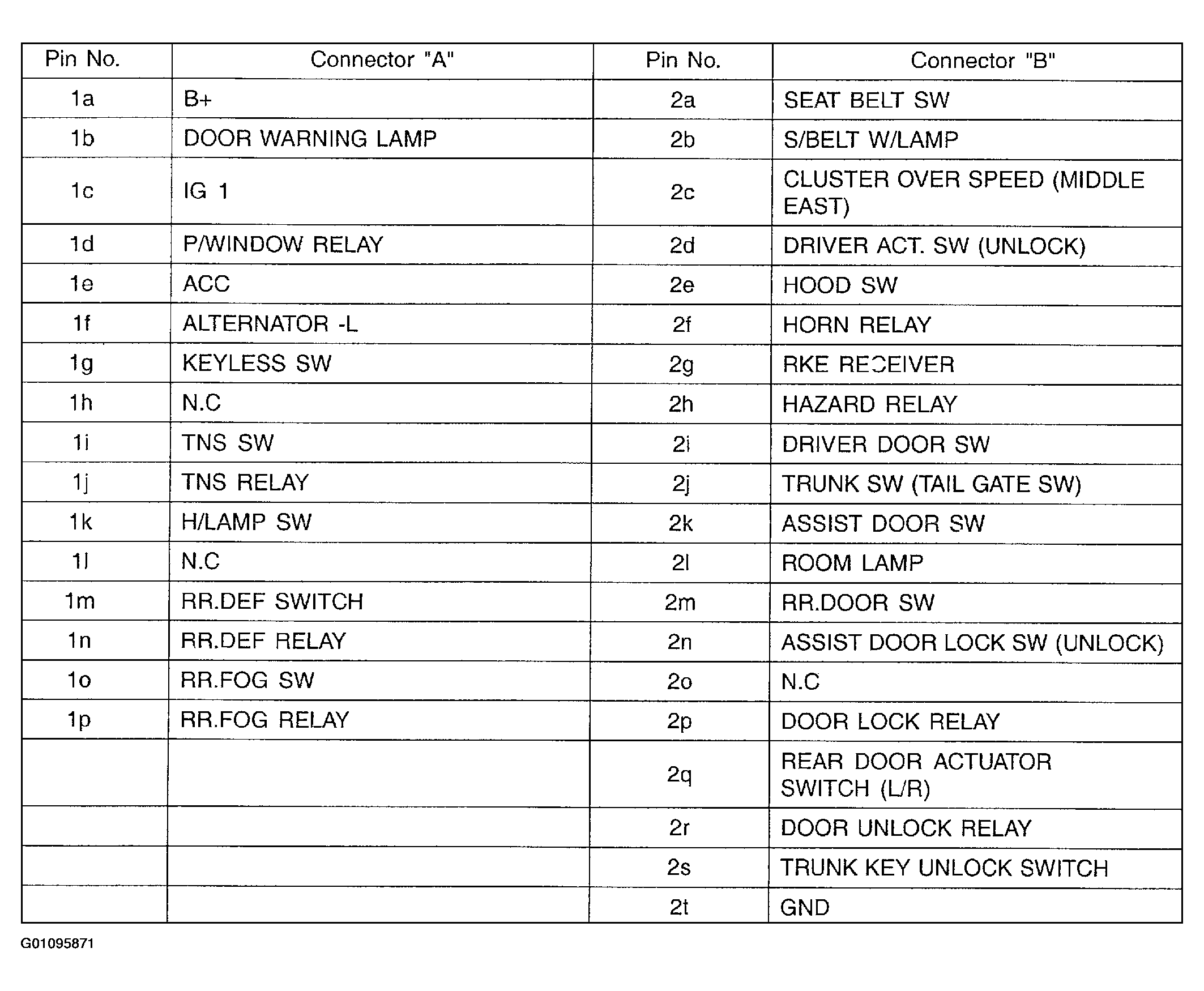

Fig 1: ETACS Connector Pinout (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

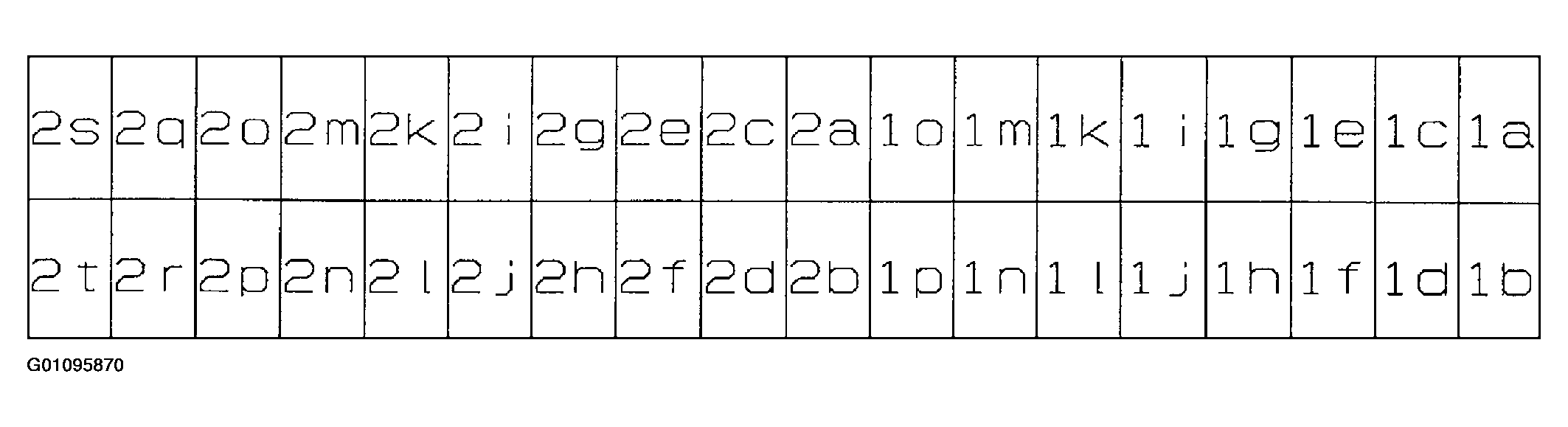

Fig 2: ETACS Connector Pinout (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
