Parking Brake System: Component

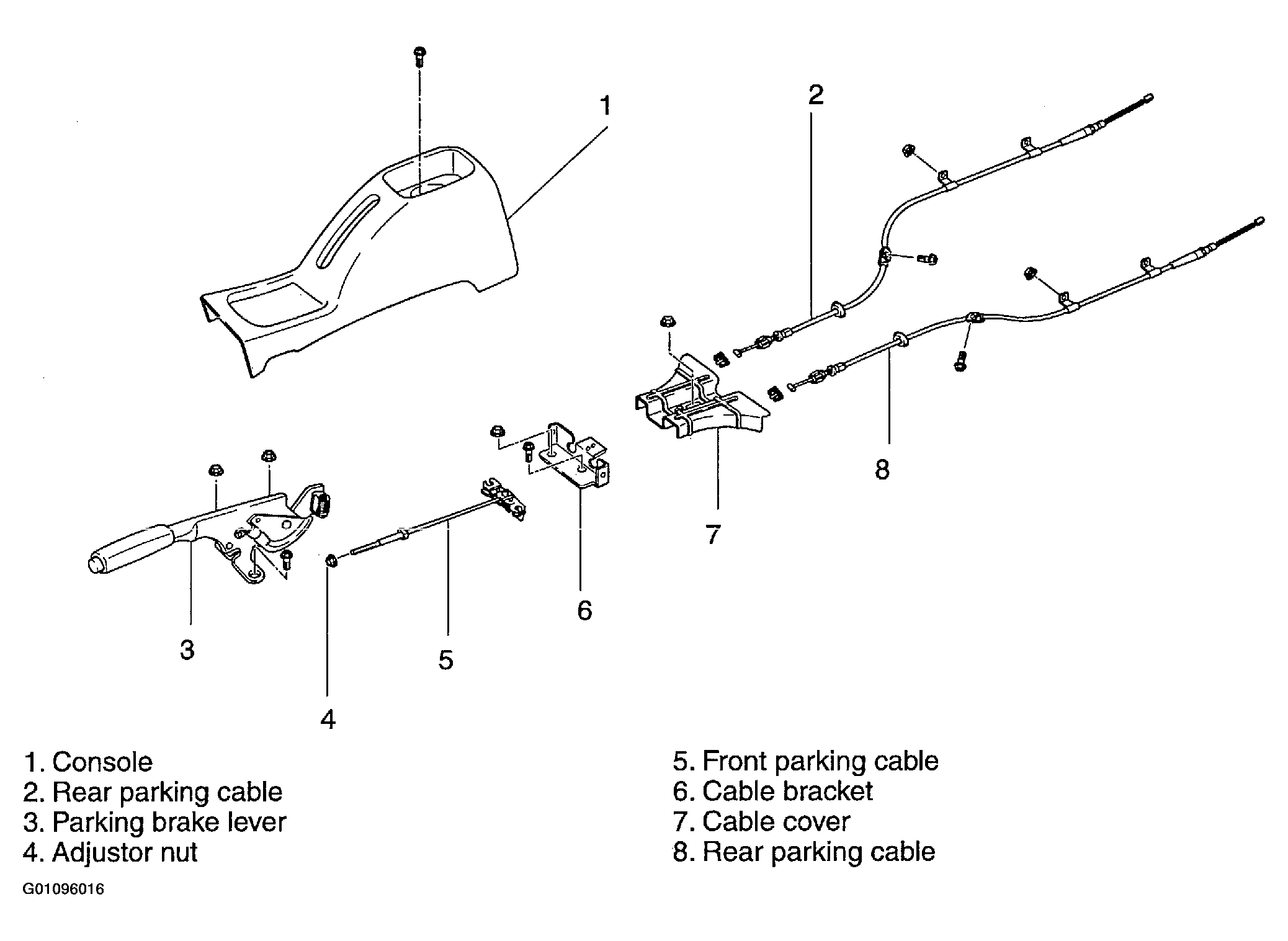

Fig 1: Identifying Parking Brake Components

G01096016

Courtesy of KIA MOTORS AMERICA, INC.
