Speed Sensor Operation

Since teeth of sensor rotor change magnetic field of sensor, it generates alternative voltage. This voltage is proportional to rotating speed and its period can be changed. It can sense speed of wheel by detecting period.

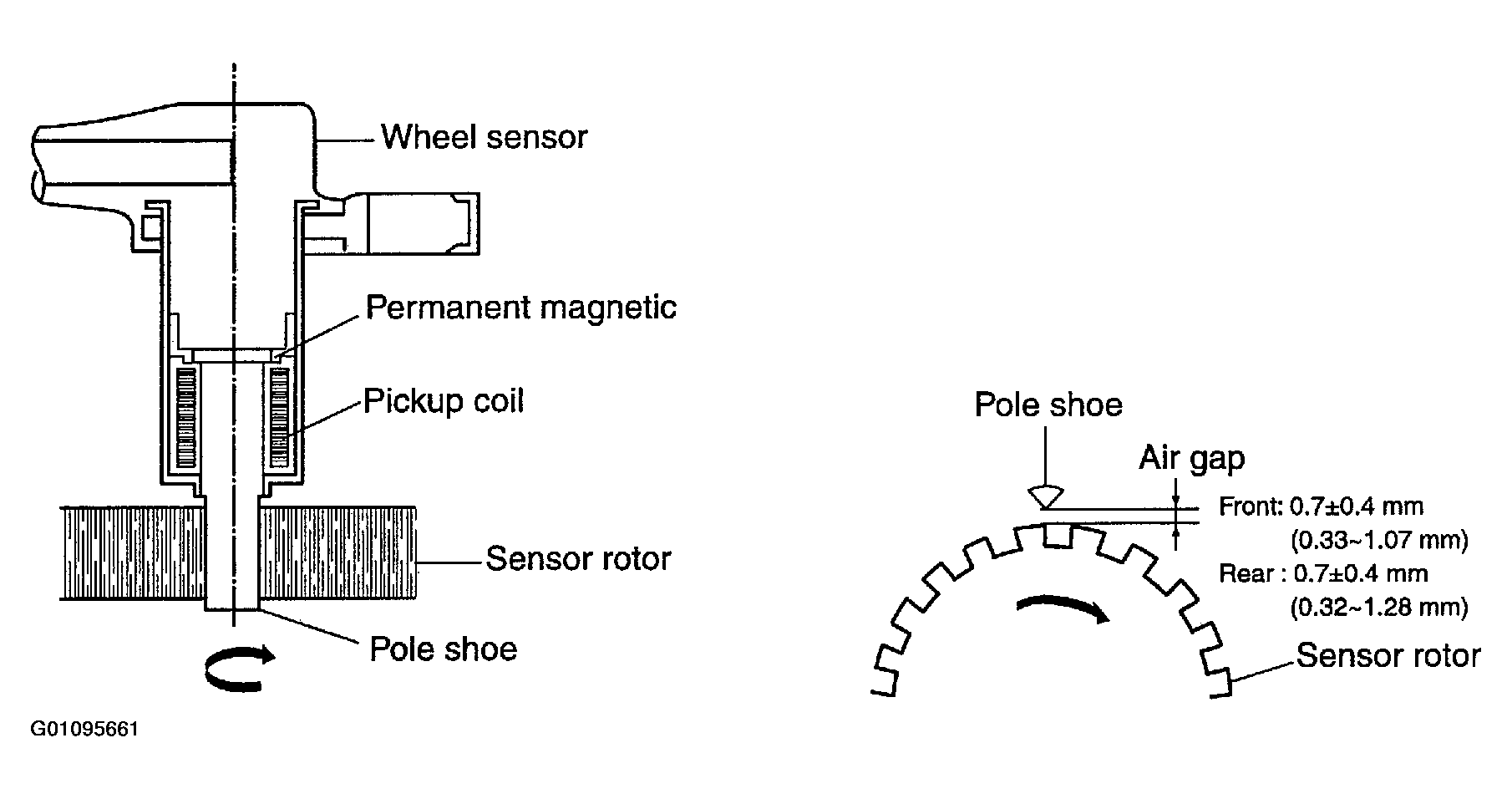

Fig 1: Identifying Wheel Speed Sensor Operation

Courtesy of KIA MOTORS AMERICA, INC.
