Component Inspection: Speedometer

1. Adjust the pressure of the tires to the specified level.
2. Drive the vehicle onto a speedometer tester. Use wheel chocks as appropriate.
3. Check if the speedometer indicator range is within the standard values in the service specifications.

CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.

NOTE: Tire wear and tire over or under inflation will increase the indication error.

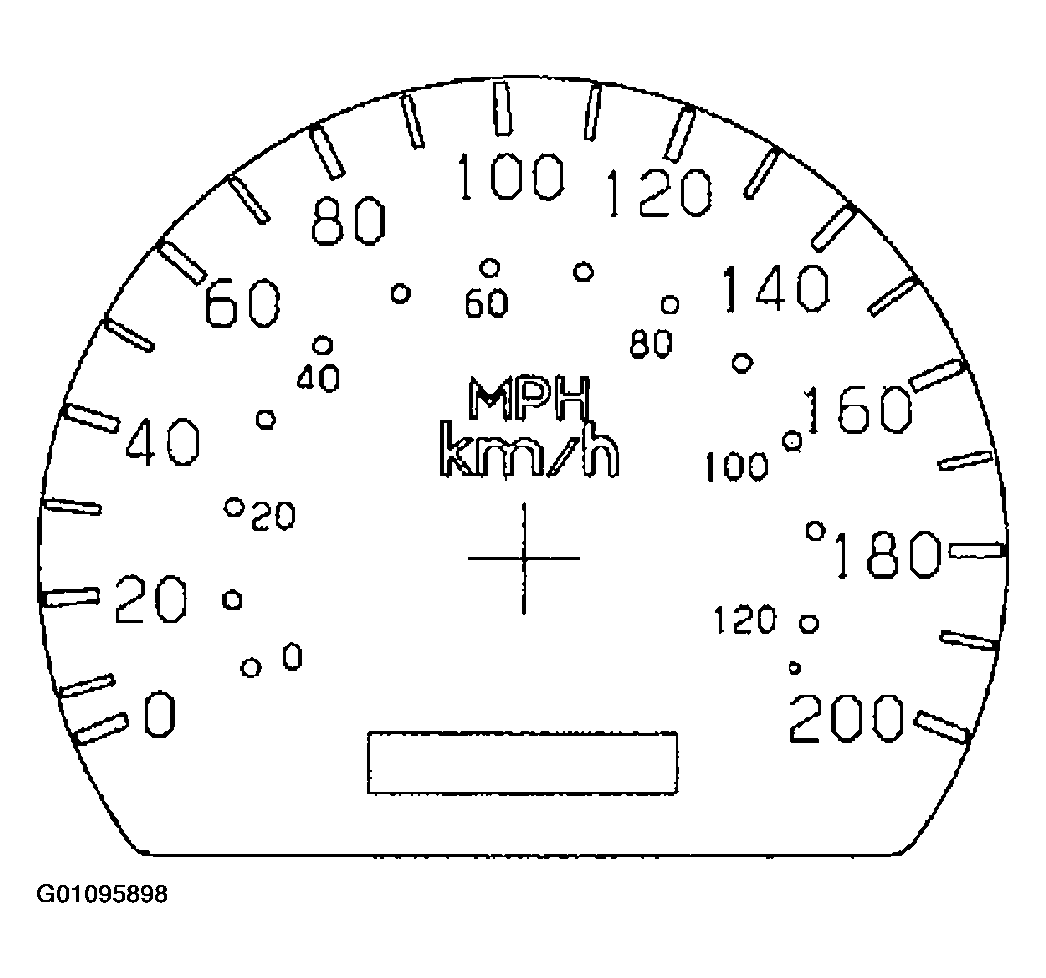

Fig 1: Illustrating Speedometer

Courtesy of KIA MOTORS AMERICA, INC.

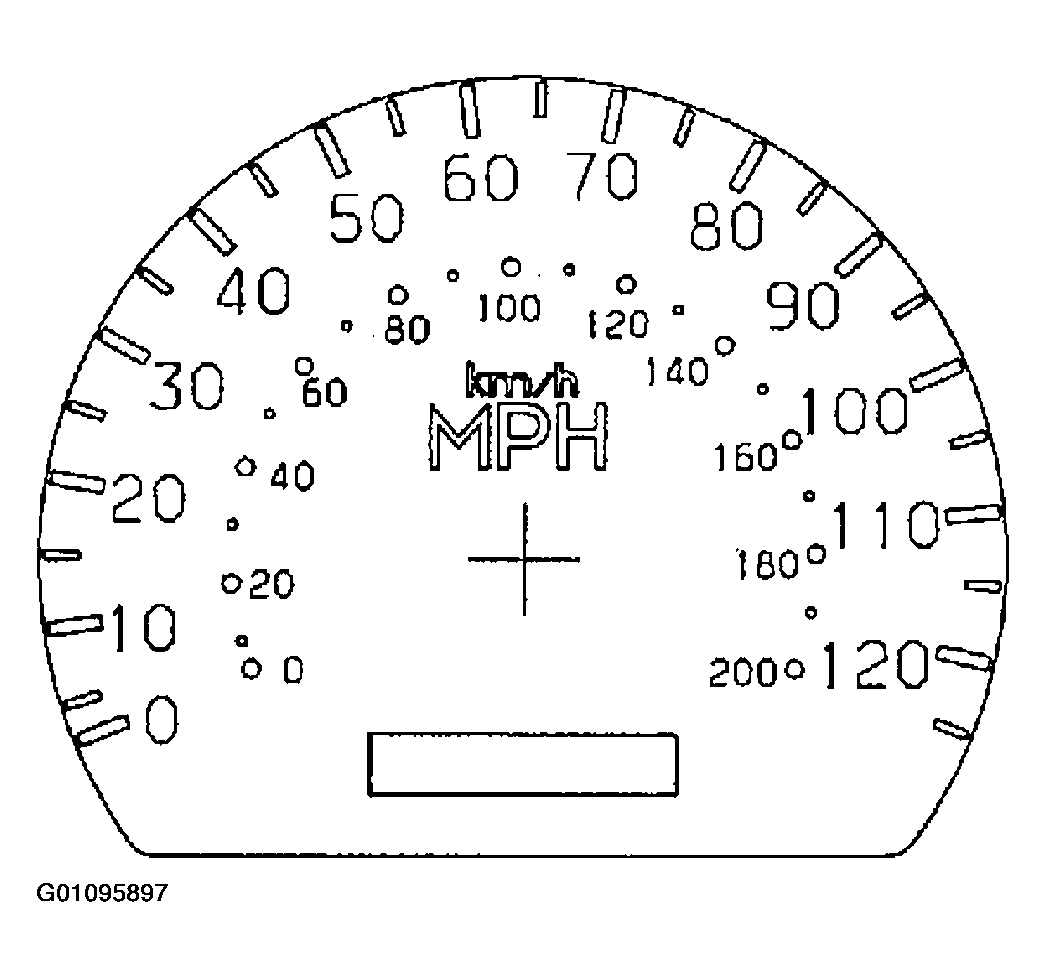

Fig 2: Illustrating Alternative Speedometer

Courtesy of KIA MOTORS AMERICA, INC.
