Gauges & Indicators: Specification

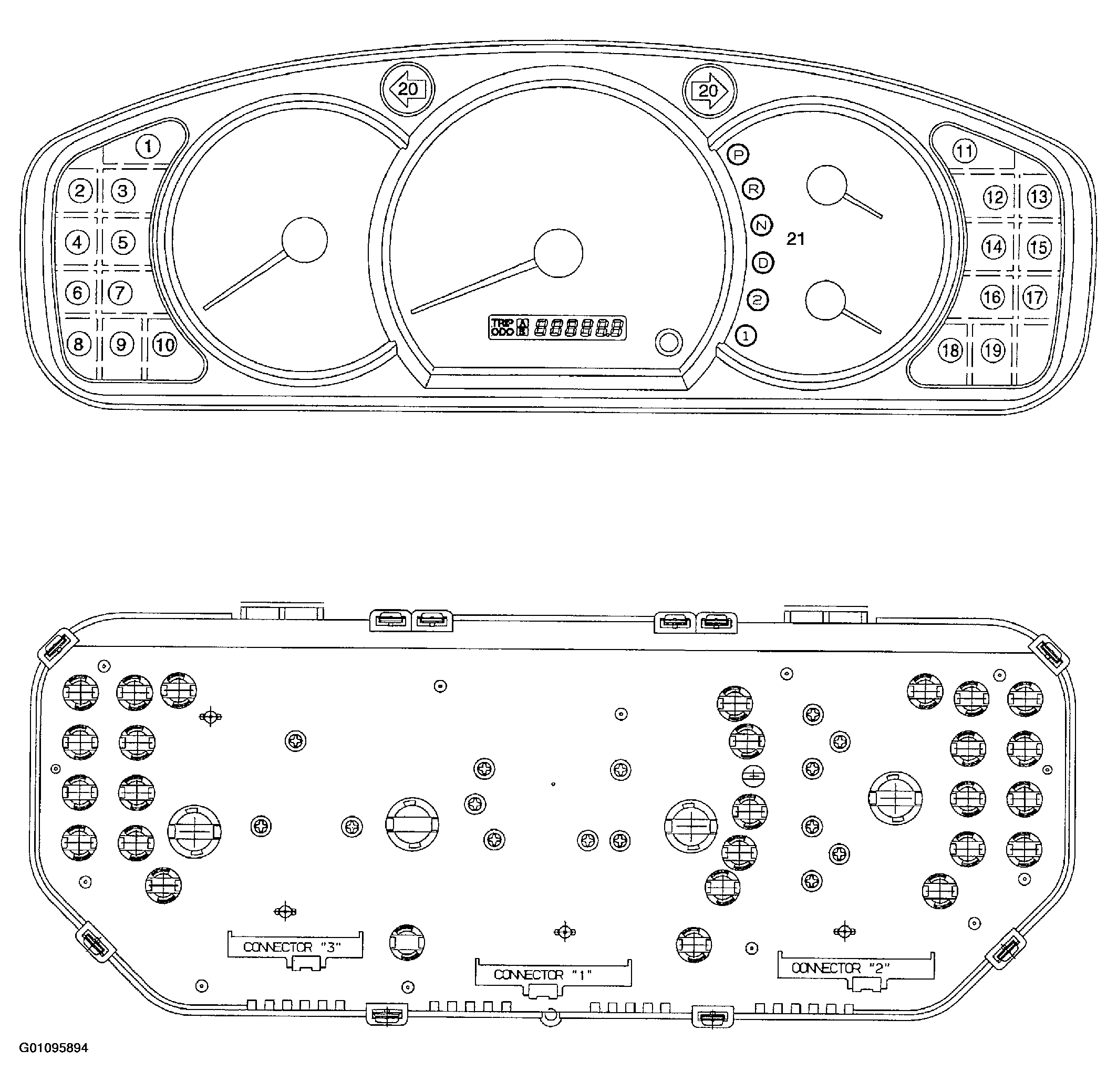

Fig 1: Illustrating Cluster Bulb & Connector Position

Courtesy of KIA MOTORS AMERICA, INC.

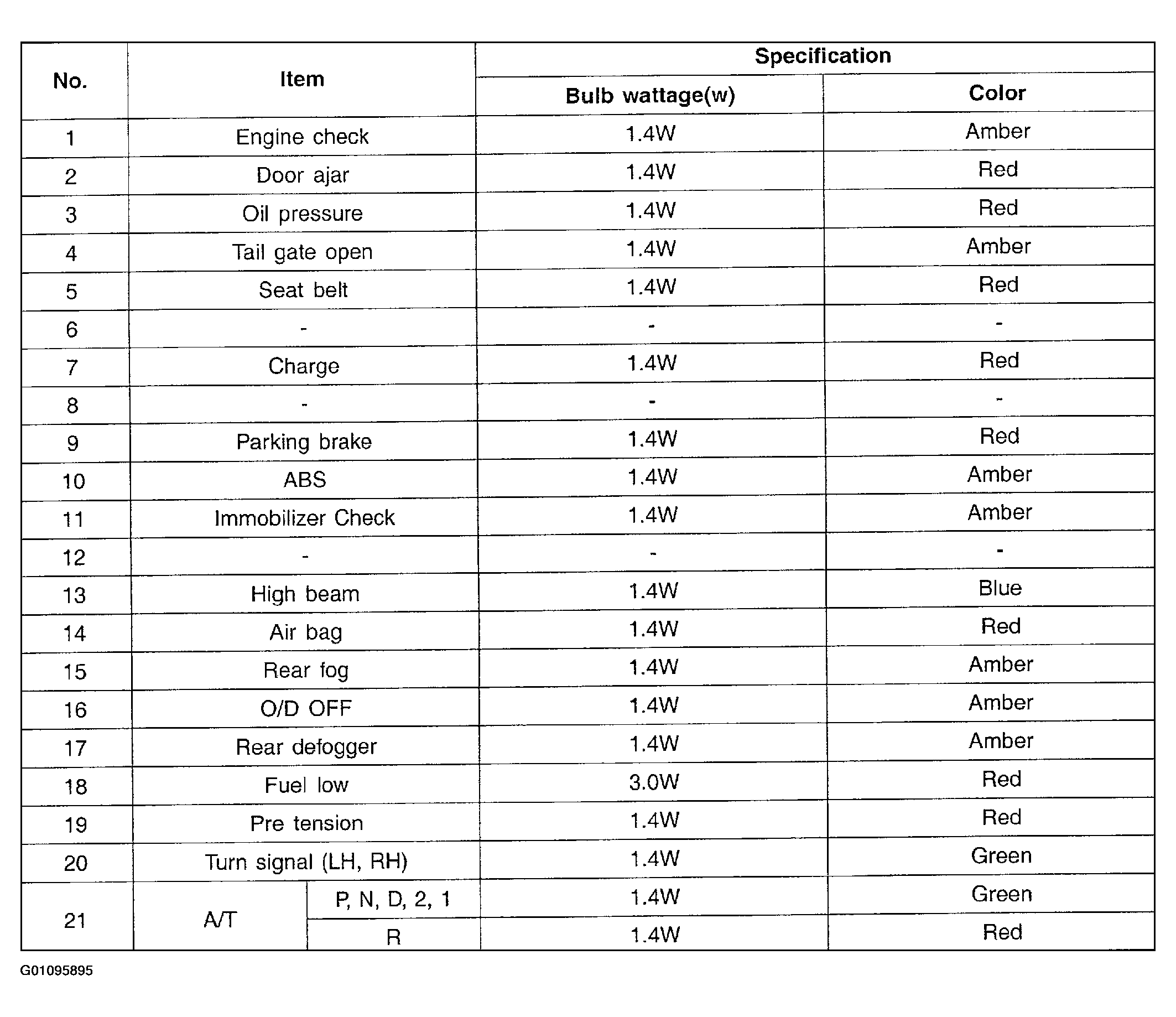

Fig 2: Cluster Bulb Specification Chart

Courtesy of KIA MOTORS AMERICA, INC.
