General
›
Troubleshooting
›
Engine Mechanical System
Engine Mechanical System

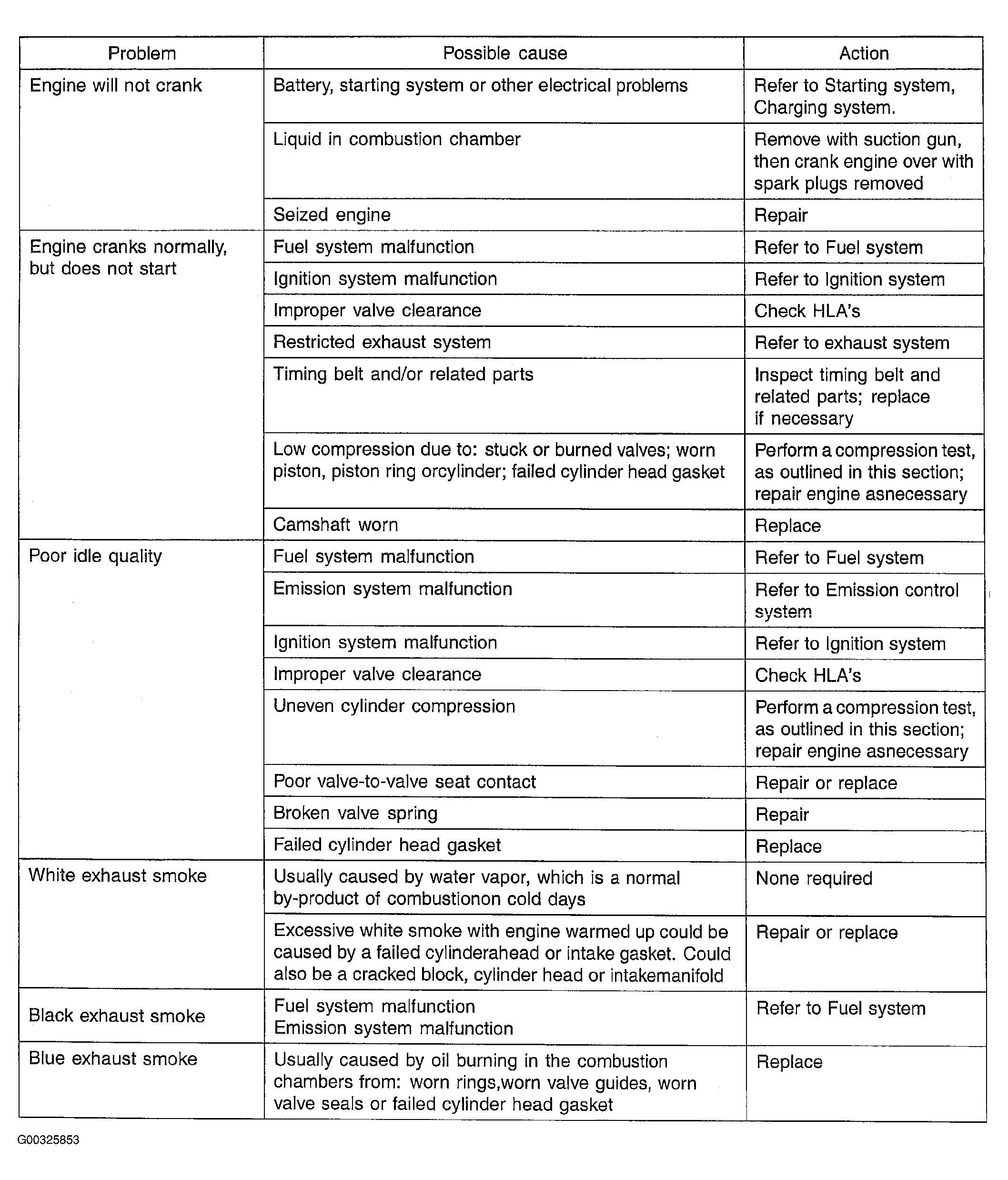

Fig 1: Engine Mechanical Troubleshooting Guide (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

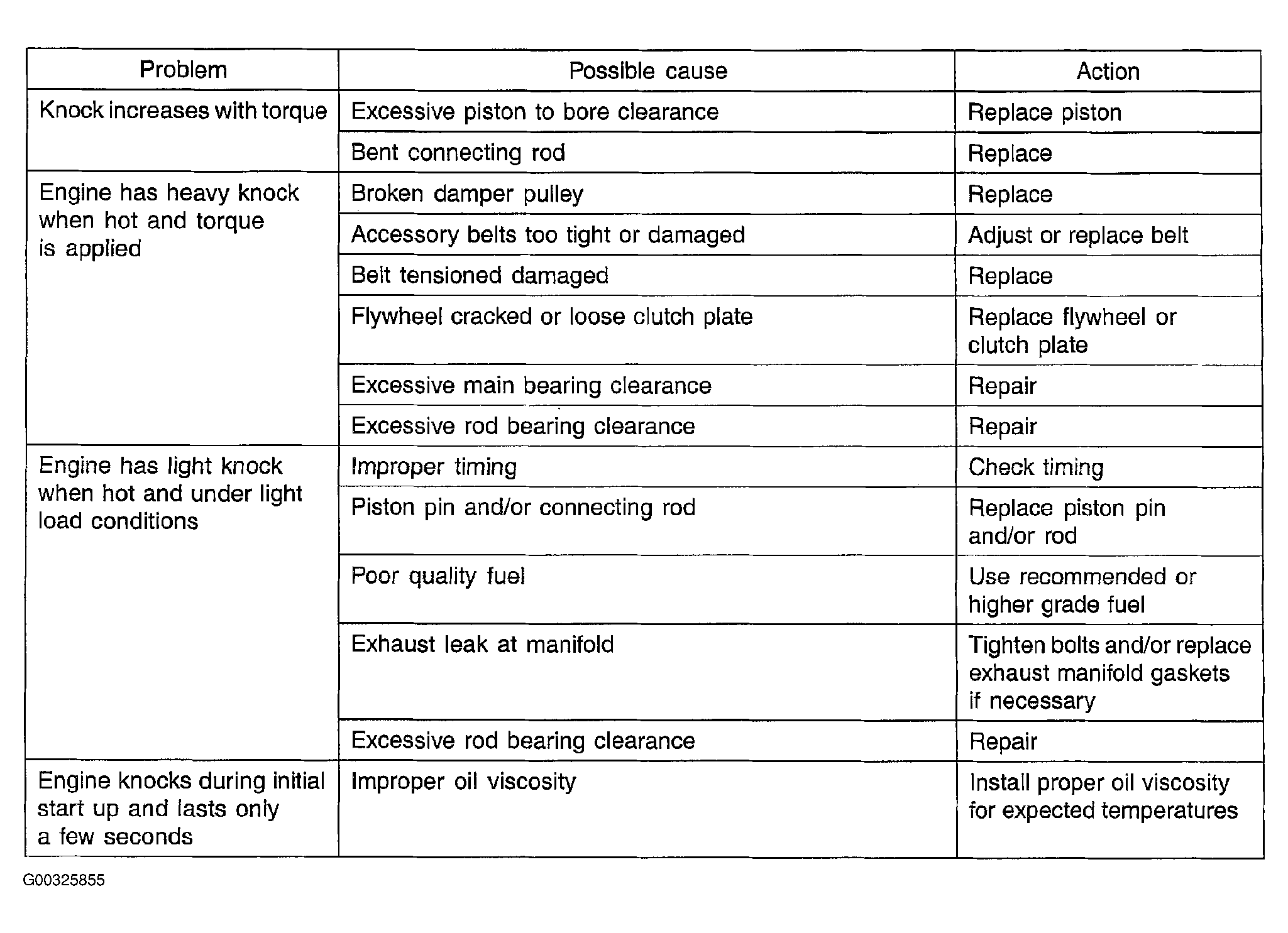

Fig 2: Engine Mechanical Troubleshooting Guide (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

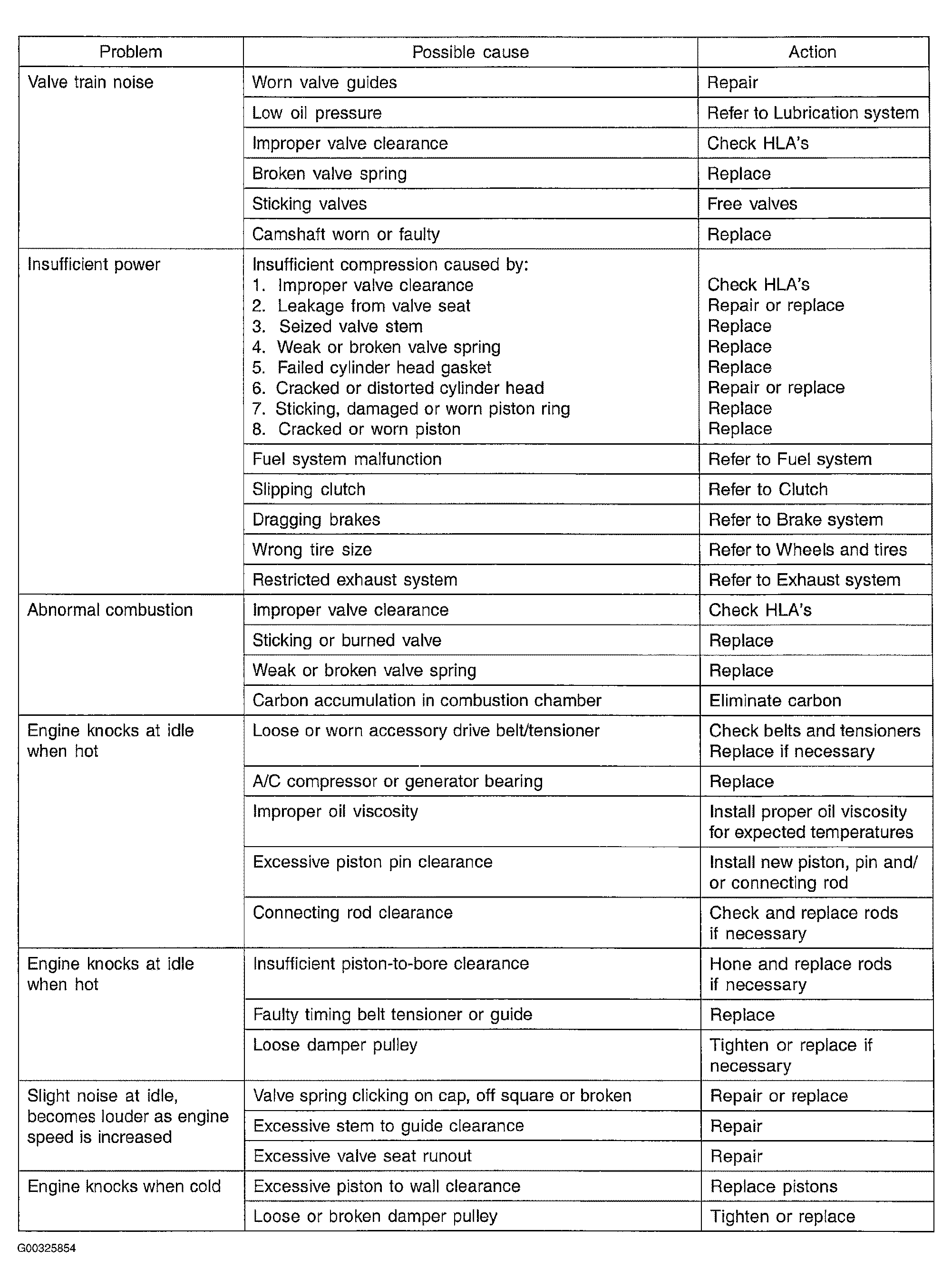

Fig 3: Engine Mechanical Troubleshooting Guide (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
