Lubrication System

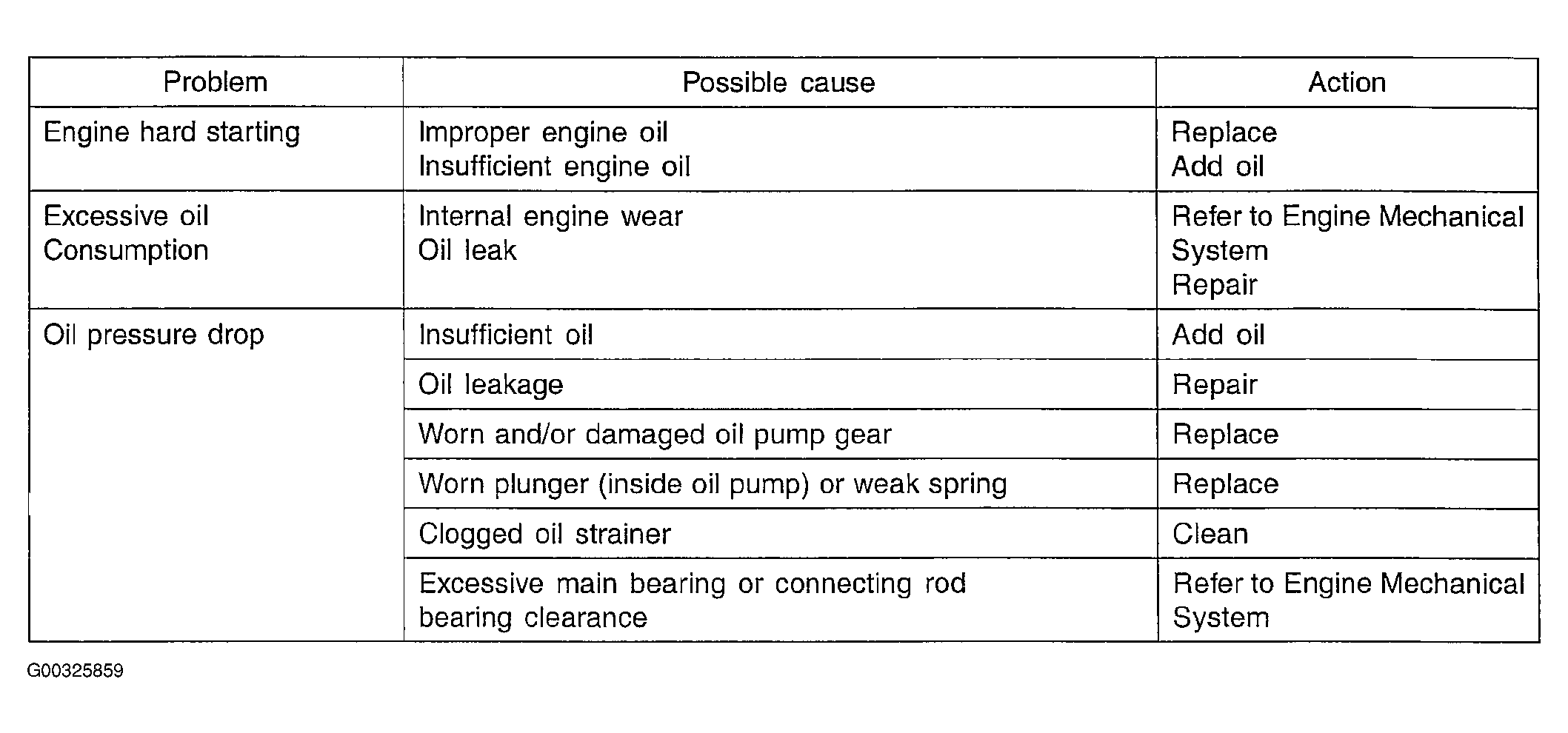

Fig 1: Lubrication System Troubleshooting Guide (1 Of 2)
G00325859Courtesy of KIA MOTORS AMERICA, INC.

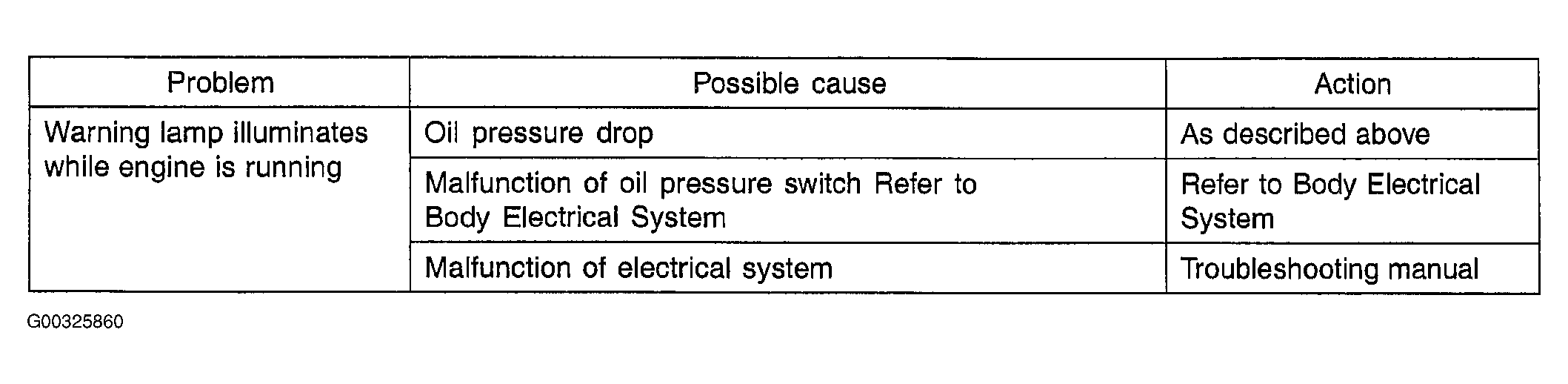

Fig 2: Lubrication System Troubleshooting Guide (2 Of 2)
G00325860Courtesy of KIA MOTORS AMERICA, INC.
