Assembly Note

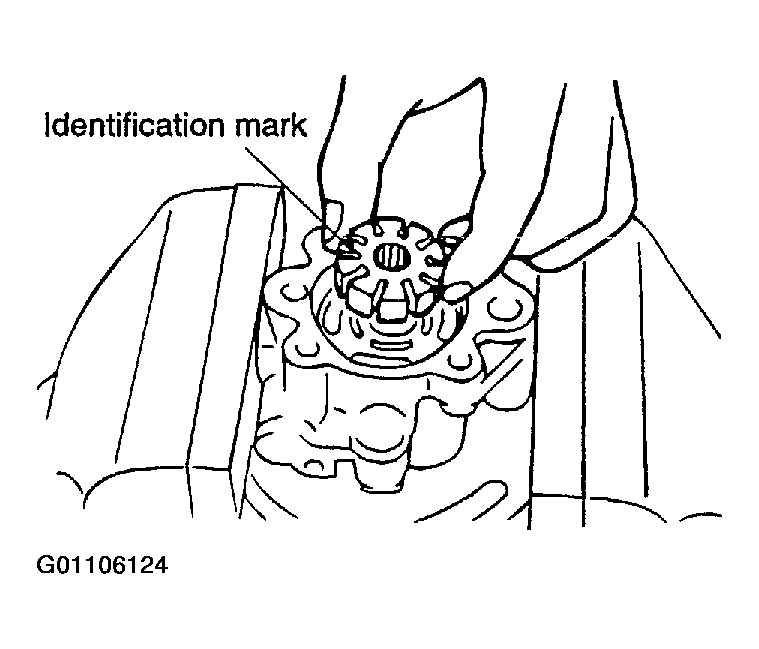

Install the rotor to the shaft with the rotor's identification mark facing upward.

Fig 1: Installing The Rotor To The Shaft
Courtesy of KIA MOTORS AMERICA, INC.

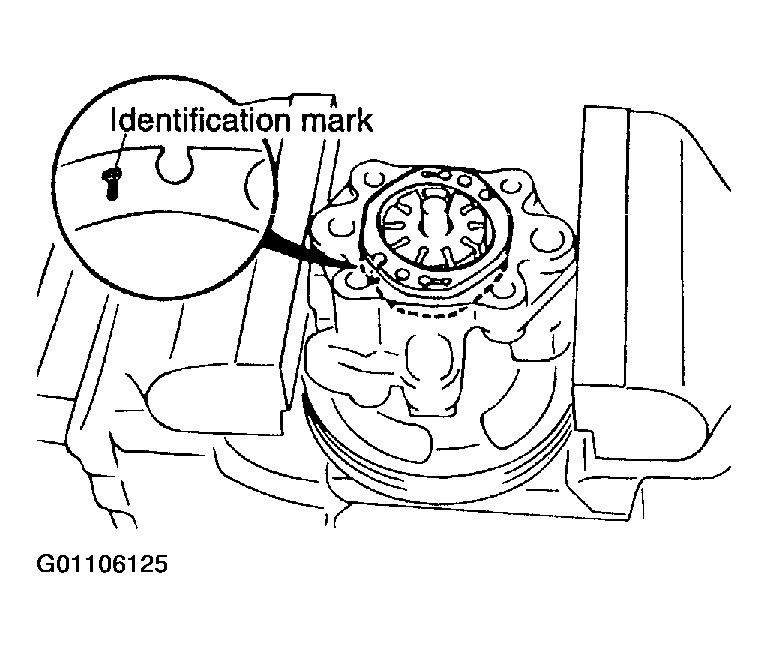

Install the cam ring so that its identification mark is facing downward.

Fig 2: Installing The Cam Ring
Courtesy of KIA MOTORS AMERICA, INC.
Install the vanes (10 pieces) to the rotor, with the R part of the vanes facing outward.

Fig 3: Installing The Vanes
Courtesy of KIA MOTORS AMERICA, INC.
