Input (Primary) Shaft: Notes

NOTE:

Measure thrust clearance of all gears before disassembly, see PREINSPECTION .
Disassemble in order shown in figure.
Assembly will be in reverse order of disassembly.
CAUTION: Check thrust clearance of all gears before disassembly and after assembly.

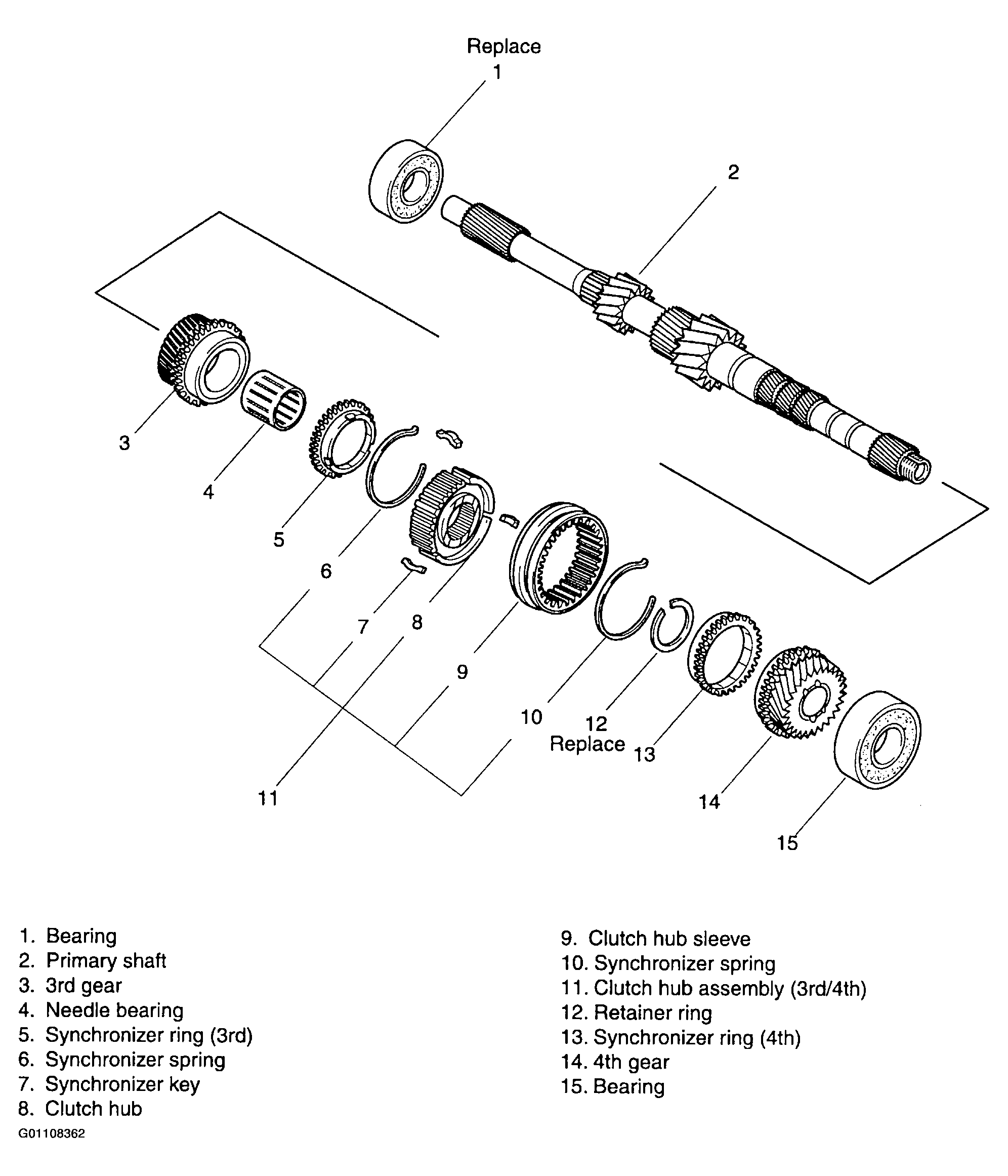

Fig 1: Exploded View Of Primary Shaft Assembly
Courtesy of KIA MOTORS AMERICA, INC.
