Home › Kia › 2003 › Sedona EX › Repair and Diagnosis › Electrical › Gauges › Instrument Panel › Component Tests › Notes

Component Tests: Notes

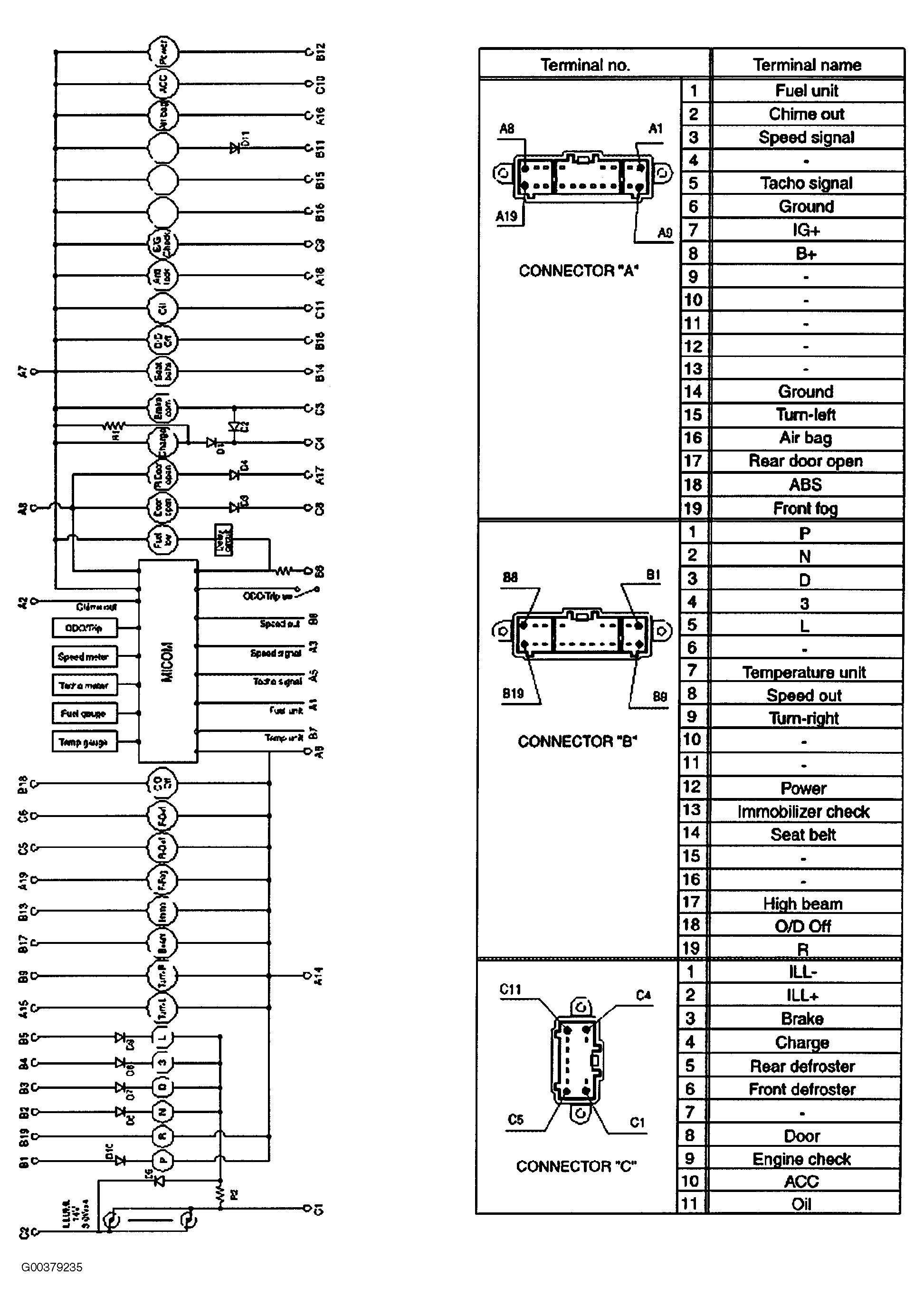

Fig 1: Illustrating Instrument Panel Pinout
G00379235Courtesy of KIA MOTORS AMERICA, INC.
