Engine Mounting
›
Engine Mounts
Engine Mounts

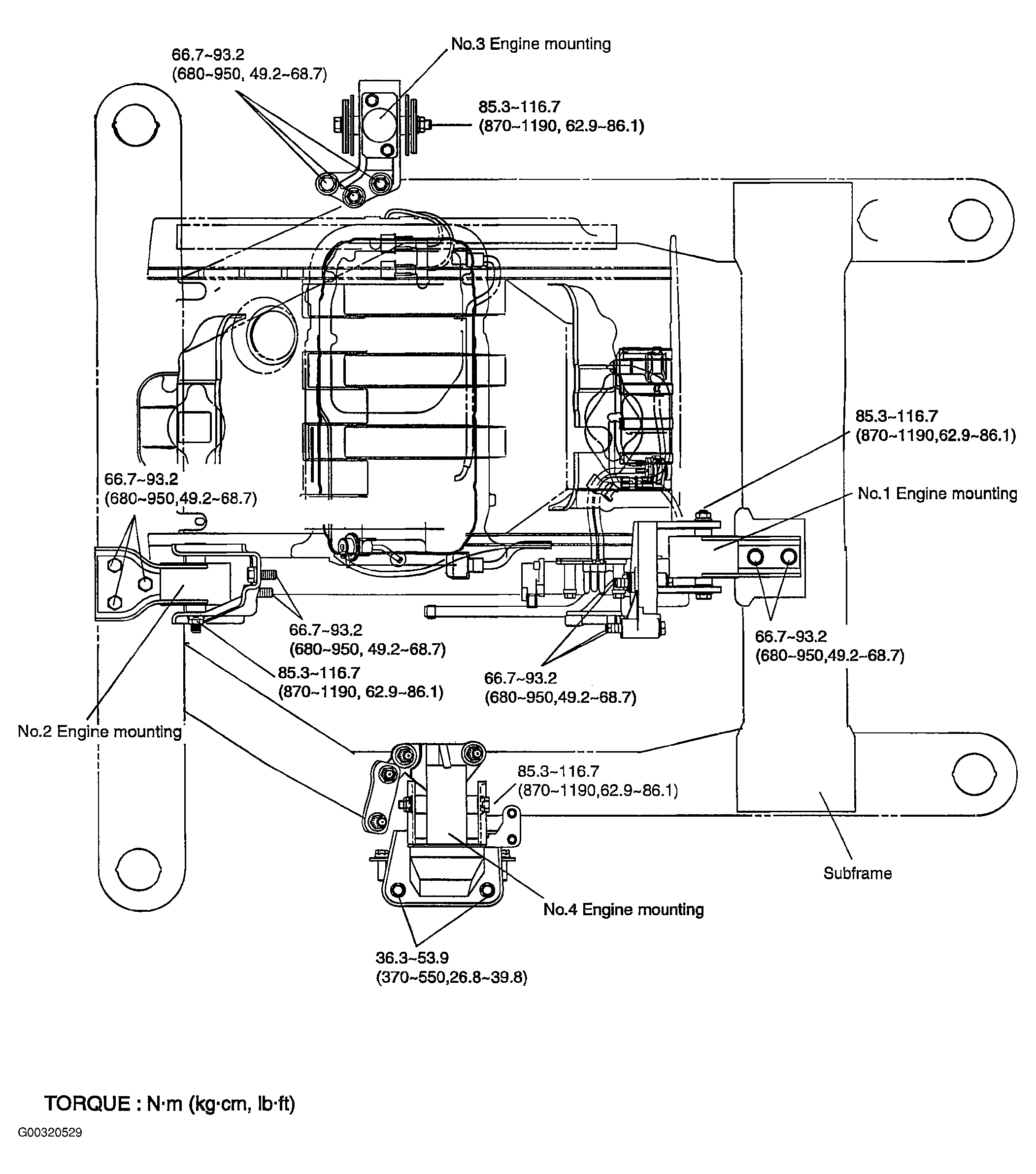

Fig 1: Identifying Engine Mounts
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
