Electronic Time And A Alarm Control System
›
ETACS (Electronic Time And A Alarm Control System)
›
Electronic Time And Alarm Control Module
›
Circuit Diagram
Circuit Diagram

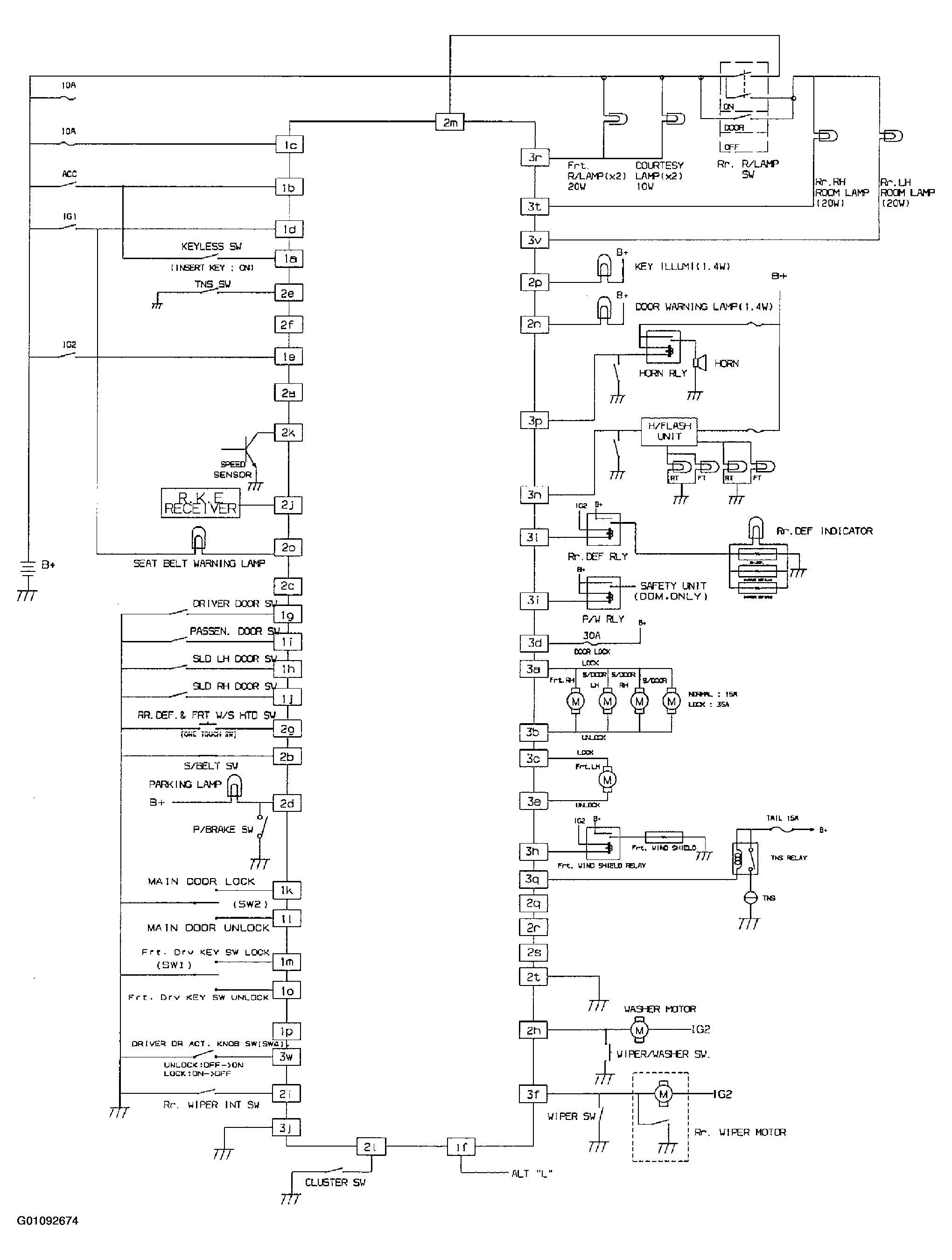

Fig 1: Electronic Time And Alarm Control Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
