Anti-Lock Braking System Control Module: Components

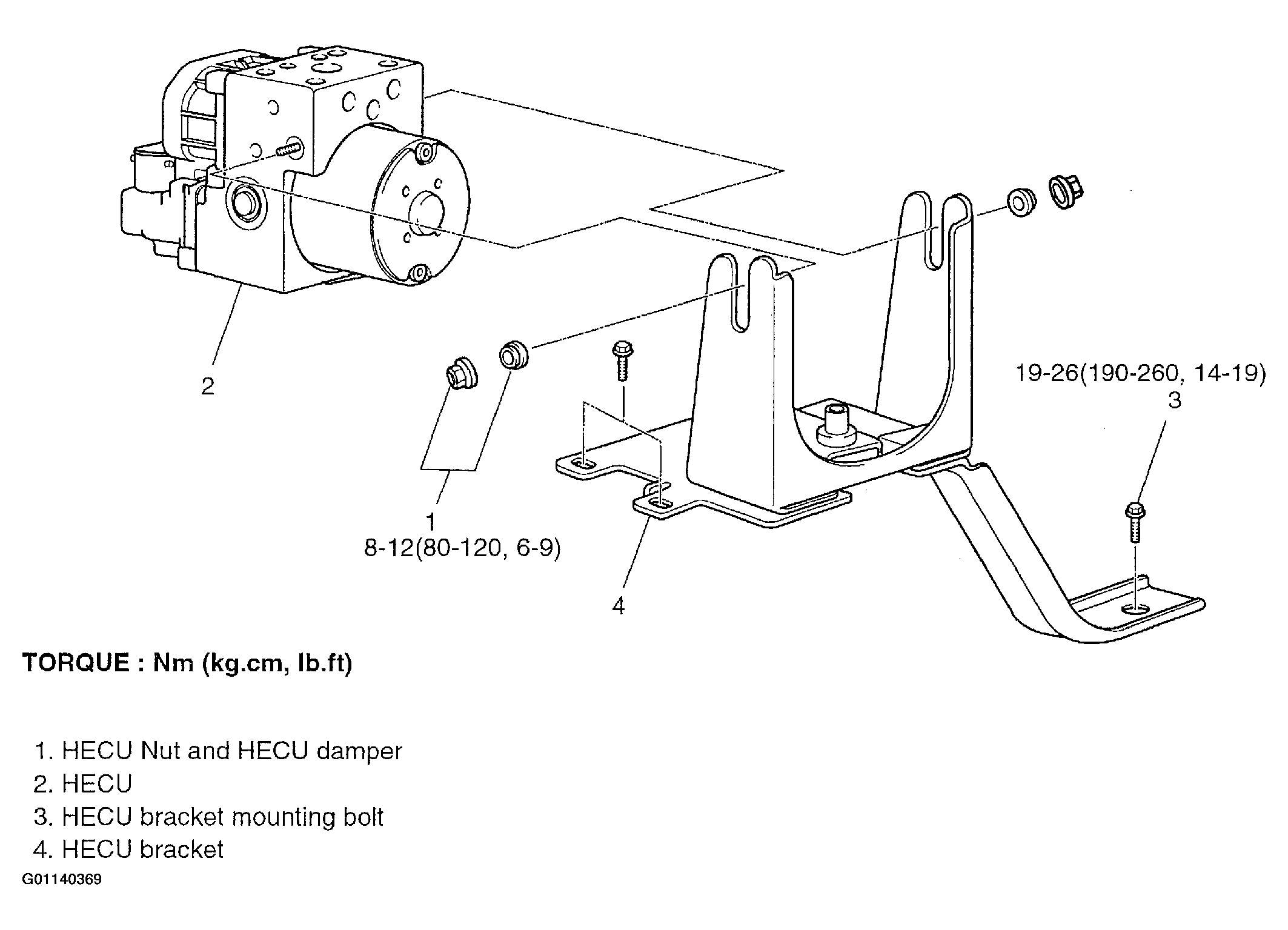

Fig 1: Illustrating Braking System Control Module Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
