Manual Temperature Control Panel Connector End Views
Manual Temperature Control Panel Connector End Views

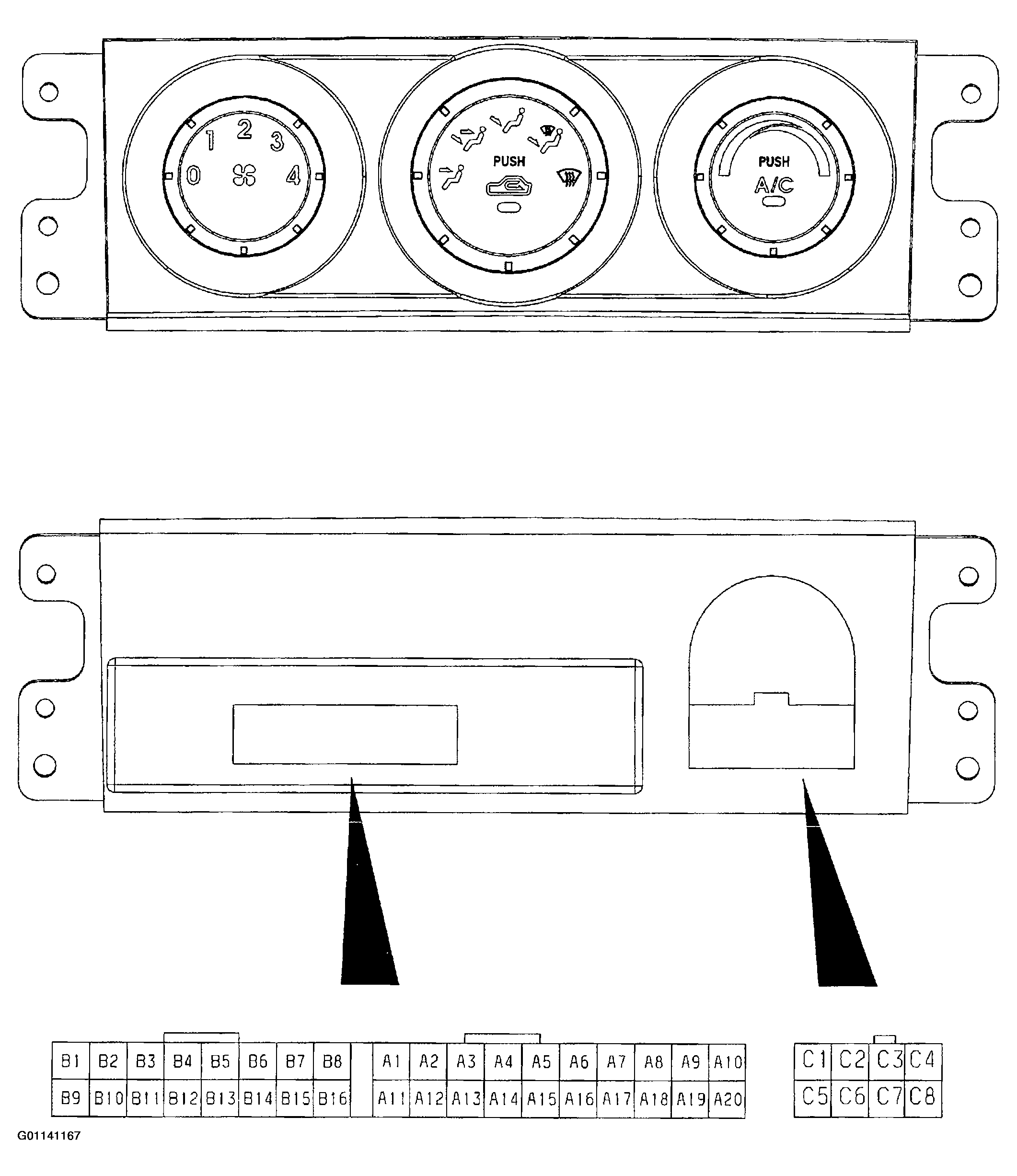

Fig 1: Manual Temperature Control Panel Connector End Views
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
