Special Tools
Special Tools

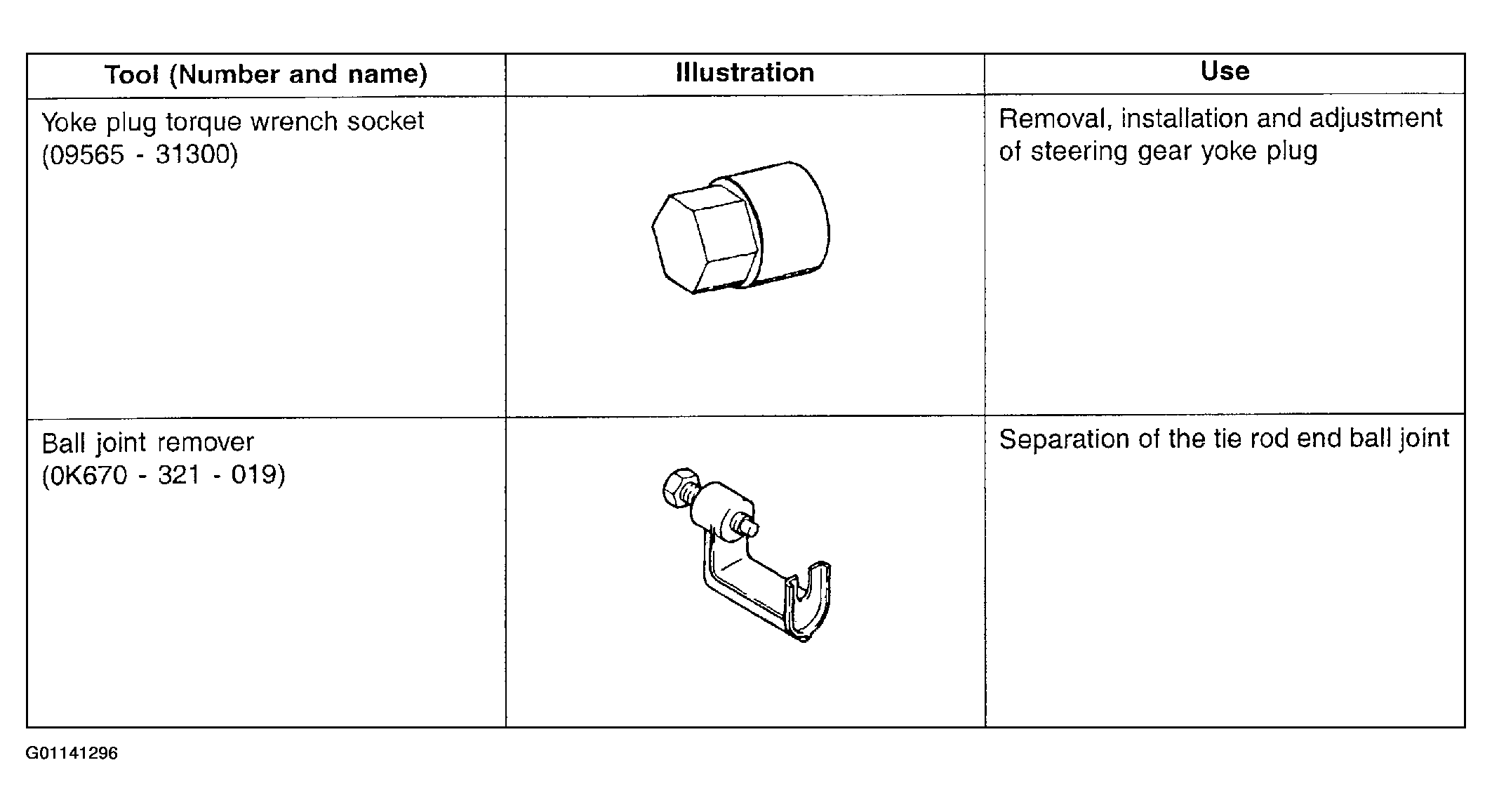

Fig 1: Power Steering Special Tools (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

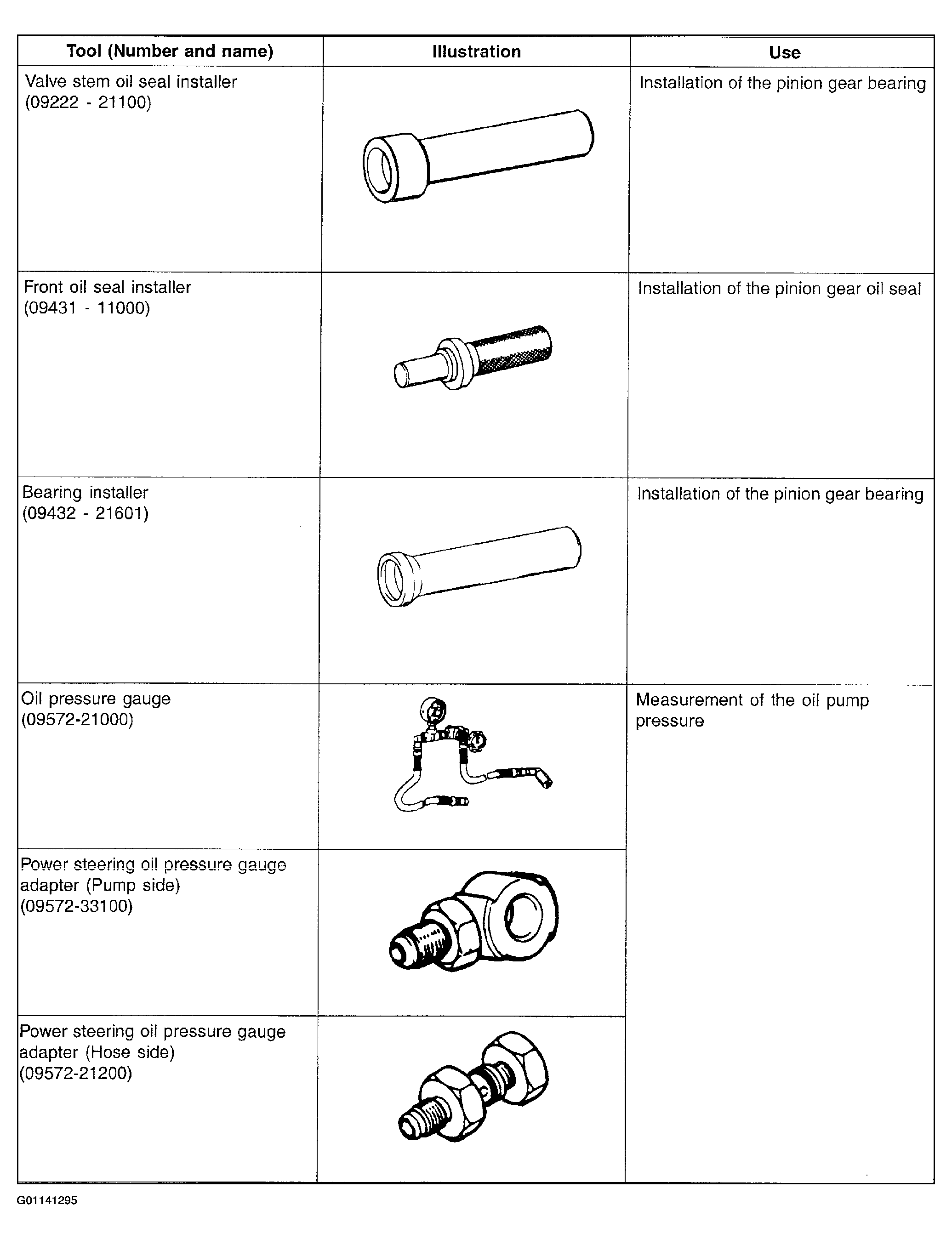

Fig 2: Power Steering Special Tools (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
