Charging Systems: Generator: Components: Notes

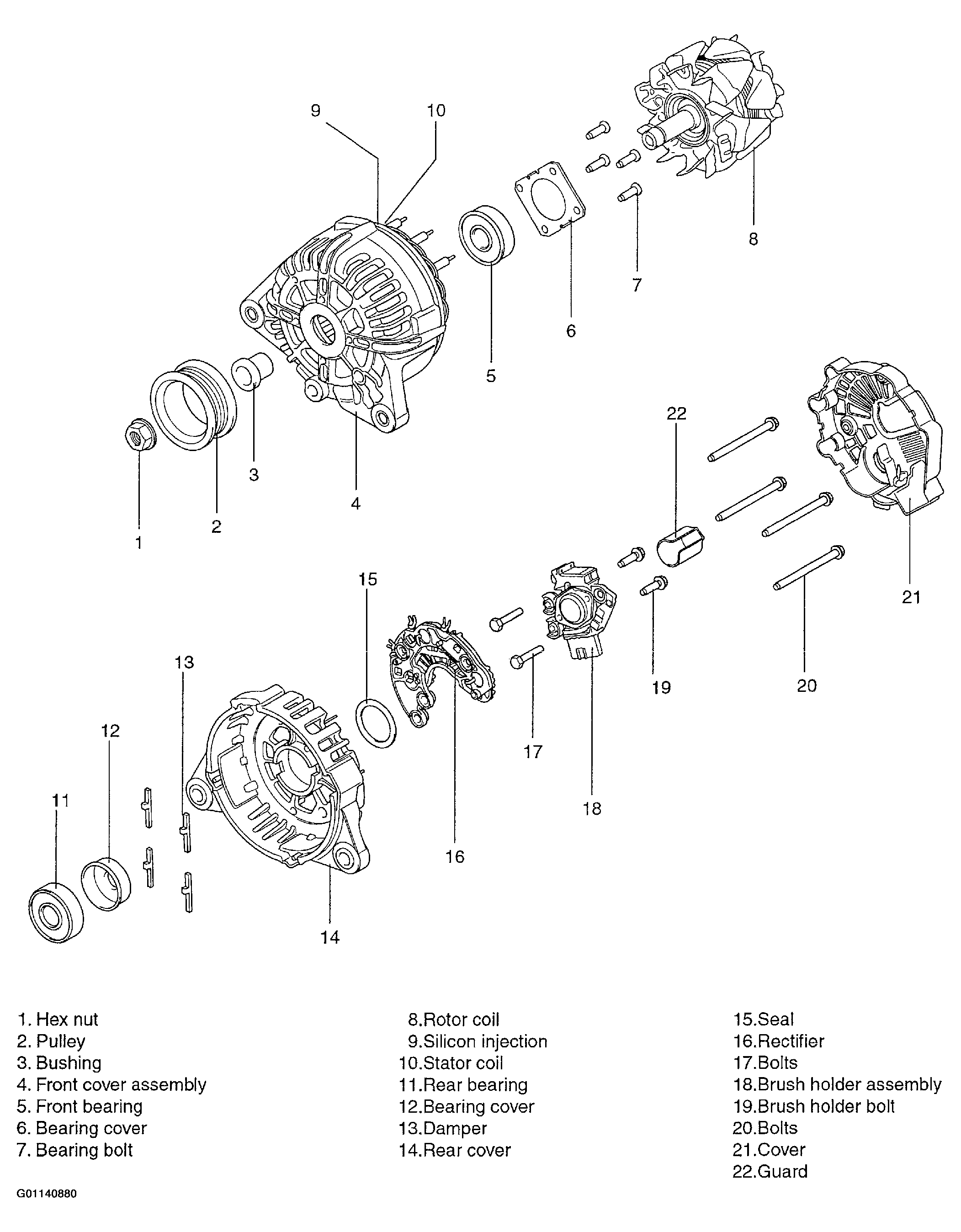

Fig 1: Exploded View Of Generator Components
G01140880Courtesy of KIA MOTORS AMERICA, INC.
