Evaporative Emission Control System: Components

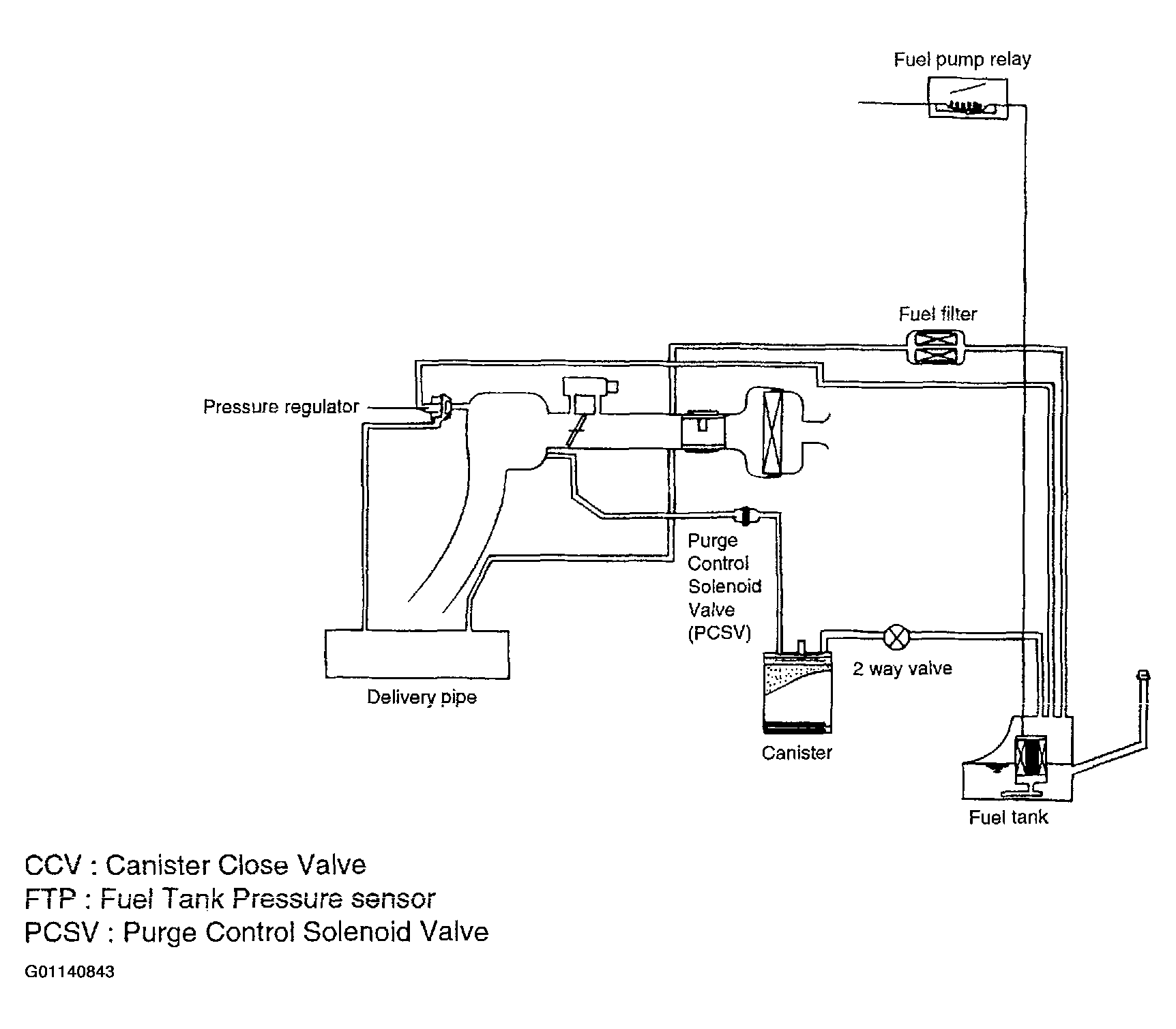

Fig 1: Illustrating Evaporative Emission Control System Components
G01140843Courtesy of KIA MOTORS AMERICA, INC.
