Complete Control Valve Body Assembly: Reassembly: Notes

• Before assembly, make sure all parts are perfectly clean.
• Apply ATF to all parts.
• Do not  reuse gaskets or O-rings.

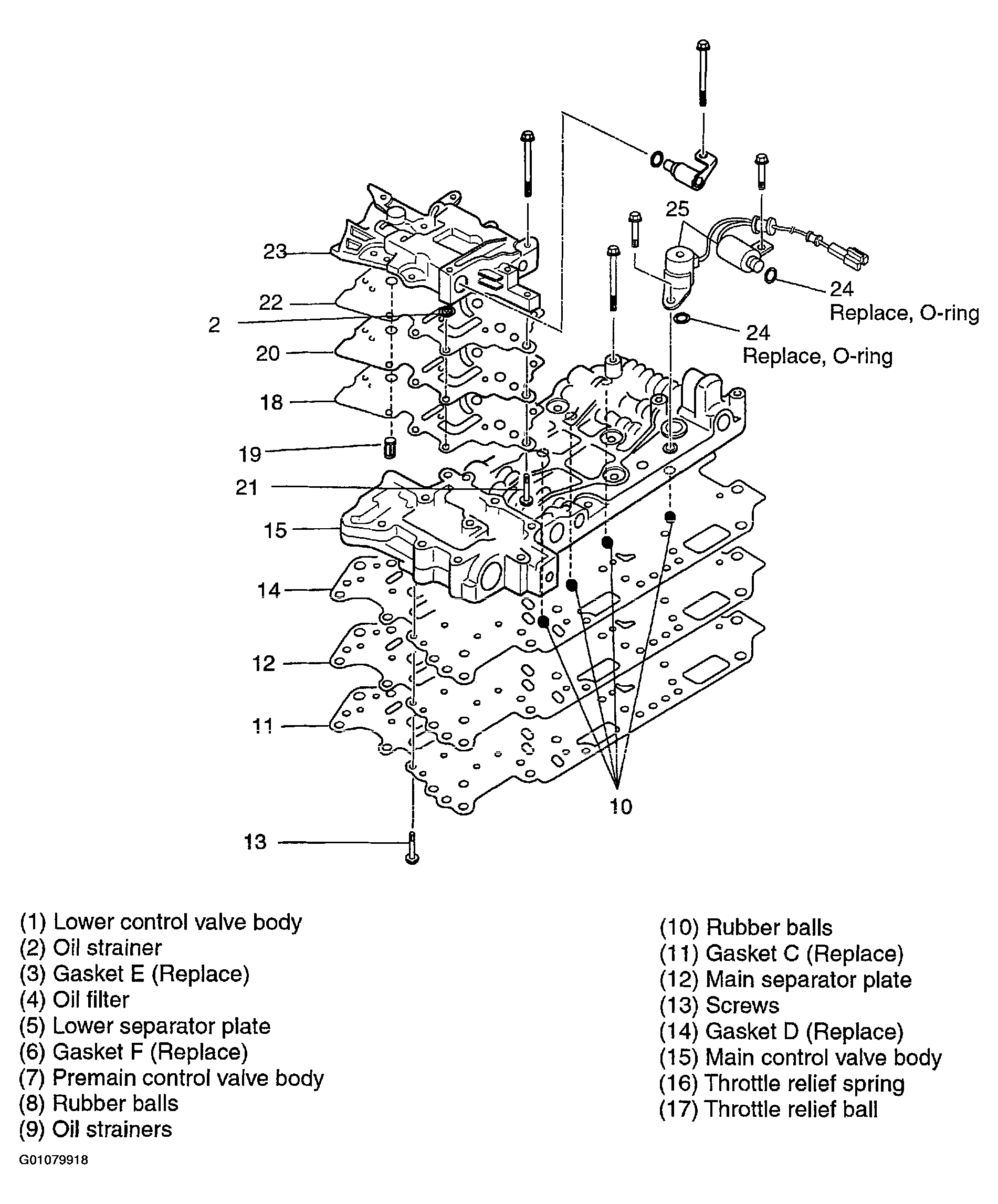

Fig 1: Illustrating Control Valve Body Components (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

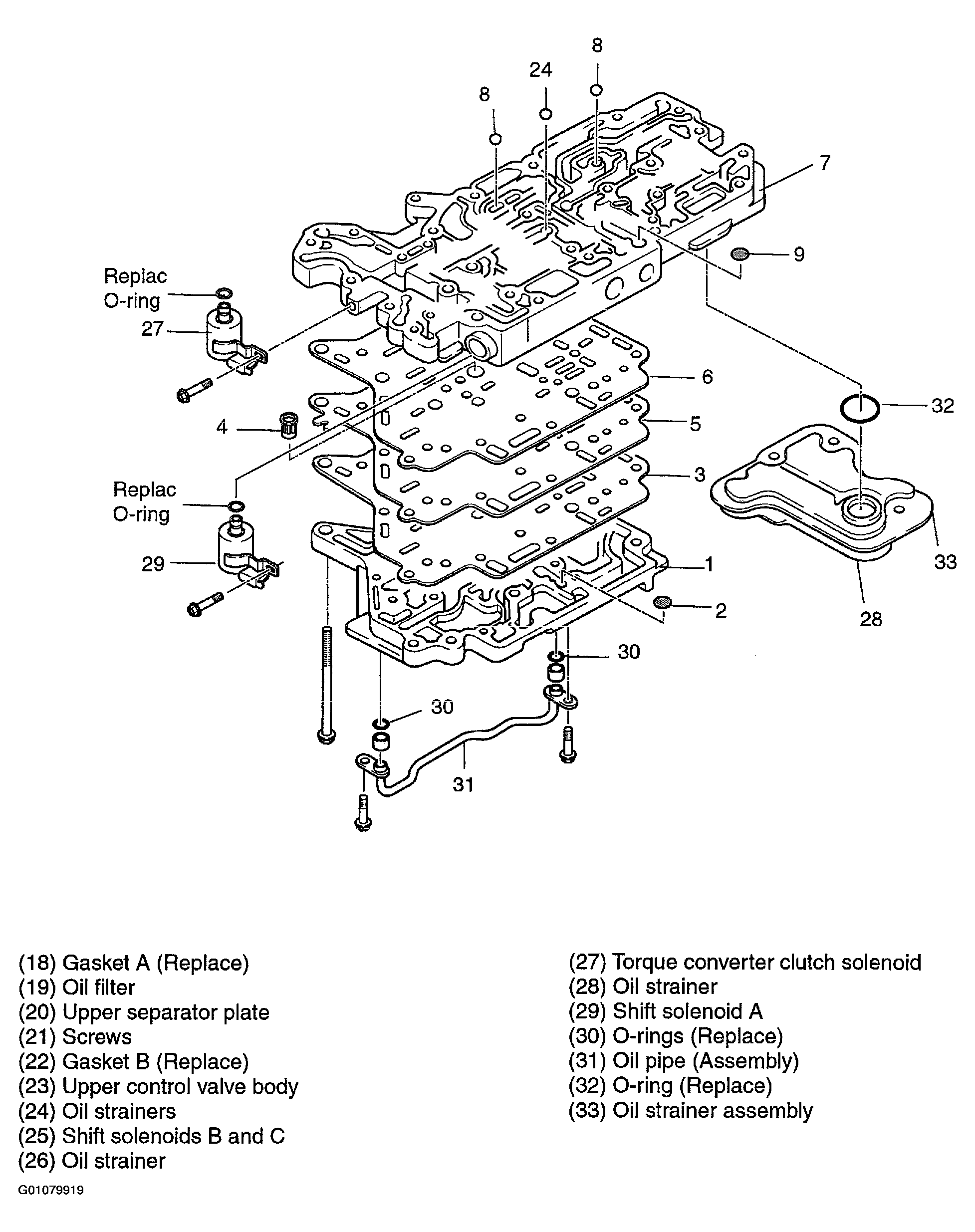

Fig 2: Illustrating Control Valve Body Components (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
