Front Wiper Motor: Inspection

Check for continuity between terminals using an ohmmeter.

Fig 1: Checking Continuity (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Checking Continuity (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
If continuity is not as specified, replace motor.
Check motor's operation by connecting it to a 12V DC source.

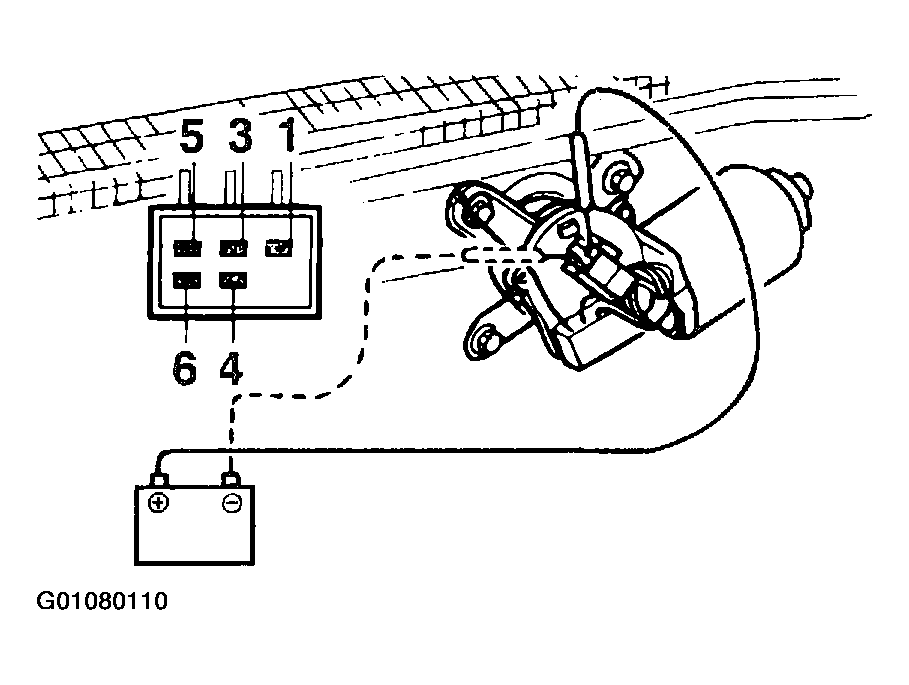

Fig 3: Checking Motor Operation (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Checking Motor Operation (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
