Diagnostic Trouble Code Description
Diagnostic Trouble Code Description

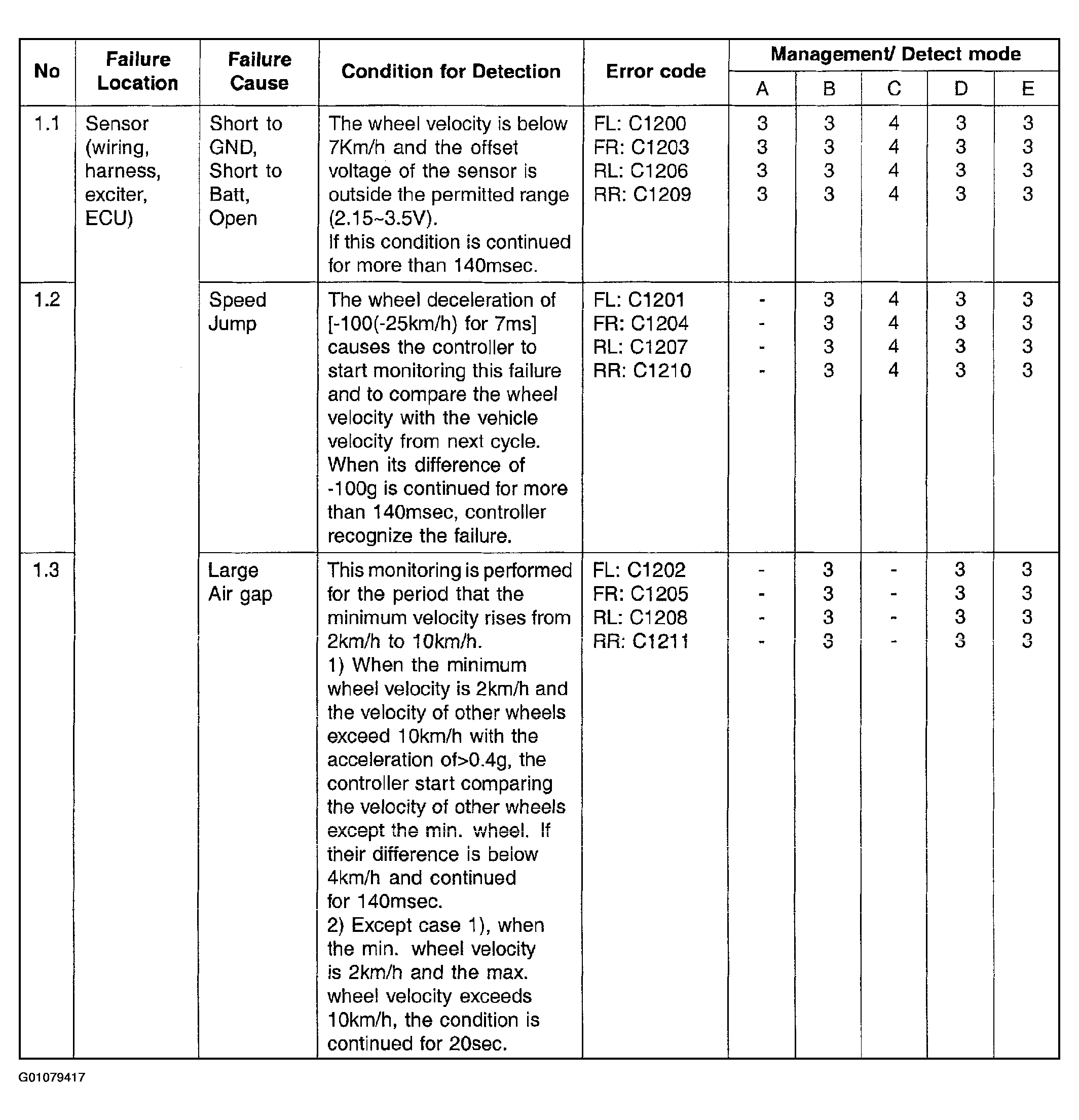

Fig 1: Diagnostic Trouble Code Description (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

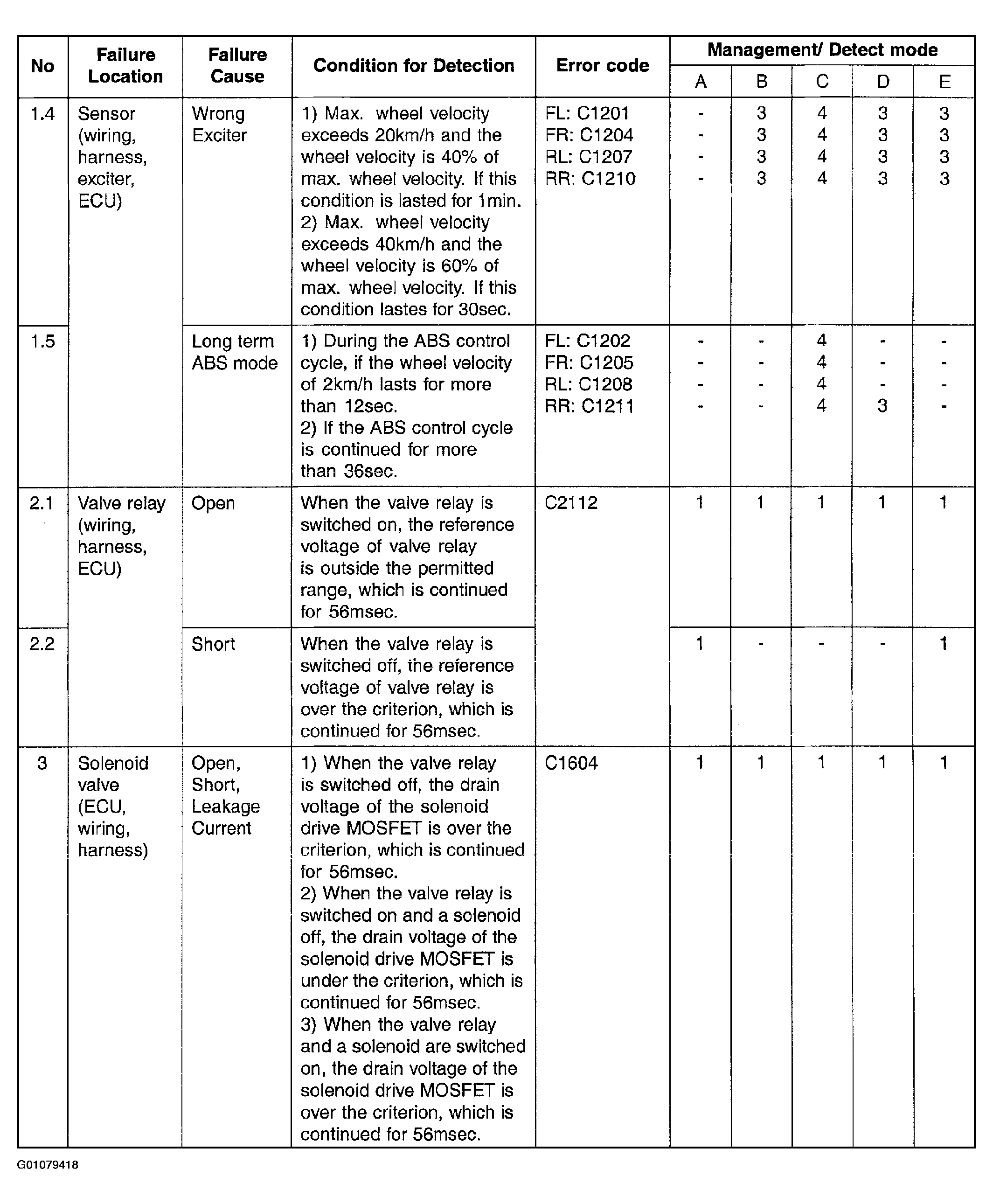

Fig 2: Diagnostic Trouble Code Description (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

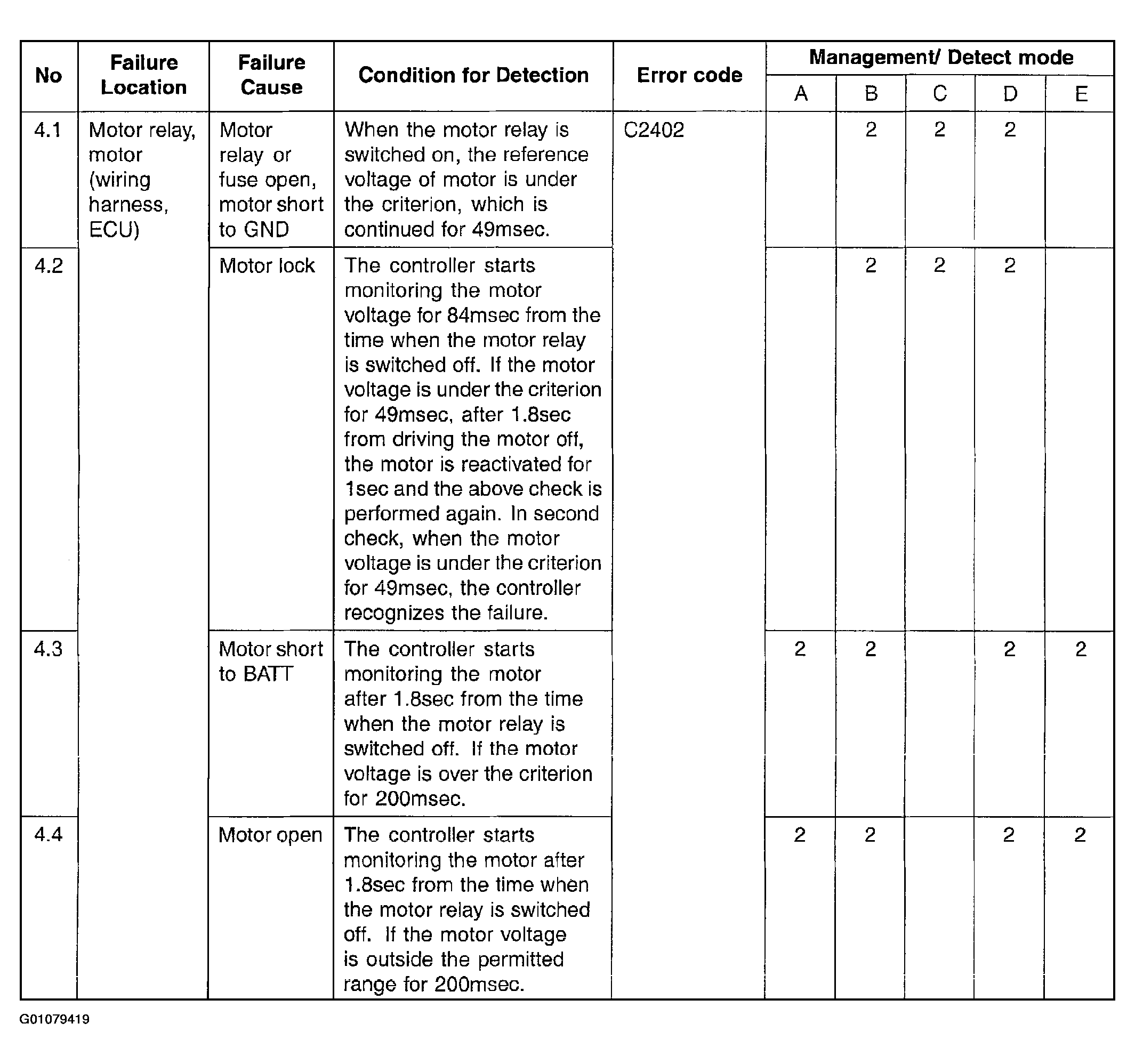

Fig 3: Diagnostic Trouble Code Description (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

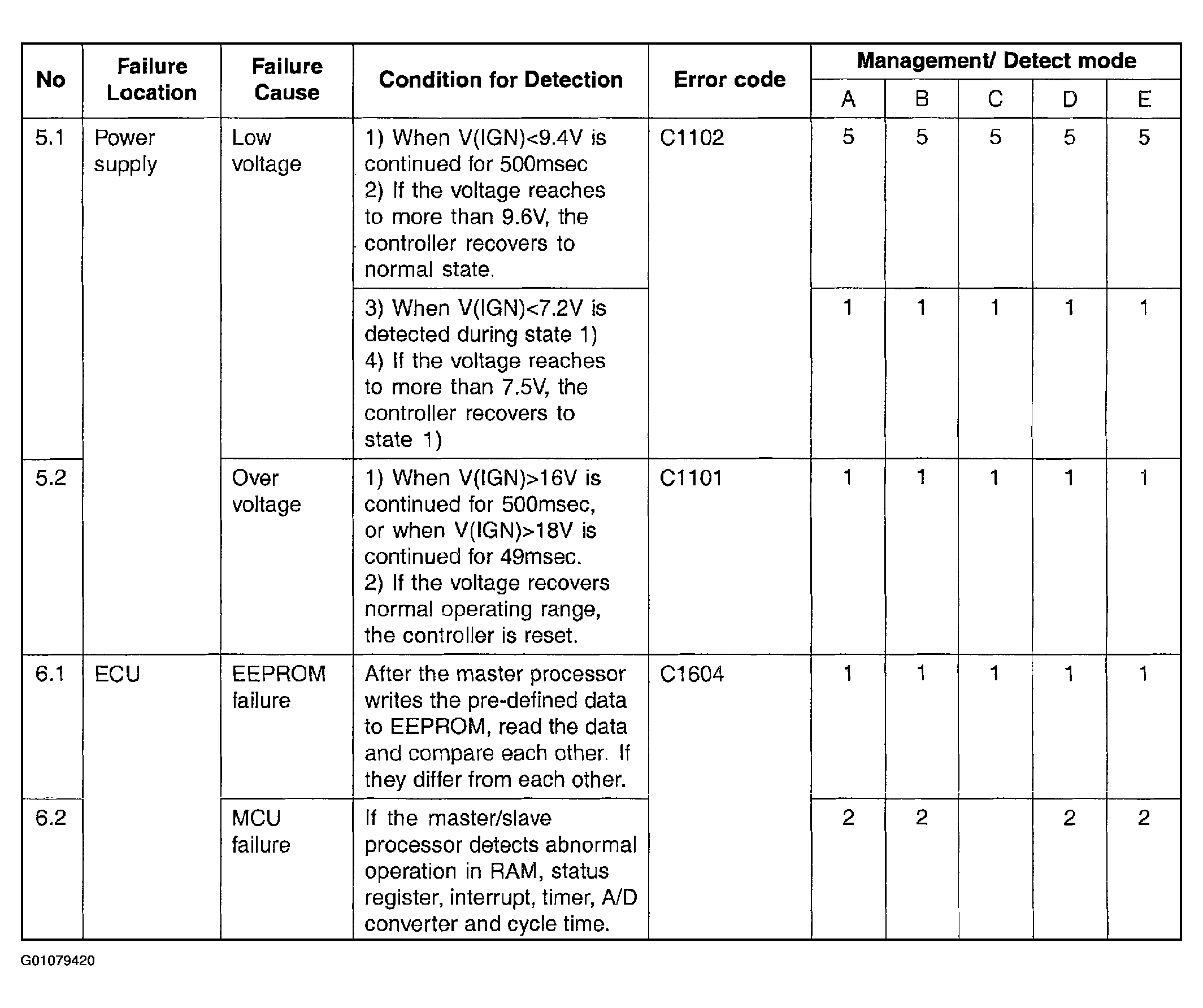

Fig 4: Diagnostic Trouble Code Description (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
