Removal & Installation
- Remove A/C and P/S drive belt, if equipped.

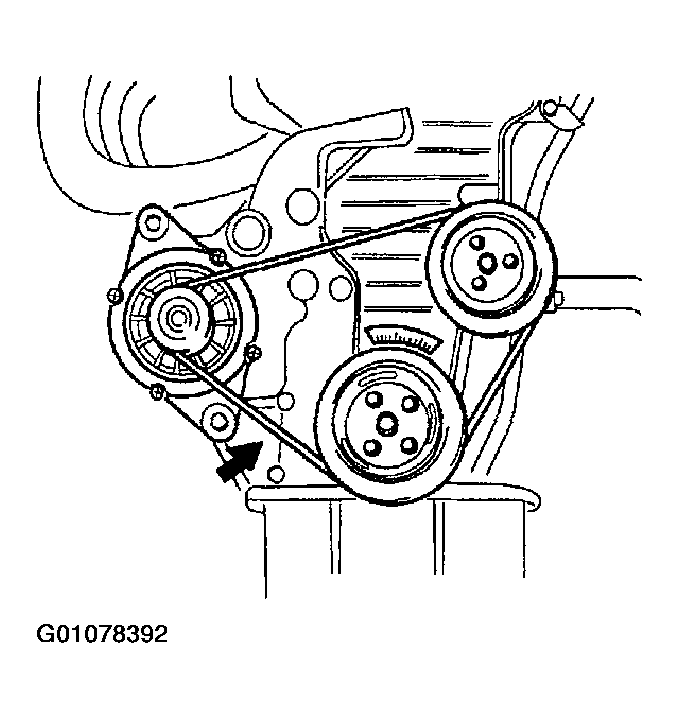

- Loosen generator mounting bolt and adjusting bolt.
- Remove generator belt.
- Install new generator belt and adjust to specification.
- Tighten all bolts to specified torque.
- Tightening torque
- Mounting bolt: 27~38 lb-ft (37~52 N.m, 3.8~5.3 kg-m)
- Adjusting bolt: 14-18 lb-ft (19-26 N.m, 1.9-2.6 kg-m)
- Tightening torque
- Install A/C and P/S drive belt, if equipped, and adjust to specification.
