Mode 6 - 1996-2017 KIA
›
Mode $06 Data Definitions For 2017 Soul 2.0GDI
Mode $06 Data Definitions For 2017 Soul 2.0GDI

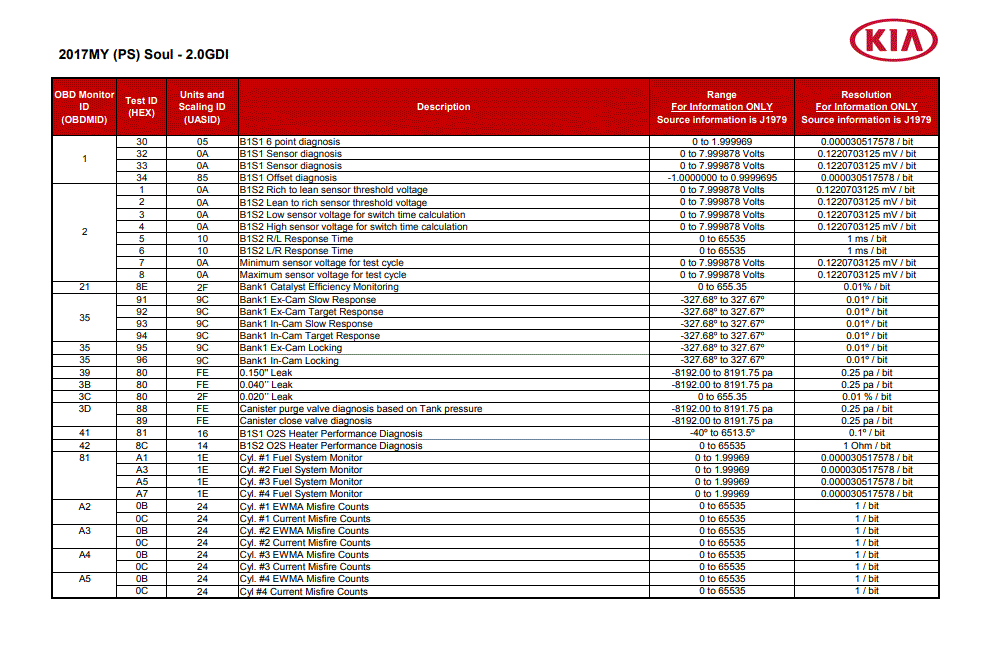

Fig 1: 2017 Soul 2.0GDI
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
