Continuity Inspection

  1. Disconnect negative battery cable.
  2. Disconnect O/D switch connector.
  3. Check for continuity at O/D switch.
    Fig 1: O/D Switch Continuity Chart
    G01080007Courtesy of KIA MOTORS AMERICA, INC.
  4. Replace selector lever knob if not as specified.
  5. Check wiring harness for continuity if switch is operating correctly (O/D switch to transaxle control module, O/D switch to body ground).
  6. Connect O/D switch connector.
  7. Install console.
  8. Connect negative battery cable.

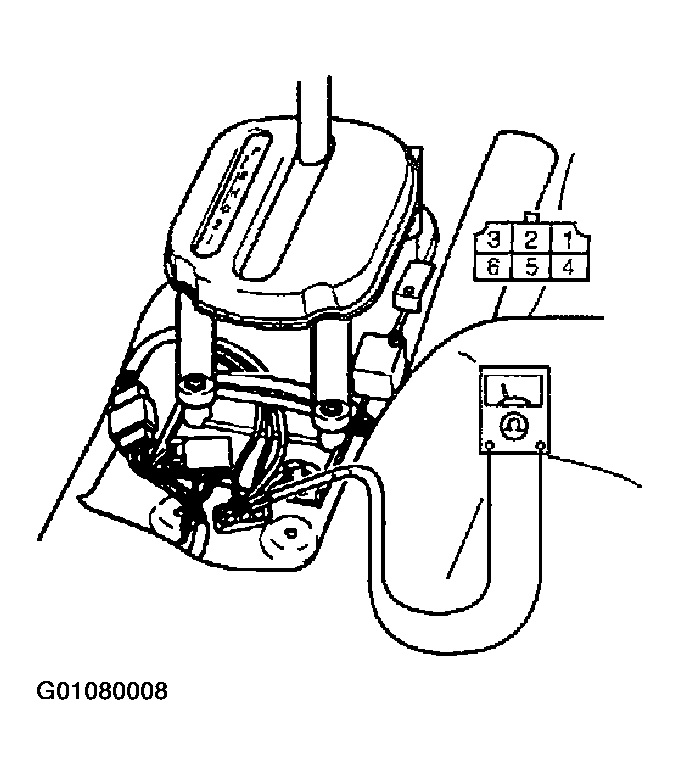

    Fig 2: Testing O/D Switch Voltage
    G01080008Courtesy of KIA MOTORS AMERICA, INC.
