Automatic Transaxle Control System
›
Shift Lever
›
Component
Shift Lever: Component

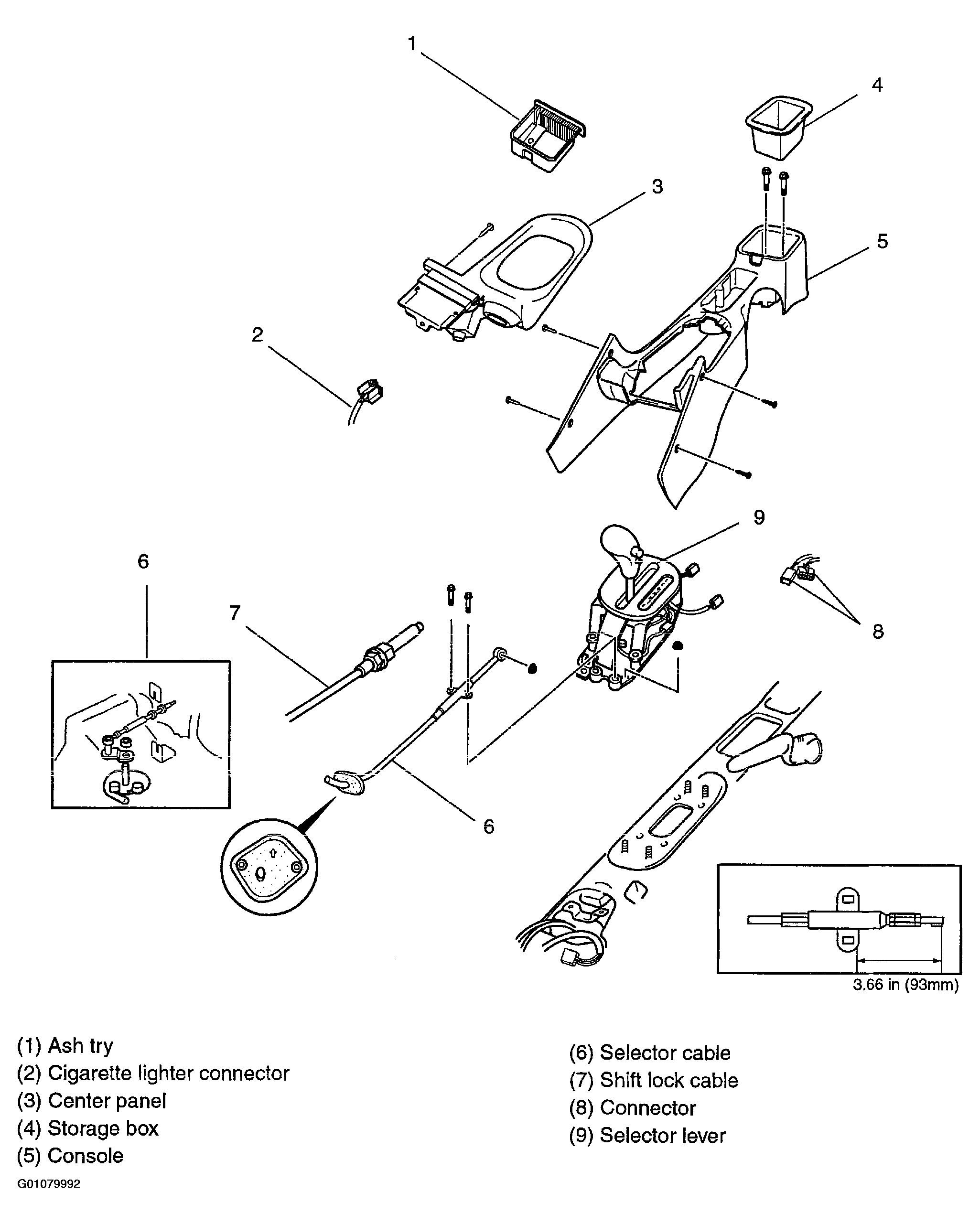

Fig 1: Illustrating Shift Lever Components
Courtesy of KIA MOTORS AMERICA, INC.

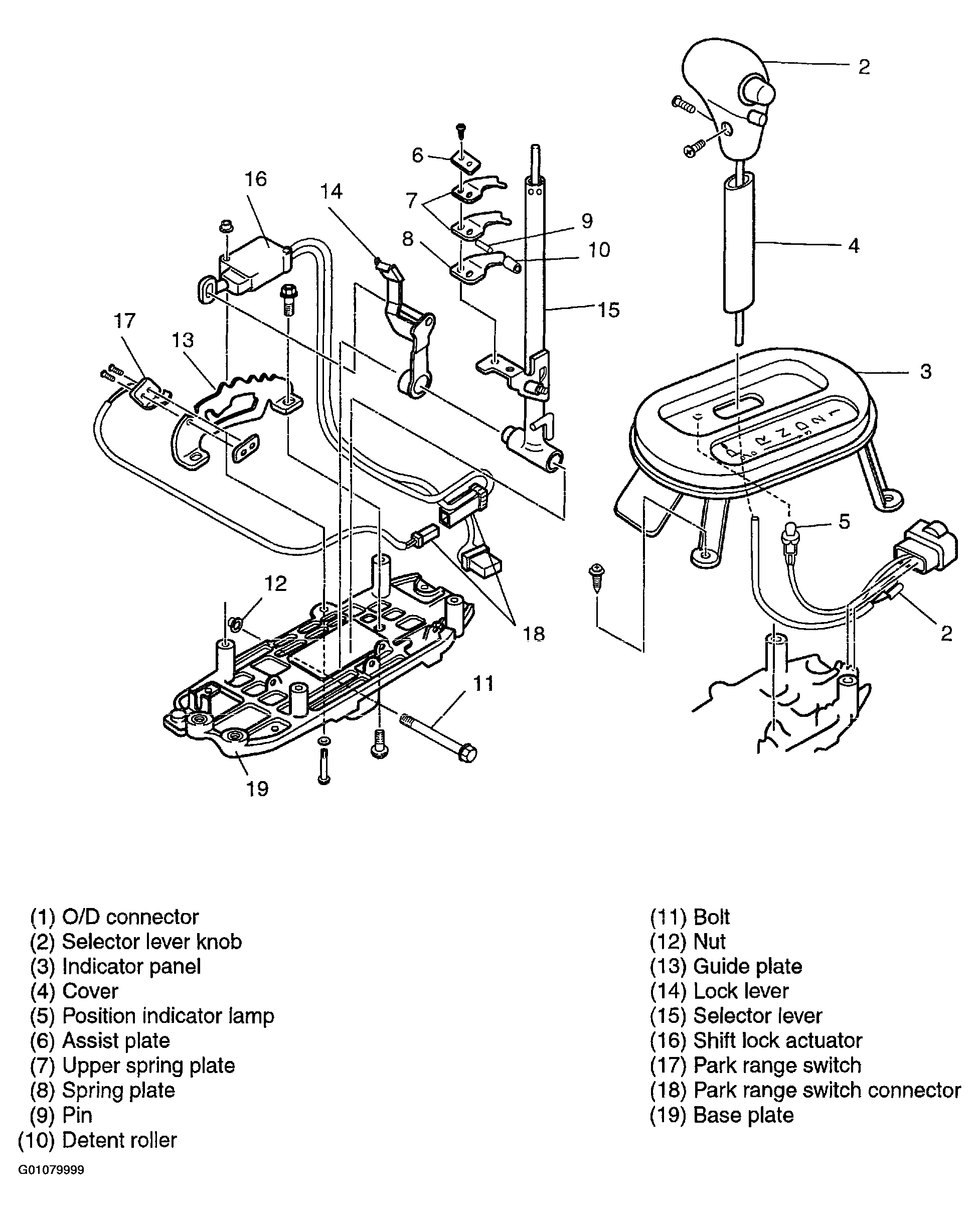

Fig 1: Illustrating Shift Lever Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
