3-4 Clutch: Pre-Inspection

Clutch operation

1. Install SST (0K201 190 016)  as shown, and check clutch operation by applying compressed air.

   Air pressure: 57 psi (392 kPa, 4.0 kg/cm ²  ) maximum

   Fig 1: Testing 3-4 Clutch Operation

   Courtesy of KIA MOTORS AMERICA, INC.

Clutch clearance

1. Measure clearance between snap ring and retaining plate of 3-4 clutch.
2. If clearance is not within specification, replace parts as necessary.

   3-4 clutch clearance:0.051-0.063 in (1.3-1.6 mm)

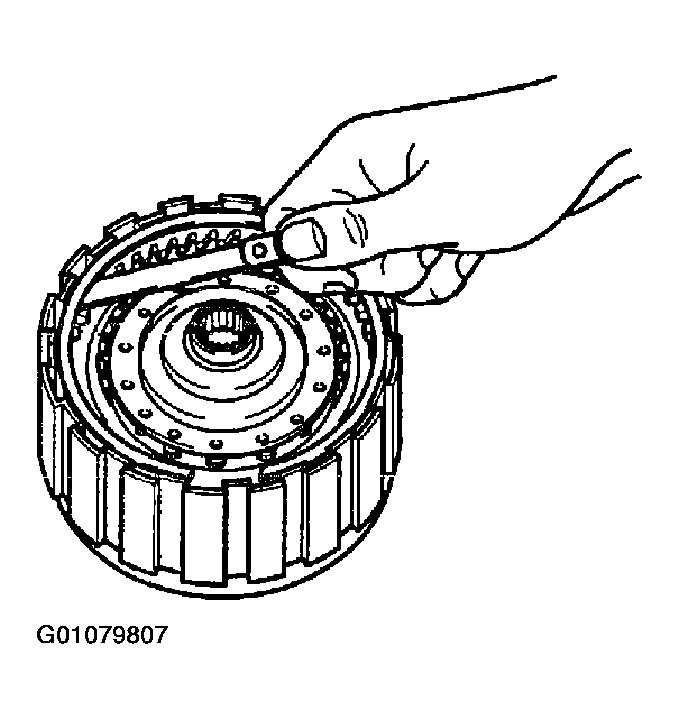

   Fig 2: Measuring 3-4 Clutch Clearance

   Courtesy of KIA MOTORS AMERICA, INC.
