Diagnosis & Overhaul: Components: Accumulators: Reassembly

Installation order:

• 2-3 accumulator: piston - spring - stopper
• N-D accumulator: piston - spring - stopper
• 1-2 accumulator: piston - spring - stopper
• N-R accumulator: spring - piston - stopper

1. Apply ATF to new seal rings and install them onto accumulator pistons.

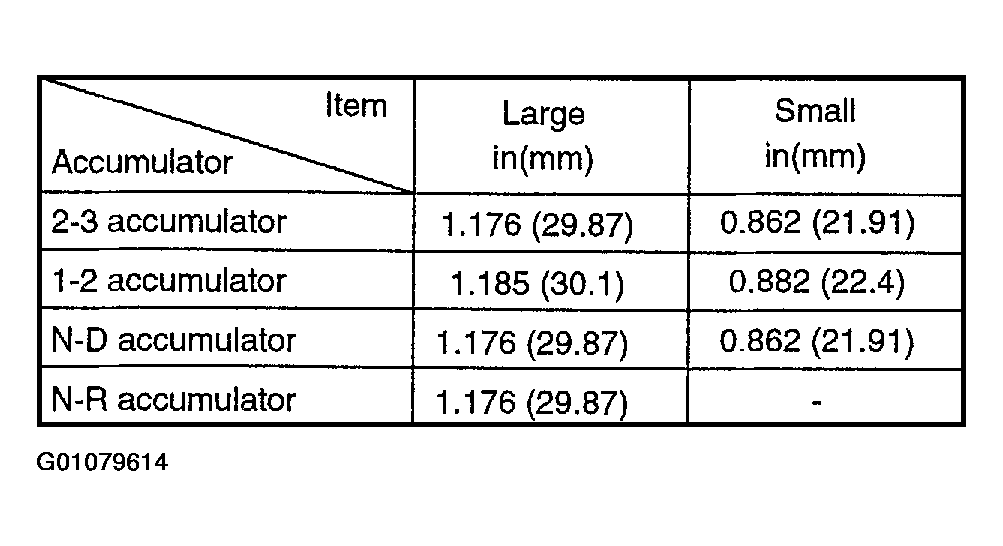

   Fig 1: Installing Piston, Ring & Stoppers

   Courtesy of KIA MOTORS AMERICA, INC.
2. Install accumulator pistons and springs.
3. Install stopper and snap ring.
   Fig 2: Locating Piston, Ring & Stoppers Assemblies

   Courtesy of KIA MOTORS AMERICA, INC.
