Shift-Lock Actuator

Terminal voltage continuity inspection

1. Remove console.
   NOTE: Disconnect shift-lock actuator connector when checking continuity between terminal 2 (harness side) and ground.
2. Shift selector lever to P range, and check terminal voltages and continuity, referring to chart below.
3. If not as specified, repair wire harness and/or replace shift-lock actuator.
   Fig 1: Illustrating Shift-Lock Actuator & Park Range Switch Connector Pinouts

   Courtesy of KIA MOTORS AMERICA, INC.
4. Install console.
5. Verify correct operation of shift-lock system.
   Fig 2: Testing Shift-Lock Actuator Operation

   Courtesy of KIA MOTORS AMERICA, INC.

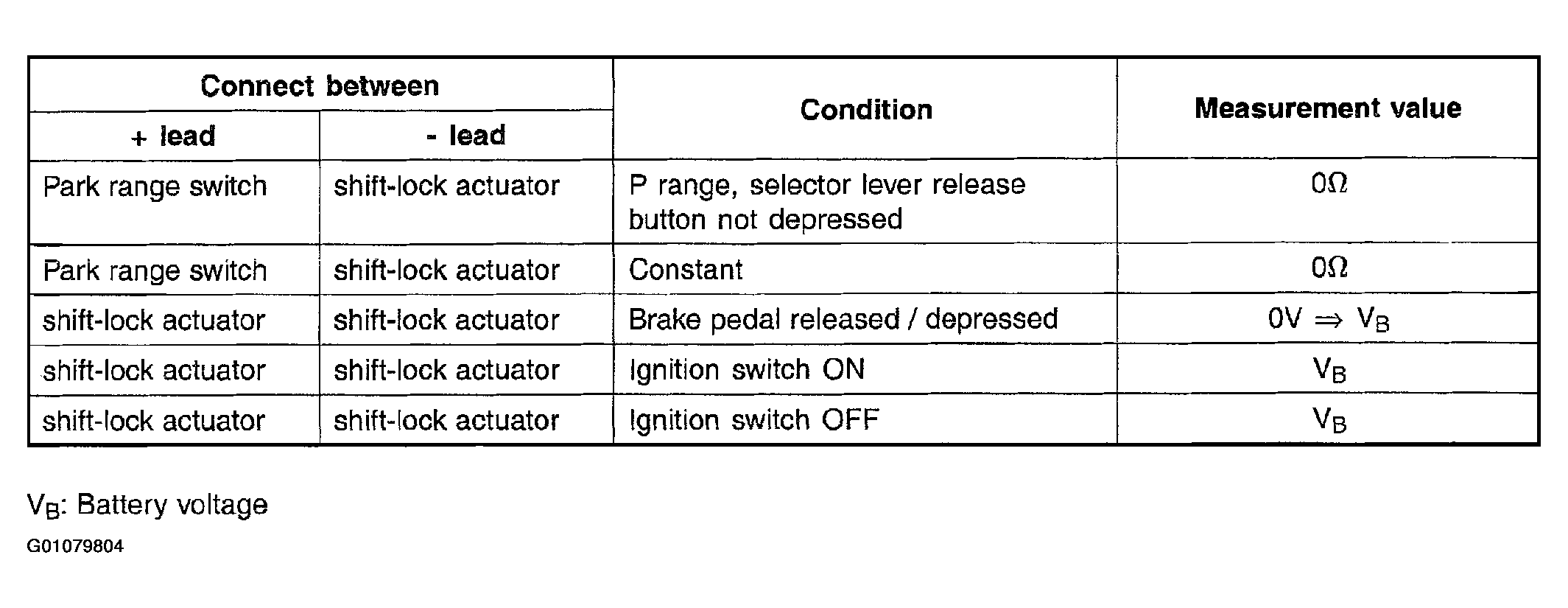

   Fig 3: Illustrating Shift-Lock Actuator & Park Range Switch Continuity Chart

   Courtesy of KIA MOTORS AMERICA, INC.
