Brake Band: Disassembly

Disassemble in order shown in figure.

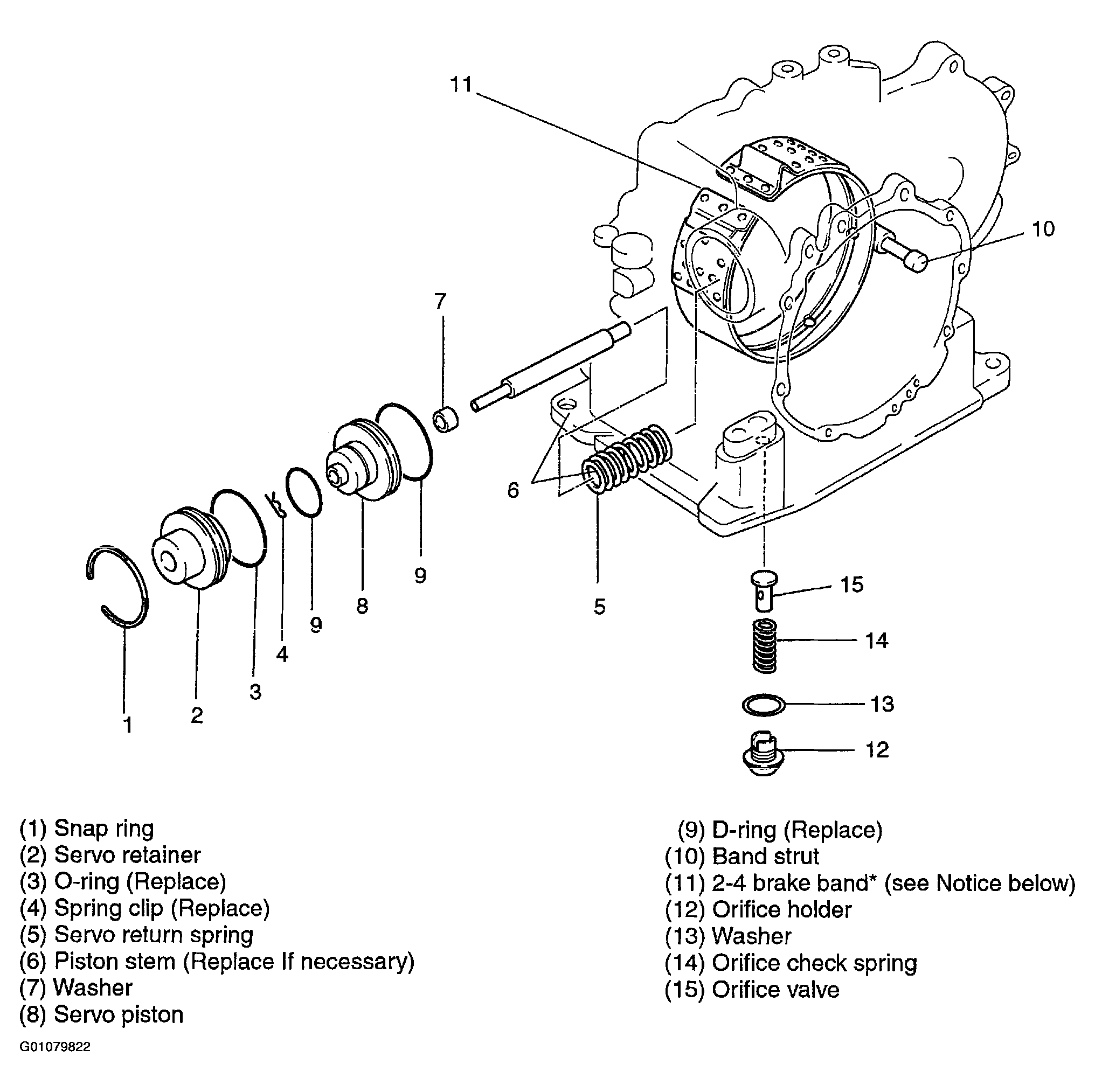

Fig 1: Illustrating Brake Band Disassembly Order
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Use a piece of wire to secure 2-4 brake band so that it is not damaged by being allowed to fully expand.
