Brake Band: Inspection

2-4 Brake band

1. Check 2-4 brake band for wear and burnt friction material.

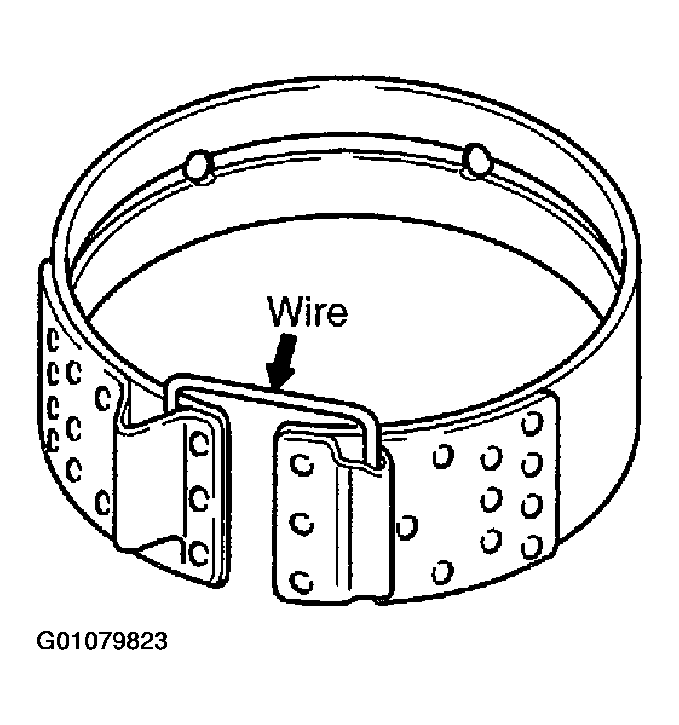

   Fig 1: Checking 2-4 Brake Band For Wear

   Courtesy of KIA MOTORS AMERICA, INC.

Servo return spring

1. Measure servo return spring free length and check for deformation.

   Free length: 1.703 in (43.25 mm)

2. If not within specification, replace servo return spring.

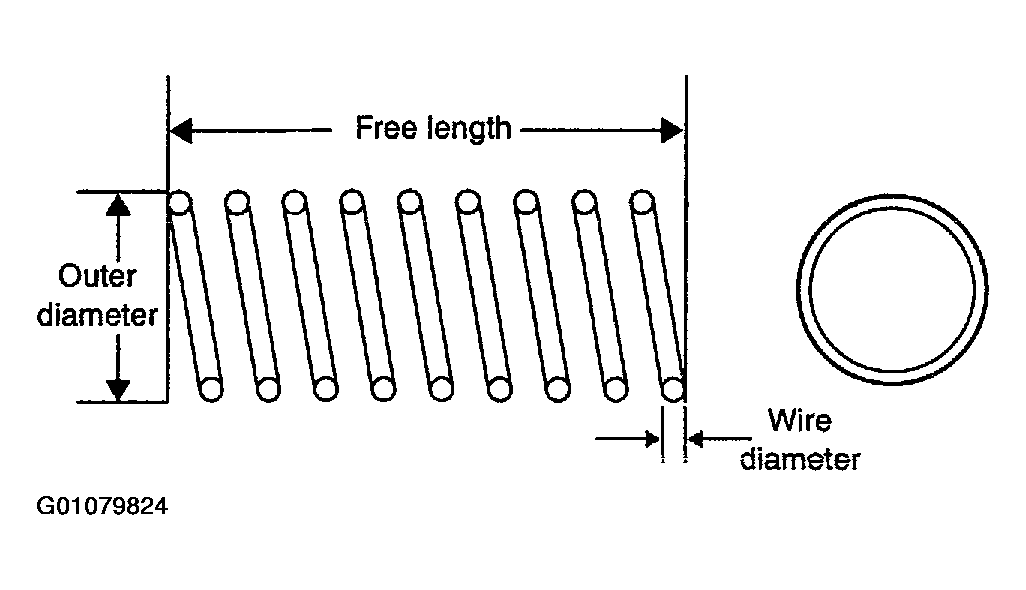

   Fig 2: Measuring Servo Return Spring Free Length

   Courtesy of KIA MOTORS AMERICA, INC.

Orifice check spring

1. Measure spring free length.
   Fig 3: Orifice Check Spring Length Chart

   Courtesy of KIA MOTORS AMERICA, INC.
2. If not as specified, replace spring.
   Fig 4: Measuring Orifice Check Spring Free Length

   Courtesy of KIA MOTORS AMERICA, INC.
