Brake Band: Reassembly

NOTE: Install spring exactly in direction shown.

Install orifice valve, orifice check spring and orifice holder as shown.

Fig 1: Assembling Orifice Valve, Orifice Check Spring And Orifice Holder
Courtesy of KIA MOTORS AMERICA, INC.
Install orifice assembly and washer to transaxle case.
Tighten orifice assembly using a hexagonal wrench.
Tightening torque: 29-39 lb.ft (40-53 N.m,4.0-5.0 kg/cm ² )
Install band strut.
Install 2-4 brake band.

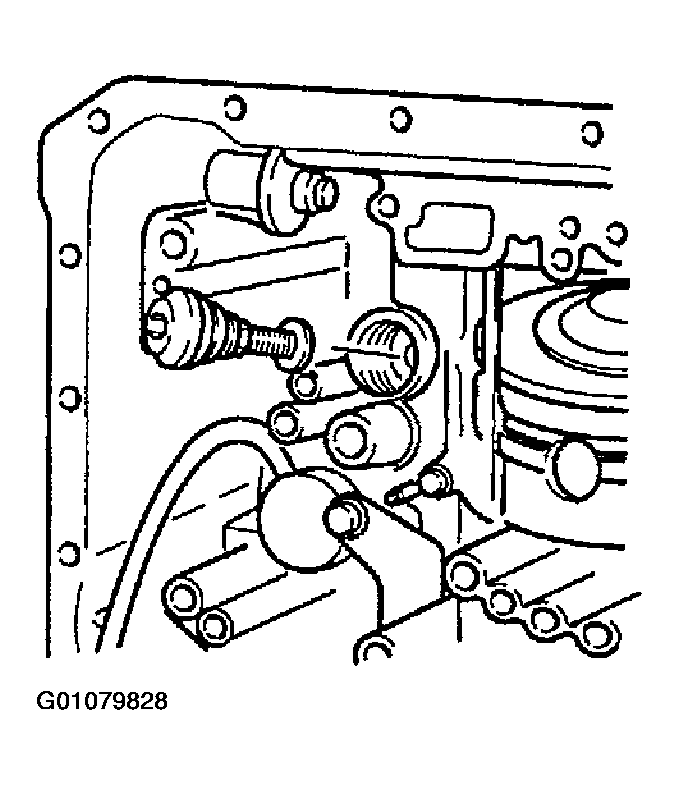

Fig 2: Installing Orifice Valve, Orifice Check Spring And Orifice Holder
Courtesy of KIA MOTORS AMERICA, INC.
Apply ATF to new D-rings and install them to servo piston.
D-ring inner diameter:

Piston stem side: 2.303 in (58.5 mm)

Servo retainer side: 1.157 in (29.4 mm)

Fig 3: Installing Servo Piston D-Rings
Courtesy of KIA MOTORS AMERICA, INC.
Insert piston stem into servo piston and secure it with a new spring clip.

Fig 4: Inserting Piston Stem Into Servo Piston
Courtesy of KIA MOTORS AMERICA, INC.
Apply ATF to new O-ring and install it to servo retainer.
O-ring inner diameter: 2.587 in (65.7 mm)

Fig 5: Installing Servo Retainer O-Ring
Courtesy of KIA MOTORS AMERICA, INC.
Assemble servo piston and servo retainer.
NOTE: Do not install servo piston and retainer into transaxle case at this time.
Install snap ring.

Fig 6: Assembling Servo Piston And Servo Retainer
Courtesy of KIA MOTORS AMERICA, INC.
