Low And Reverse Brake: Pre-Inspection

Low and reverse brake operation

1. Check low and reverse brake operation by applying compressed air as shown.

   Air pressure: 57 psi (392 kPa, 4.0 kg/cm ²  ) maximum

   Fig 1: Testing Low And Reverse Brake Operation

   Courtesy of KIA MOTORS AMERICA, INC.

Brake clearance

1. Measure clearance between retaining plate and snap ring.
2. If not as specified, replace parts as necessary.

   Low and reverse brake clearance: 0.083-0.094 in (2.1-2.4 mm)

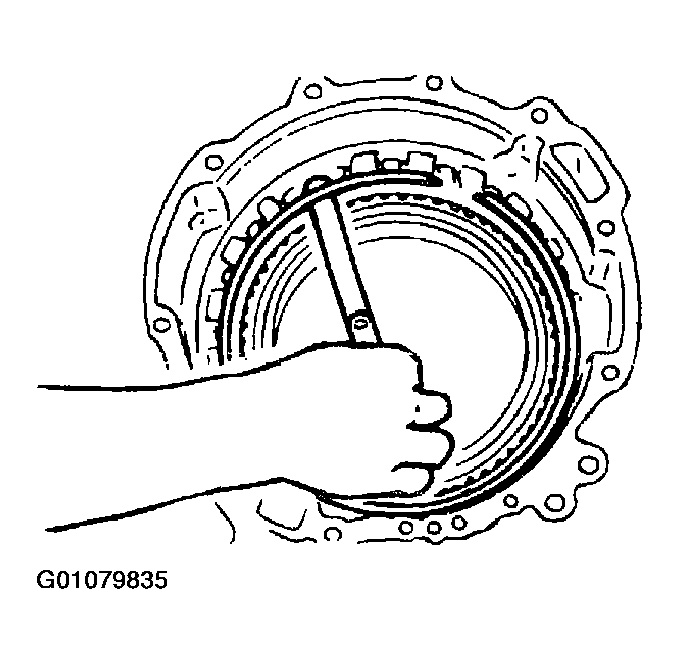

   Fig 2: Measuring Clearance Between Retaining Plate And Snap Ring

   Courtesy of KIA MOTORS AMERICA, INC.
