Oil Pump: Component

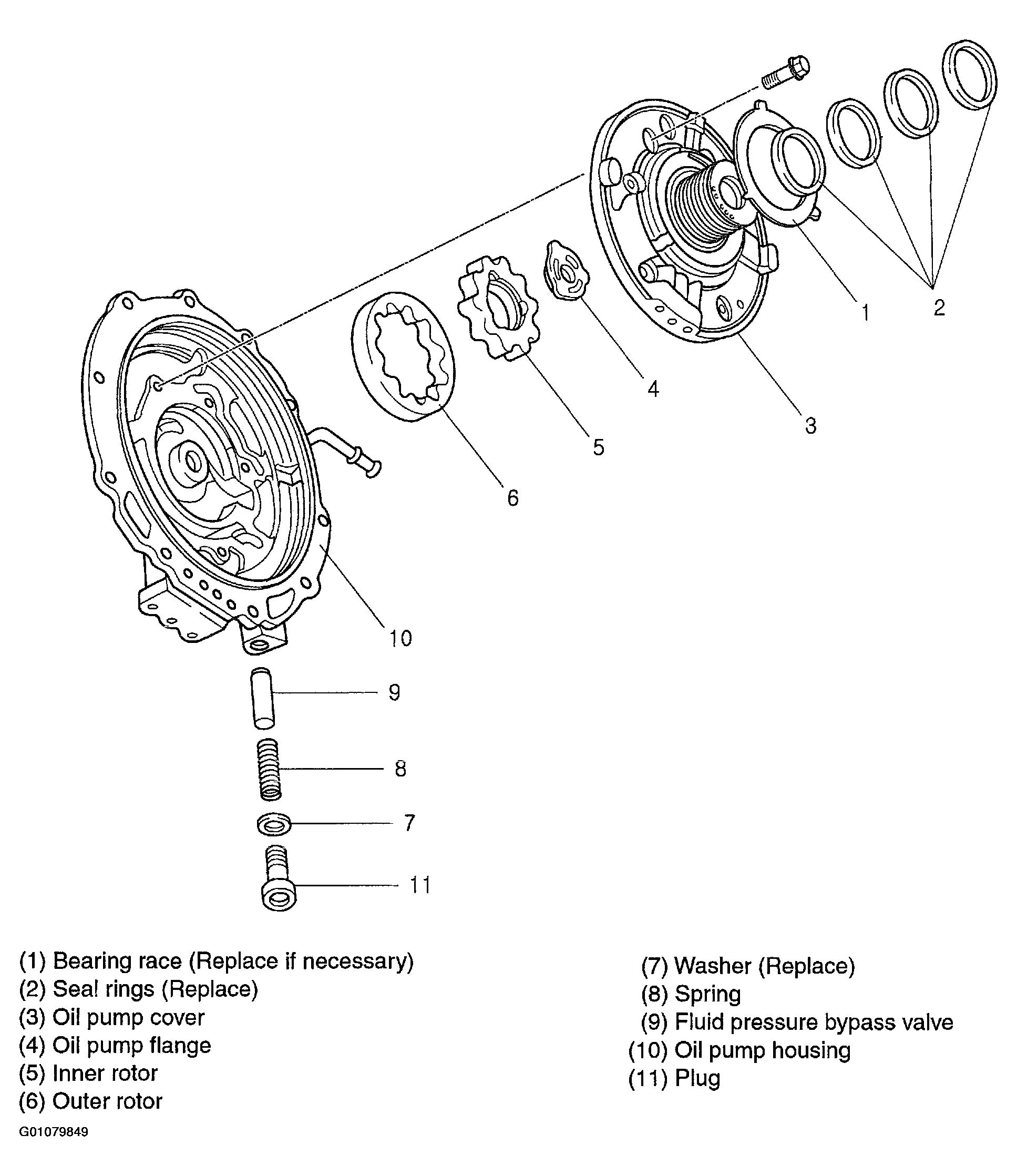

Fig 1: Illustrating Oil Pump Components
G01079849Courtesy of KIA MOTORS AMERICA, INC.
