Disassembly & Reassembly: Disassembly: Components

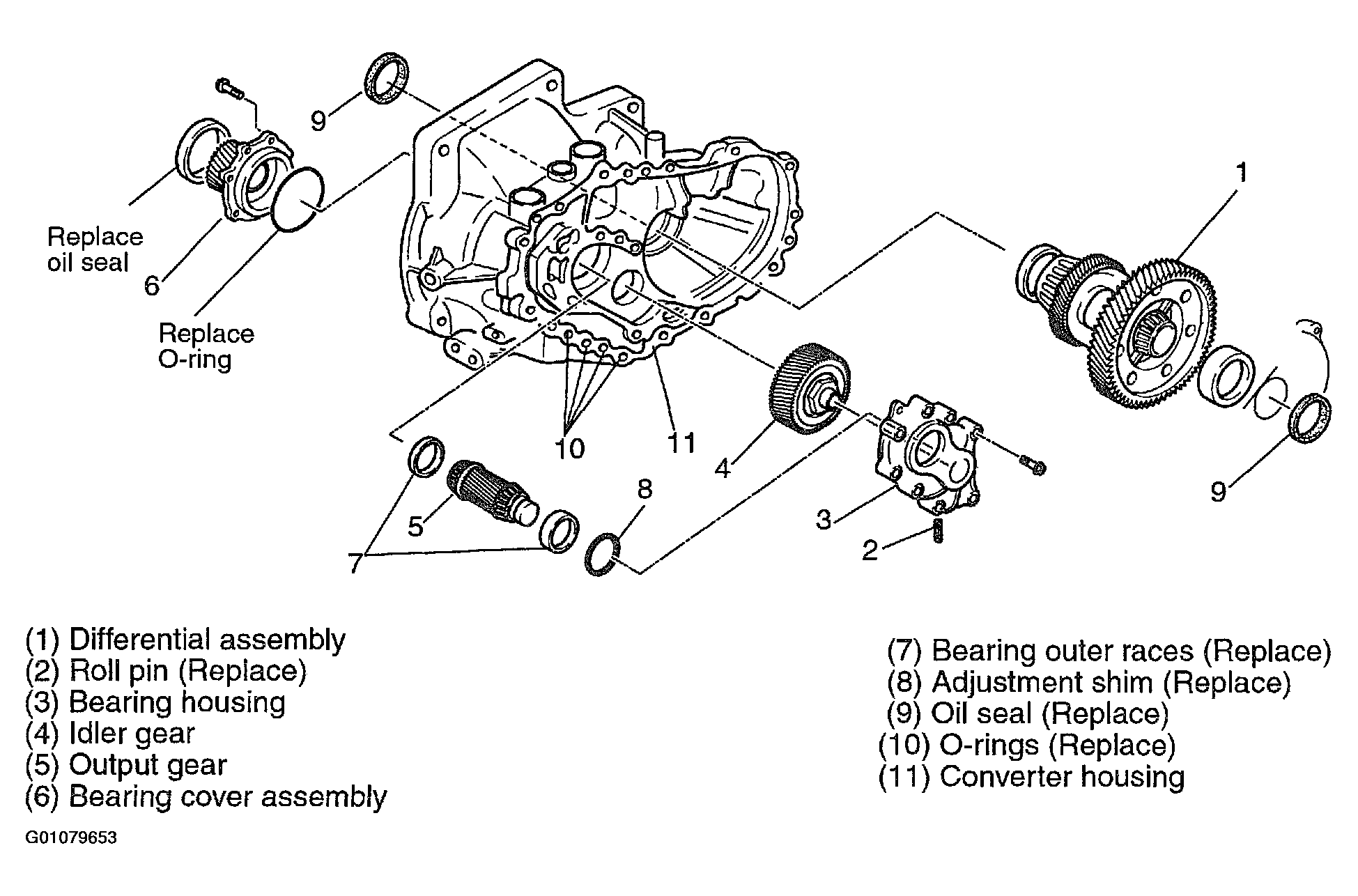

Fig 1: Illustrating Major Transaxle Components (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

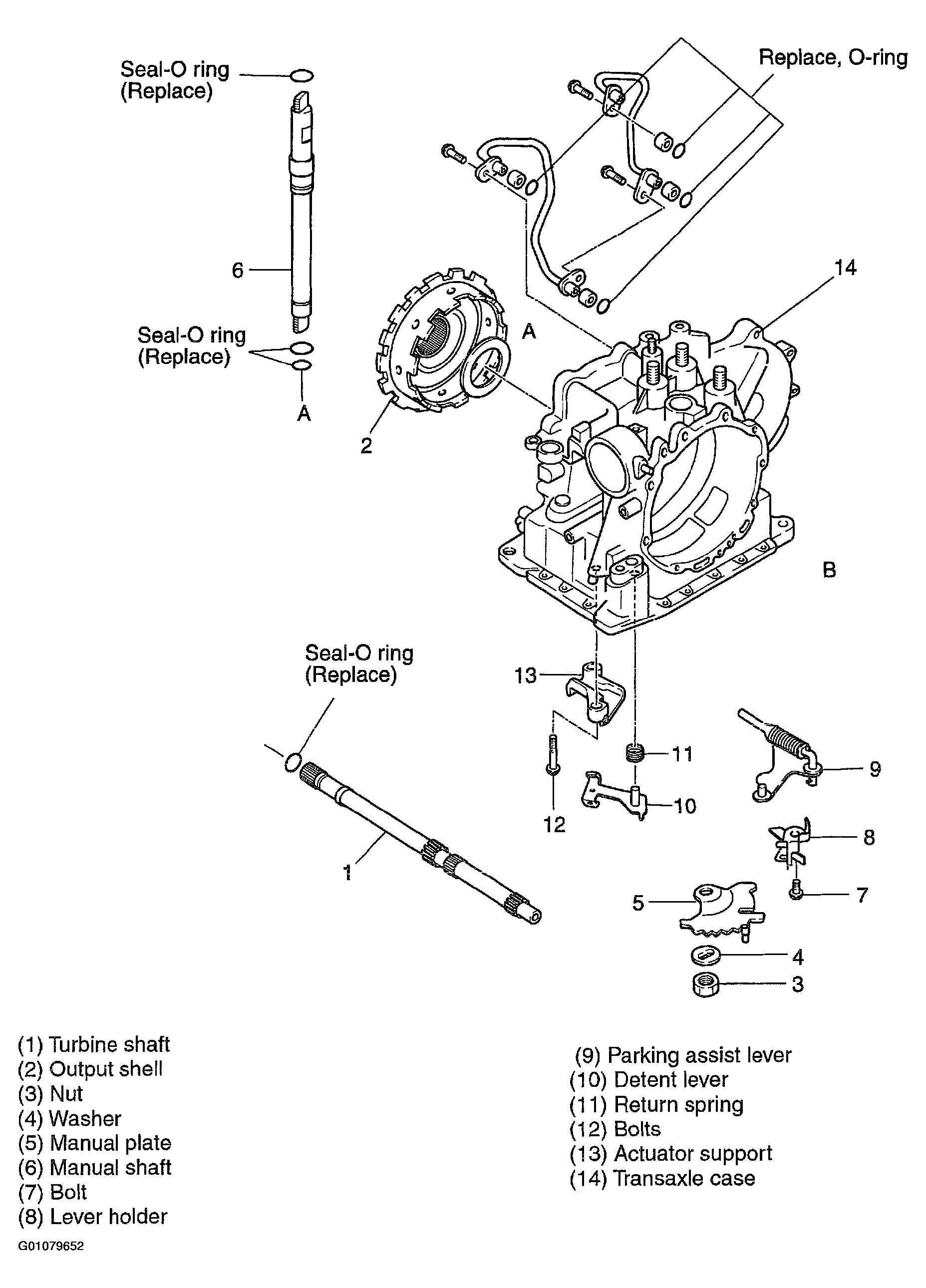

Fig 2: Illustrating Major Transaxle Components (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

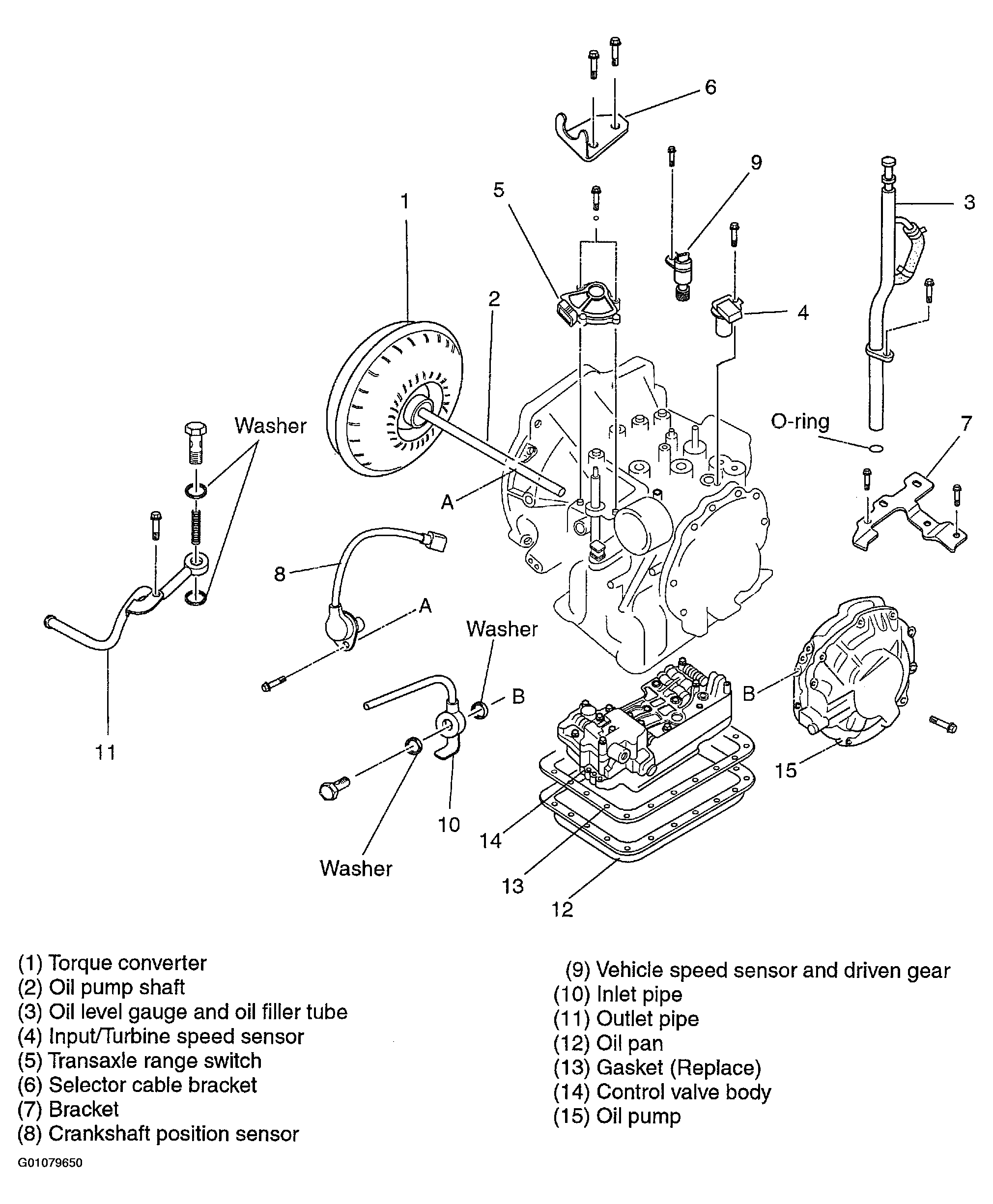

Fig 3: Illustrating Major Transaxle Components (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

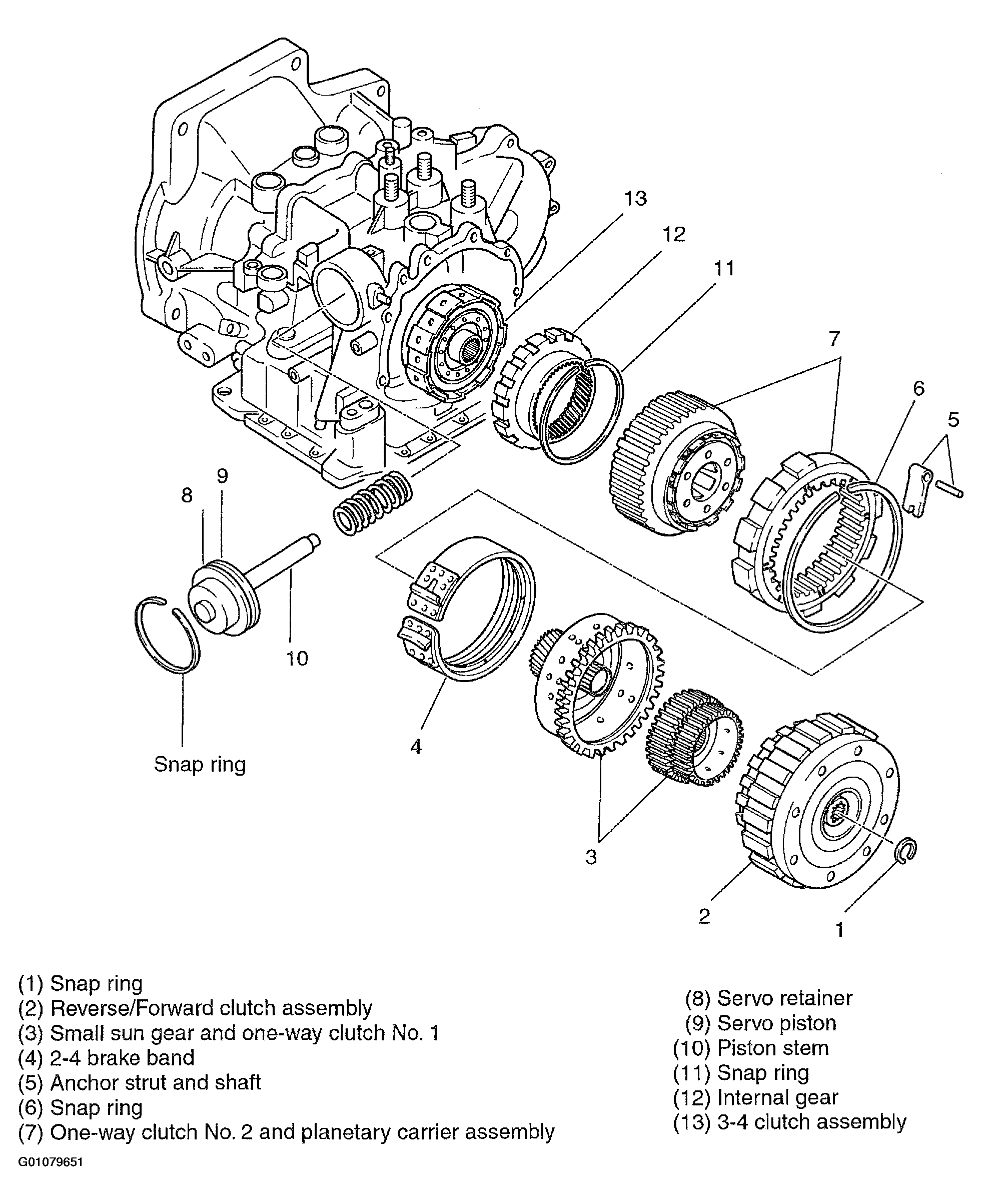

Fig 4: Illustrating Major Transaxle Components (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
