Troubleshooting Guide

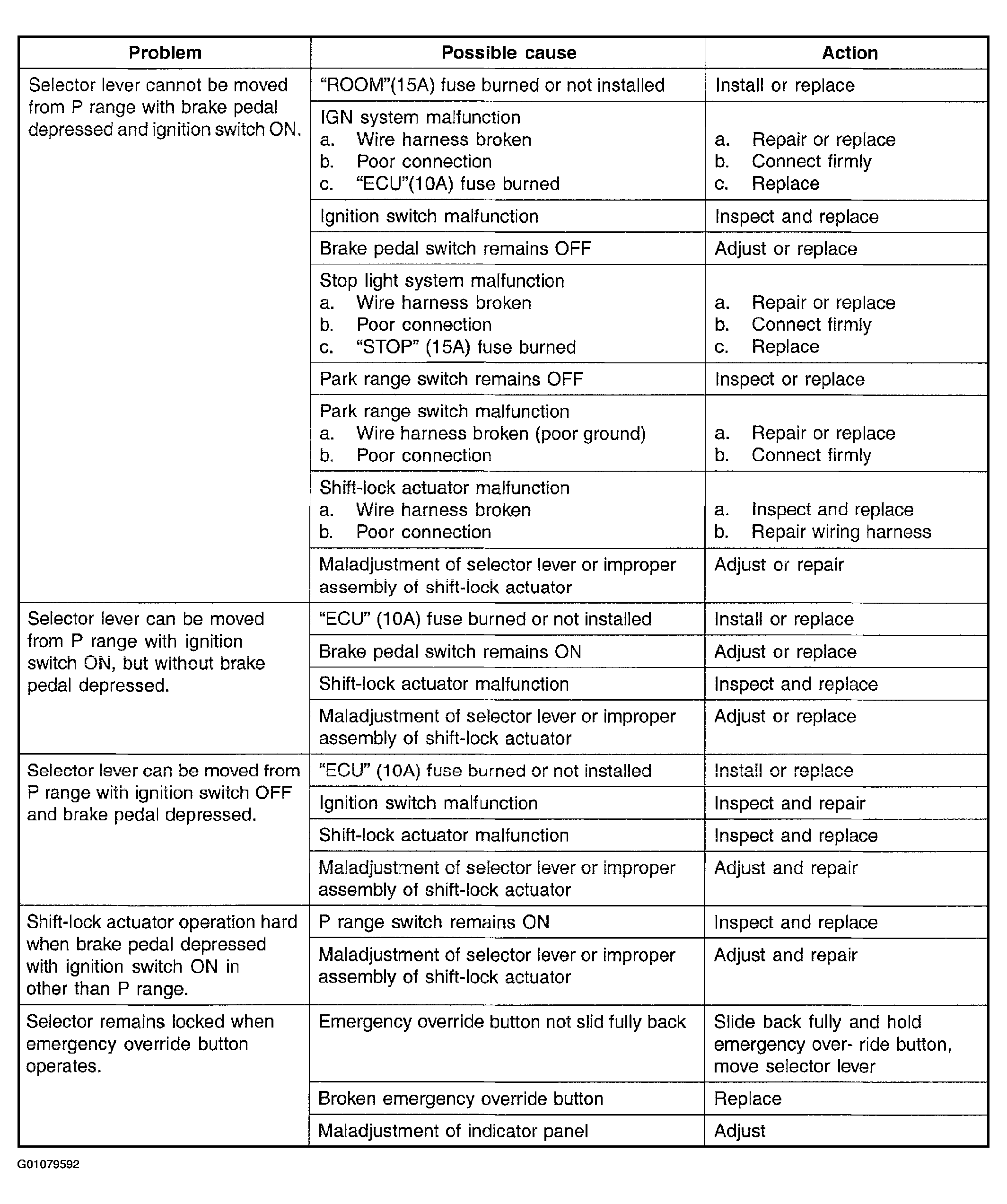

Fig 1: Selector Lever Troubleshooting Guide (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

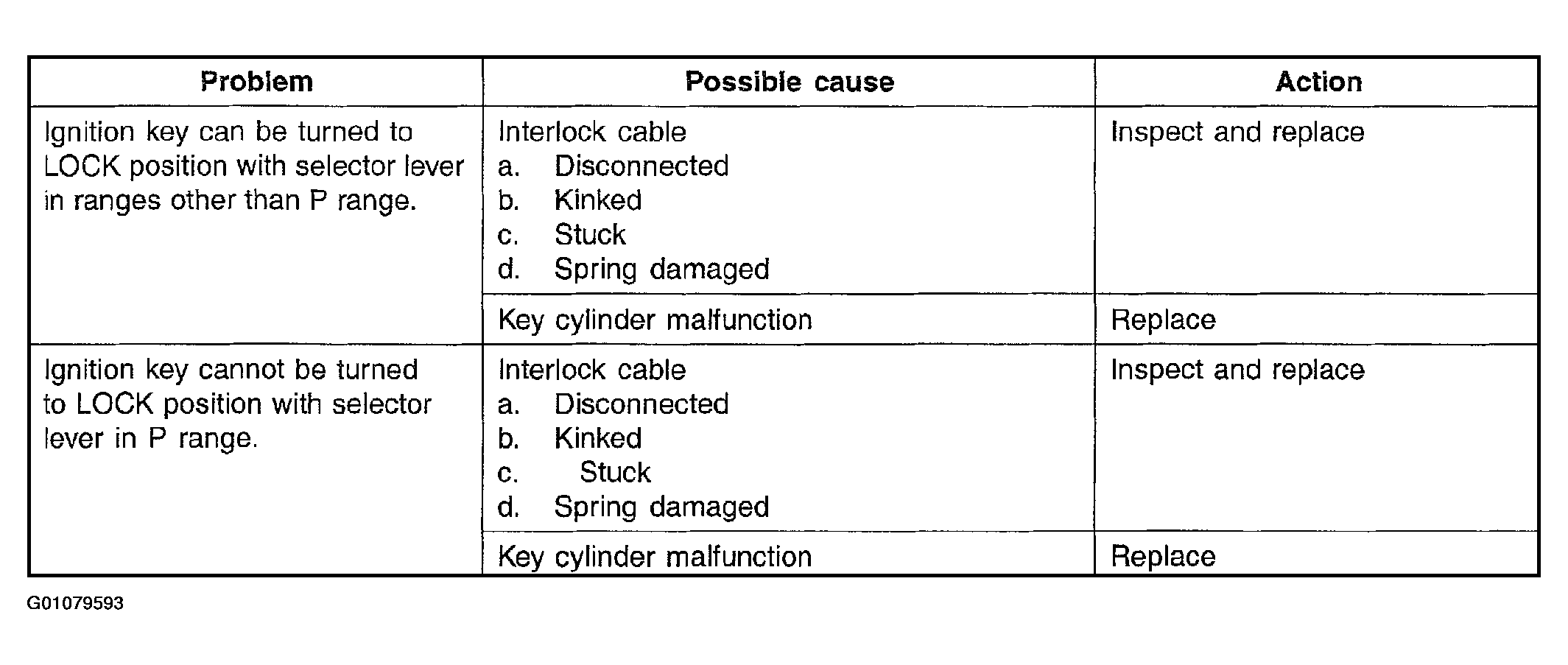

Fig 2: Selector Lever Troubleshooting Guide (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
