Time Lag Test: Procedure

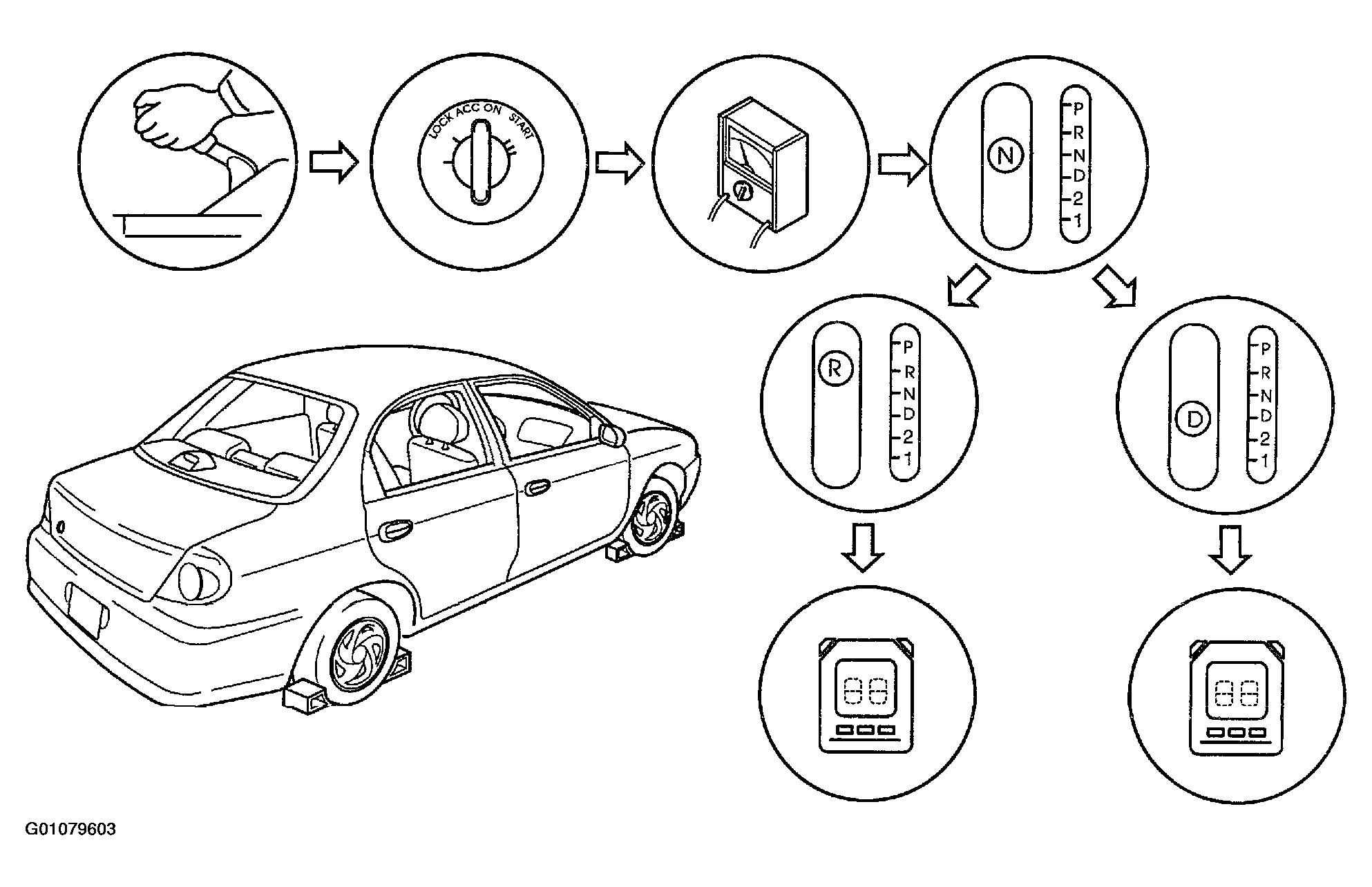

Fig 1: Illustrating Time Lag Test Preparation

Courtesy of KIA MOTORS AMERICA, INC.

1. Start engine.
2. Check idle speed in P range.

   Idle speed: 750-850 rpm (with parking brake applied)

3. Shift from N range to D range.
4. Use a stopwatch to measure time it takes from shifting until shock is felt.
5. Shift selector to N range and run engine at idle speed for at least one minute.
   NOTE: Make three measurements for each test and take average value.
6. Perform test for following shifts in same manner.
   1. N to D range
   2. N to D range (O/D OFF MODE)
   3. N to R range

   Time lag: N to D range 0.5-0.6 seconds

   Time lag: N to R range 0.6-0.7 seconds

Evaluation of time lag test

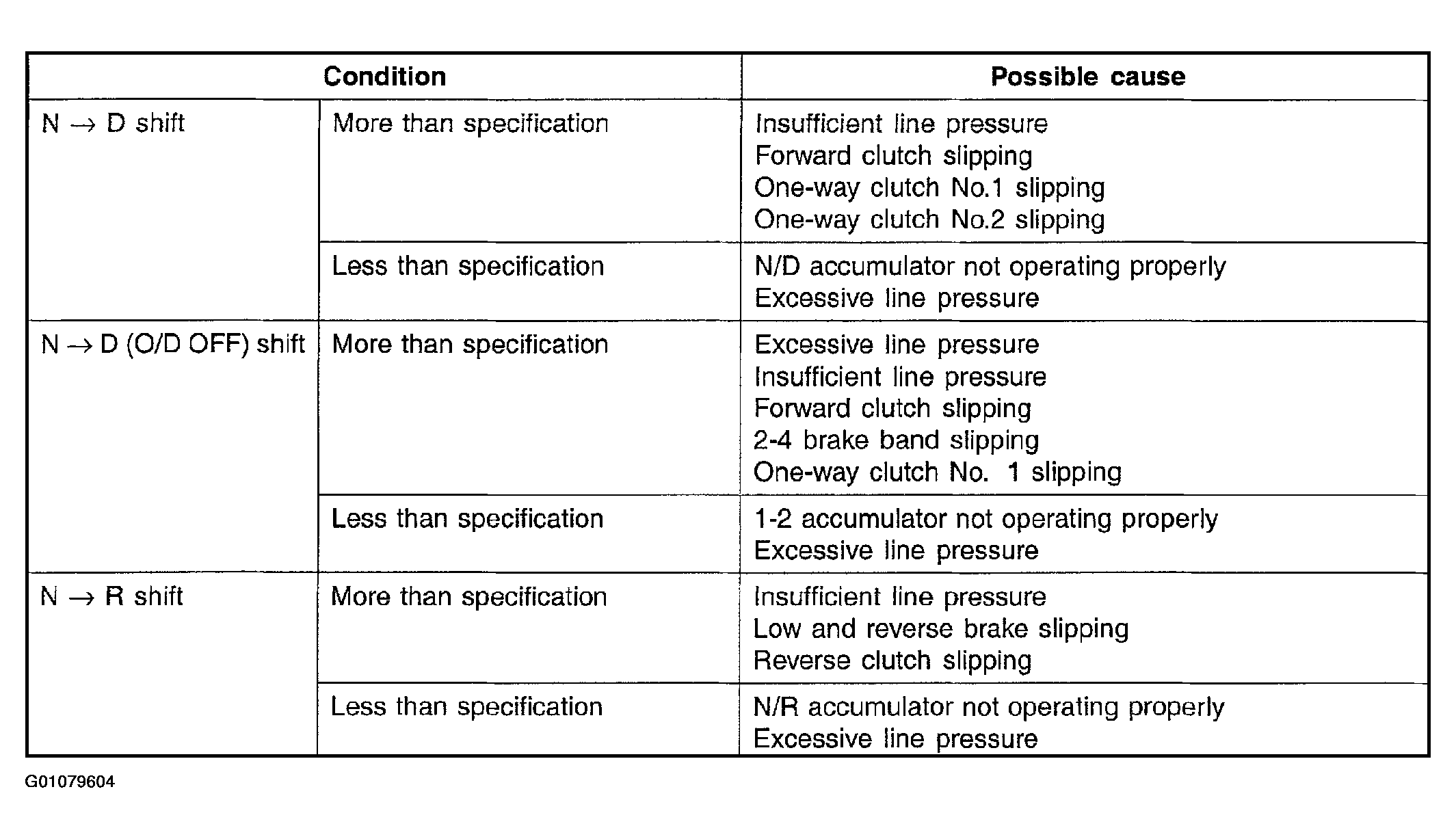

Fig 2: Time Lag Test Possible Cause Chart

Courtesy of KIA MOTORS AMERICA, INC.
