Troubleshooting Chart

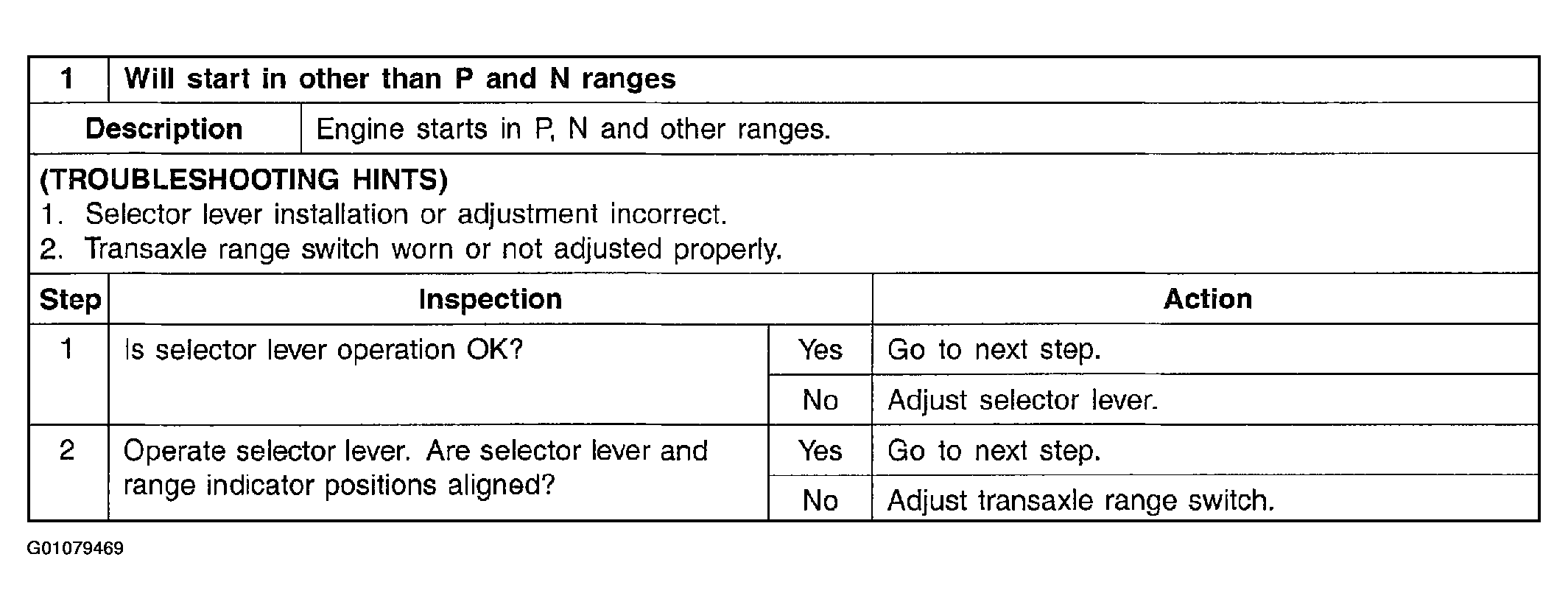

Fig 1: Troubleshooting Example Chart

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Read the following as a guide to understanding chart in Fig 1 .

Description: Further describes symptom. Confirm that chart addresses actual symptom before beginning troubleshooting.

Troubleshooting hints: This describes possible point of malfunction.

Step: This shows order of troubleshooting. Proceed with troubleshooting as indicated.

Inspection: This describes an inspection to quickly determine malfunction of parts.

Action: This recommends appropriate action to take as a result (Yes/No) of INSPECTION.
